Full Set of Toilet Tissue Paper Making Cutting Packing Machine Production Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paper Tube Core Making Machine PriceNegotiableMOQ: 1 -
Automatic Converting Small Toilet Tissue Roll MachineNegotiableMOQ: 1
-
Low Price Paper Pipe Core Making Machine CENegotiableMOQ: 1
-
How to Start a Toilet Tissue Bathroom Paper Manufacturing Machine BusinessNegotiableMOQ: 1
-
Semi Automatic Kraft Paper Roll Slitting and Rewinding MachineNegotiableMOQ: 1
Products Description
Full set of toilet tissue paper making cutting packing machine production line XY-TQ-A-D
Product Application

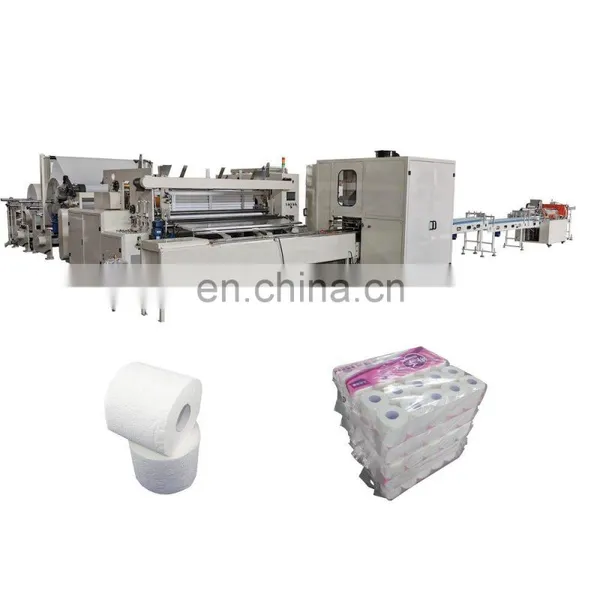

This production line consists of Automatic Toilet Paper Roll Rewinding Machine, Double Channel Log Saw Machine and Semi-Automatic
Multiple Rolls Packing Machine. It converts the jumbo roll into the finished rolls. The whole line work smoothly and run stable,
saving the labor cost and reducing the labor strength, it's best choice for the producing hygienic paper products.
Functions and Features
1. This machine is used for making toilet paper roll and kitchen towel . Perforation Distance is adjustable, meeting different
requirements.
2. Adopt two set steel to rubber embossment rollers
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm
tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, human interface operation, data set and parametric fault
shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
9. Adopt flexography printing, accurate color register, pattern is clear.( can be specified)
10. Customer can order the lamination unit which makes two layers stick together.
Video Link: https://youtu.be/qTmSFLmD7pY

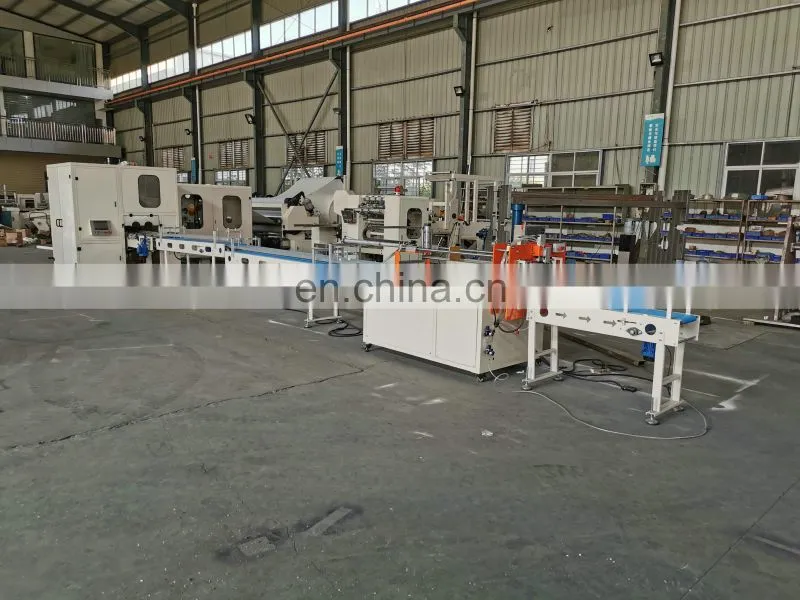

This production line consists of Automatic Toilet Paper Roll Rewinding Machine, Double Channel Log Saw Machine and Semi-Automatic
Multiple Rolls Packing Machine. It converts the jumbo roll into the finished rolls. The whole line work smoothly and run stable,
saving the labor cost and reducing the labor strength, it's best choice for the producing hygienic paper products.
Functions and Features
1. This machine is used for making toilet paper roll and kitchen towel . Perforation Distance is adjustable, meeting different
requirements.
2. Adopt two set steel to rubber embossment rollers
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm
tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, human interface operation, data set and parametric fault
shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
9. Adopt flexography printing, accurate color register, pattern is clear.( can be specified)
10. Customer can order the lamination unit which makes two layers stick together.
Video Link: https://youtu.be/qTmSFLmD7pY
Automatic maxi roll toilet paper machine |
||||||||
Jumbo Roll Max Width |
2800mm (Other size can be specified) |
|||||||
Jumbo Roll Diameter |
Φ1100mm(Other size can be specified) |
|||||||
Jumbo Roll Inner Diameter |
3inches(76.2mm) (Other size can be specified) |
|||||||
Perforation Distance |
4 anvil Blades(115mm)(Other size can be specified) |
|||||||
Finished Product Diameter |
Φ80~φ280mm |
|||||||
Finished Product Core Diameter |
φ38~φ76mm |
|||||||
Production Speed |
0~230m/min |
|||||||
Program Controller |
PLC(DELTA OR INVT need to confirm) |
|||||||
Unwind Stands |
1 or 3 Stands(Need to be specified) |
|||||||
Pneumatic System |
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
|||||||
Main Power |
14KW 380V 50HZ |
|||||||
Dimension |
7000*4000*1900(L*W*H) |
|||||||
Weight |
About 7T |
|||||||
Edge-Line Embossing |
Steel to steel (Pneumatic Control) |
|||||||
Full Embossment |
Steel to rubber |
|||||||
Details Images

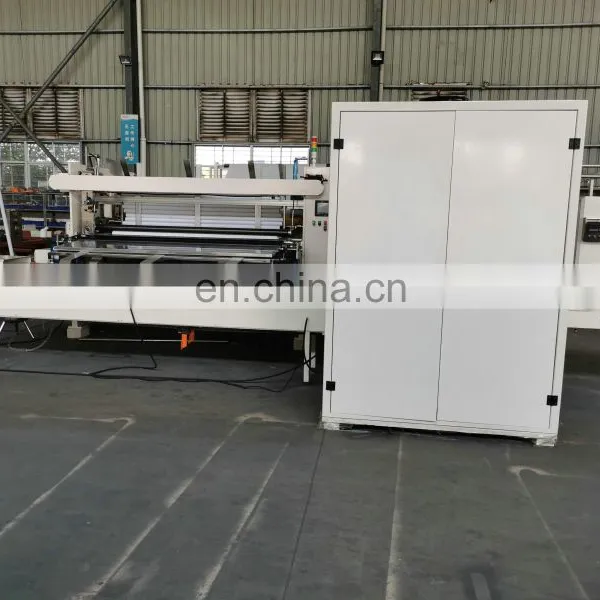

Automatic rewinding machine
1. The whole structure is wall-type.
2. Adopts international advanced PLC programmable controlling technique
3. Adopt jogging switches for wearing the paper, easy and safe to operate
Video Link:
https://youtu.be/pKEVQIgnMn0
XY-AI-280 Automatic log saw cutting machine
1. Automatic blade grinding system, quickly setting parameter on PLC..
2. Two Logs are feeding automatically, cutting then pushing.
3. Shortcuts can be kicked off from the quality products.
4. Equipped with two sets of clamping channels, easy to change.
2. Two Logs are feeding automatically, cutting then pushing.
3. Shortcuts can be kicked off from the quality products.
4. Equipped with two sets of clamping channels, easy to change.
Video Link: https://youtu.be/fHU6REk5ngU
Semi auto toilet paper packing machine
1. Conveyor belt automatic conveying, automatic stacking, paper feeding, bagging, sealing and cutting.
2. Adopt PLC computer programming control, double frequency control, touch-screen display parameters.
3. Packing speed: 4-6 bags/min
Video Link: https://youtu.be/ssf_-fcuCv8
2. Adopt PLC computer programming control, double frequency control, touch-screen display parameters.
3. Packing speed: 4-6 bags/min
Video Link: https://youtu.be/ssf_-fcuCv8
