Hot Selling Automatic Rewinding Toilet Tissue Converting Machine Production Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Investment Toilet Tissue Paper Machine Production LineNegotiableMOQ: 1 -
High Quality and Best Price Automatic Toilet Paper Tube Core Making MachineNegotiableMOQ: 1
-
Semi Automatic Toilet Tissue Paper Soft Package Wrapping Machine for SaleNegotiableMOQ: 1
-
Easy Operation Manual Multi Rolls Toilet Tissue Paper Wrapping MachineNegotiableMOQ: 1
-
Fully Automatic Toilet Paper Single Roll Packing MachineryNegotiableMOQ: 1
Products Description
Hot selling automatic rewinding toilet tissue converting machine production line XY-TQ-A-A
Product Application

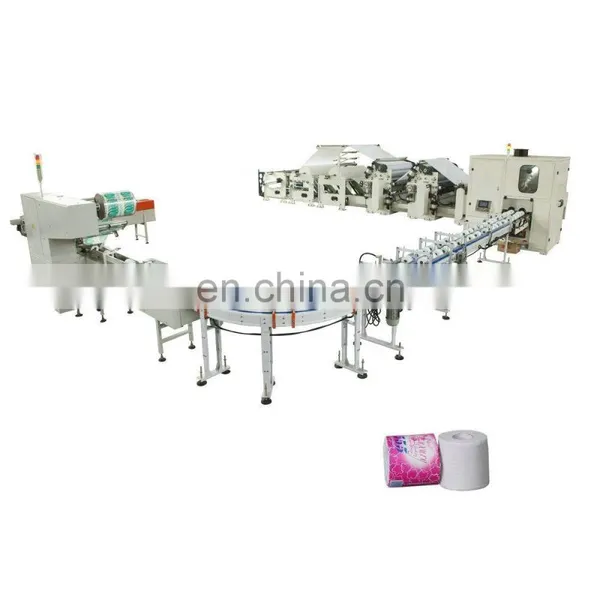

This production line consists of Fully Automatic Rewinding Machine/Color Glue Lamination. Log Saw Machine and Automatic Single
Rolls Packing Machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor
cost and reducing the labor strength. It's best choice for the producing hygienic paper products.
Functions and Features
1. The machine is professional in making toilet paper rolls and color glue lamination rolls with wallboard type structure, the
machine can working in stable without any noise.
2.This machine is used for making toilet paper roll and kitchen towel paper. Perforation Distance is adjustable, meeting different
requirements.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
9. Individual wallboard type color glue lamination device, the structure is consist of two set embossing roller steel to rubber
and lamination device.
Video Link: https://youtu.be/fHU6REk5ngU
This production line consists of Fully Automatic Rewinding Machine/Color Glue Lamination. Log Saw Machine and Automatic Single
Rolls Packing Machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor
cost and reducing the labor strength. It's best choice for the producing hygienic paper products.
Functions and Features
1. The machine is professional in making toilet paper rolls and color glue lamination rolls with wallboard type structure, the
machine can working in stable without any noise.
2.This machine is used for making toilet paper roll and kitchen towel paper. Perforation Distance is adjustable, meeting different
requirements.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so
reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric
fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
9. Individual wallboard type color glue lamination device, the structure is consist of two set embossing roller steel to rubber
and lamination device.
Video Link: https://youtu.be/fHU6REk5ngU
Automatic maxi roll toilet paper machine |
||||||||
Jumbo Roll Max Width |
2800mm (Other size can be specified) |
|||||||
Jumbo Roll Diameter |
Φ1100mm(Other size can be specified) |
|||||||
Jumbo Roll Inner Diameter |
3inches(76.2mm) (Other size can be specified) |
|||||||
Perforation Distance |
4 anvil Blades(115mm)(Other size can be specified) |
|||||||
Finished Product Diameter |
Φ80~φ280mm |
|||||||
Finished Product Core Diameter |
φ38~φ76mm |
|||||||
Production Speed |
0~230m/min |
|||||||
Program Controller |
PLC(DELTA OR INVT need to confirm) |
|||||||
Unwind Stands |
1 or 3 Stands(Need to be specified) |
|||||||
Pneumatic System |
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
|||||||
Main Power |
14KW 380V 50HZ |
|||||||
Dimension |
7000*4000*1900(L*W*H) |
|||||||
Weight |
About 7T |
|||||||
Edge-Line Embossing |
Steel to steel (Pneumatic Control) |
|||||||
Full Embossment |
Steel to rubber |
|||||||
Details Images

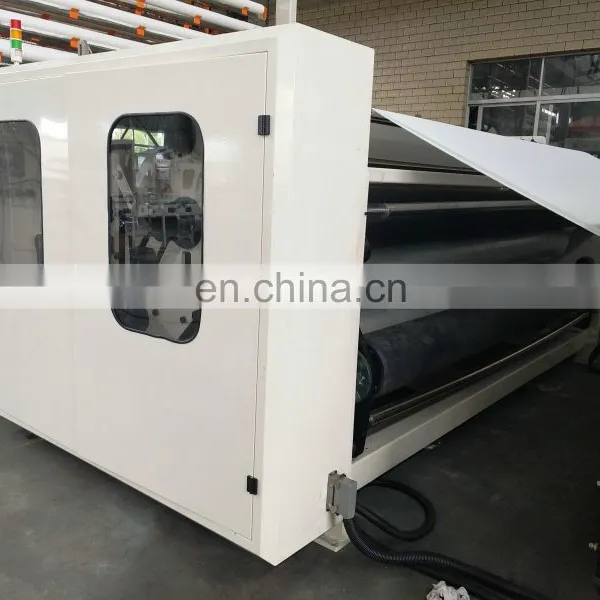

Automatic rewinding machine
1. The whole structure is wall-type.
2. Adopts international advanced PLC programmable controlling technique
3. Adopt jogging switches for wearing the paper, easy and safe to operate
Video Link:
https://youtu.be/pKEVQIgnMn0
XY-AI-280 Automatic log saw cutting machine
1. Automatic blade grinding system, quickly setting parameter on PLC..
2. Two Logs are feeding automatically, cutting then pushing.
3. Shortcuts can be kicked off from the quality products.
4. Equipped with two sets of clamping channels, easy to change.
2. Two Logs are feeding automatically, cutting then pushing.
3. Shortcuts can be kicked off from the quality products.
4. Equipped with two sets of clamping channels, easy to change.
Video Link: https://youtu.be/fHU6REk5ngU

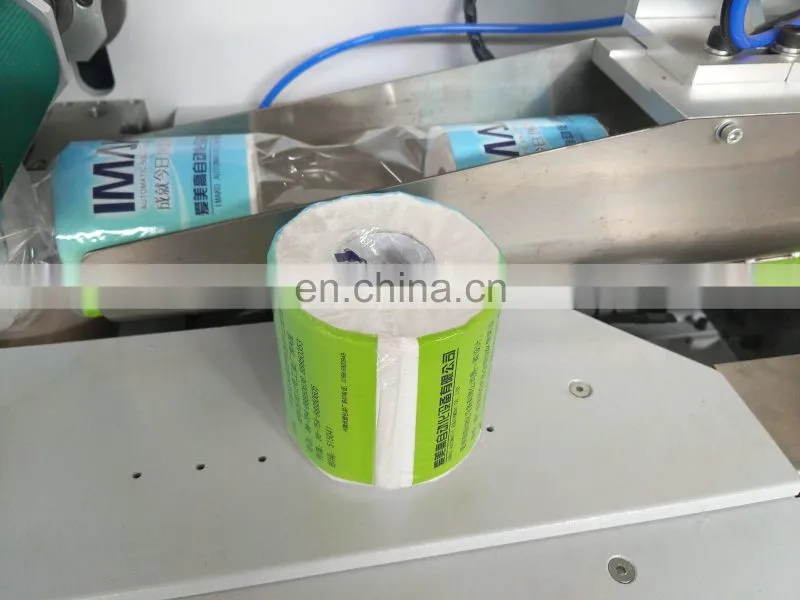

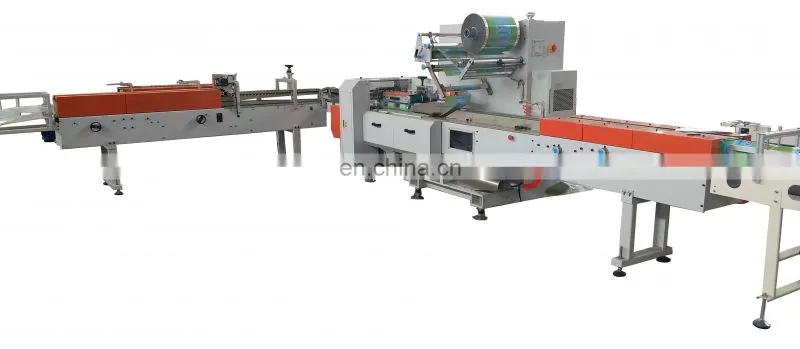

Semi auto toilet paper packing machine
1. Packing core toilet paper stable production speed up to 200 pcs/ min.
2. Packing coreless toilet paper stable production speed up to 150 / min
3. Tissue length between 80-195 mm
Video Link: https://youtu.be/_R3rHljDx90
2. Packing coreless toilet paper stable production speed up to 150 / min
3. Tissue length between 80-195 mm
Video Link: https://youtu.be/_R3rHljDx90
