Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Automatic Toilet Tissue Paper Making Machine for Small Business
Automatic Toilet Tissue Paper Making Machine for Small Business
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Small Toilet Paper Log Saw Cutting MachineNegotiableMOQ: 1 -
Automatic Toilet Paper Making MachineNegotiableMOQ: 1
-
Best Price Toilet Paper Manufacturing MachineNegotiableMOQ: 1
-
Full Automatic Toilet Paper and Kitchen Towel Rewinding MachineNegotiableMOQ: 1
-
Color Printing Full Automatic Toilet Paper MachineNegotiableMOQ: 1
Product Overview

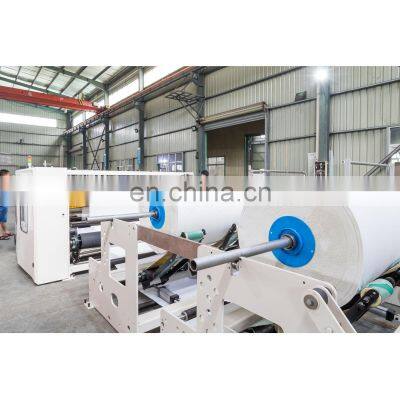

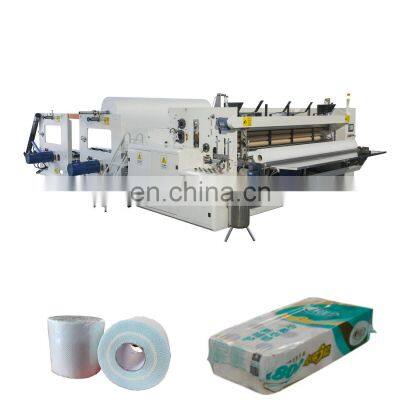

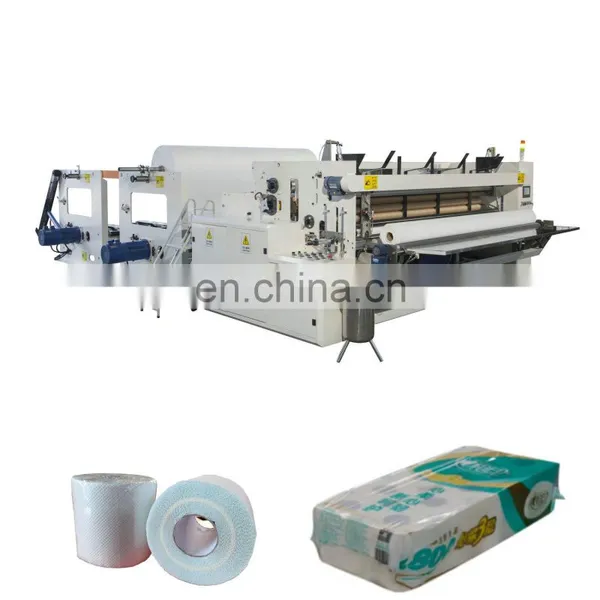

XY-TQ-B Automatic toilet tissue paper making machine for small business

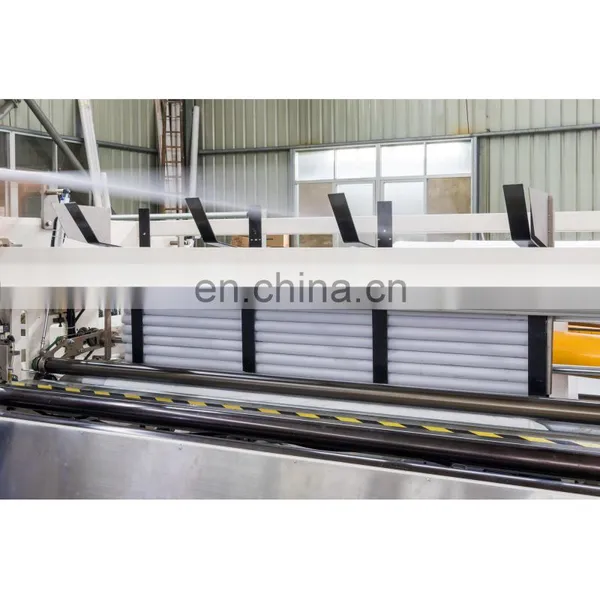

Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.

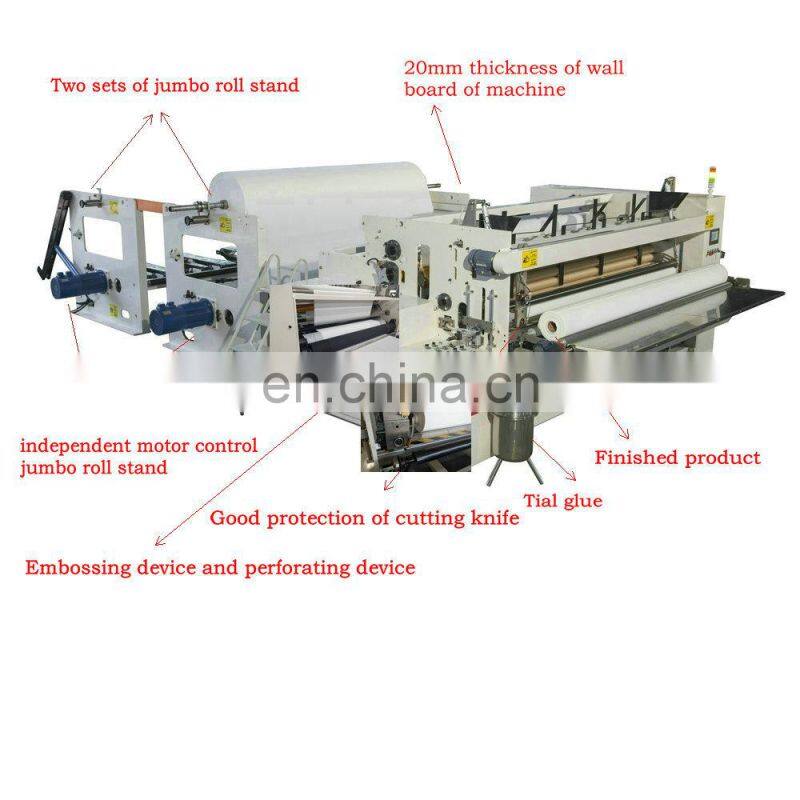

Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

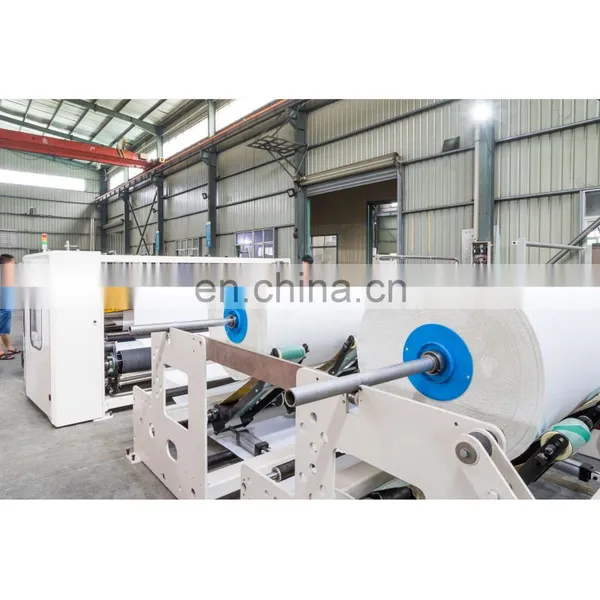

7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
VIDEO LINK: https://youtu.be/ViuQn3MSYUs
https://youtu.be/5ZXGSNGsjmw
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
VIDEO LINK: https://youtu.be/ViuQn3MSYUs
https://youtu.be/5ZXGSNGsjmw
Product Specifications
Machine Model | XY-TQ-B |
Jumbo Roll Max Width | 2800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
Perforation Distance | 4 anvil Blades（115mm）(Other size can be specified) |
Finished Product Diameter | Φ90~φ280mm |
Finished Product Core Diameter | φ38~φ76mm |
Production Speed | 200~230m/min |
Program Controller | PLC( INVT ) |
Unwind Stands | 2 Stands（Need to be specified） |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
Main Power | 14KW 380V 50HZ 3PHASE |
Dimension | 7000*4000*1900(L*W*H) |
Weight | About 7T |
Edge-Line Embossing | Steel to steel (Pneumatic Control) |
Full Embossment | Steel to rubber |

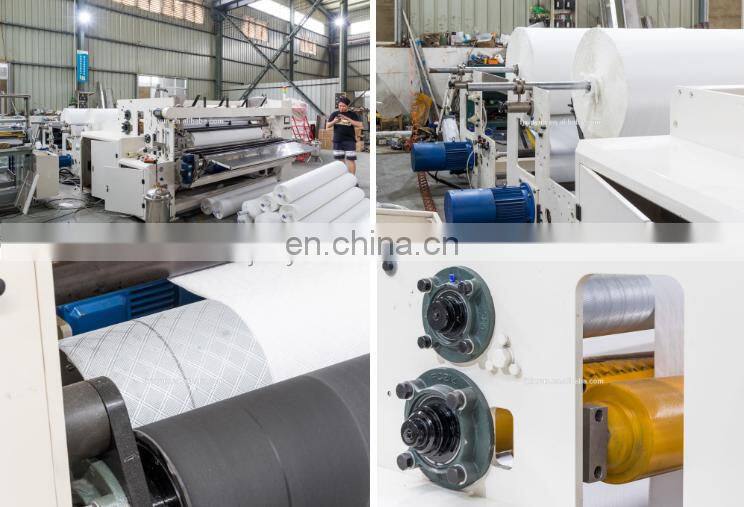

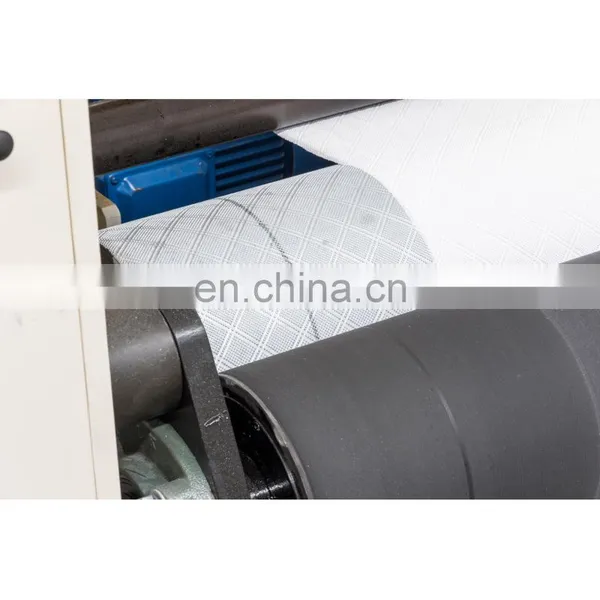

Embossing: Steel to rubber Perforation device

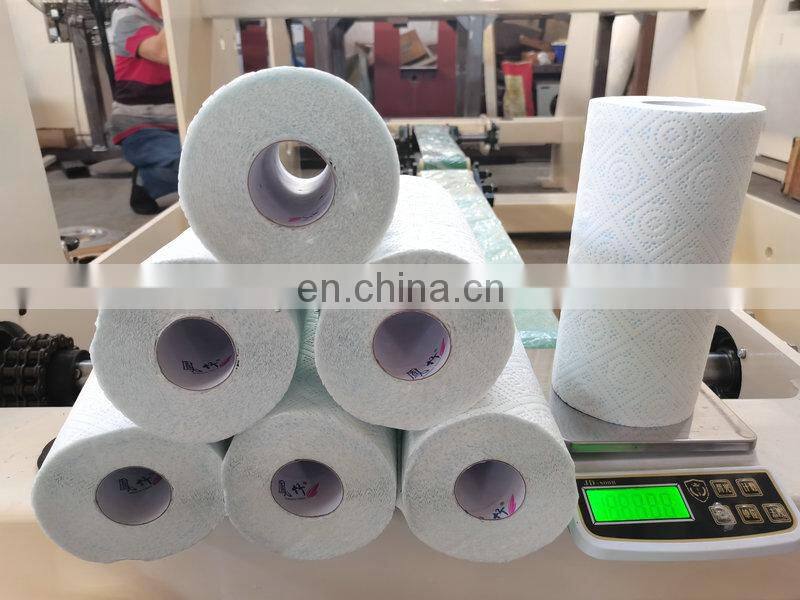

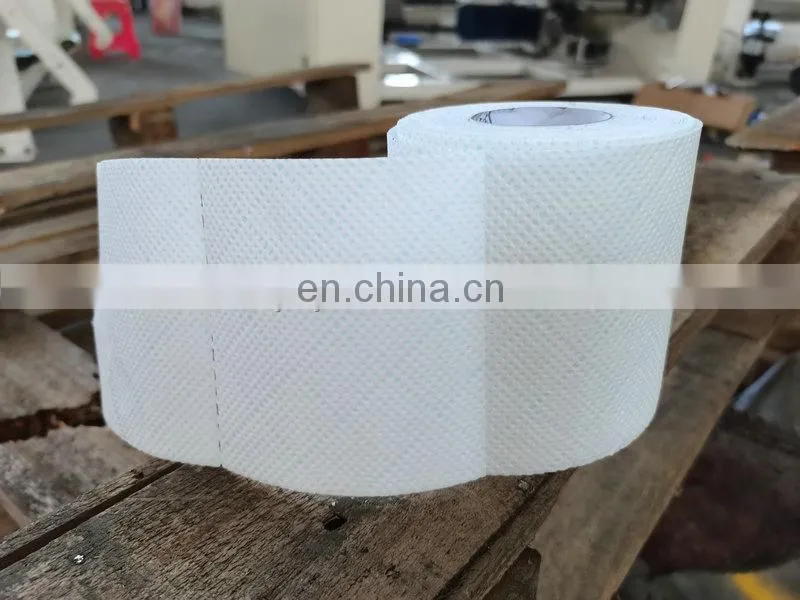

Toilet paper Kitchen towel paper Maxi roll paper

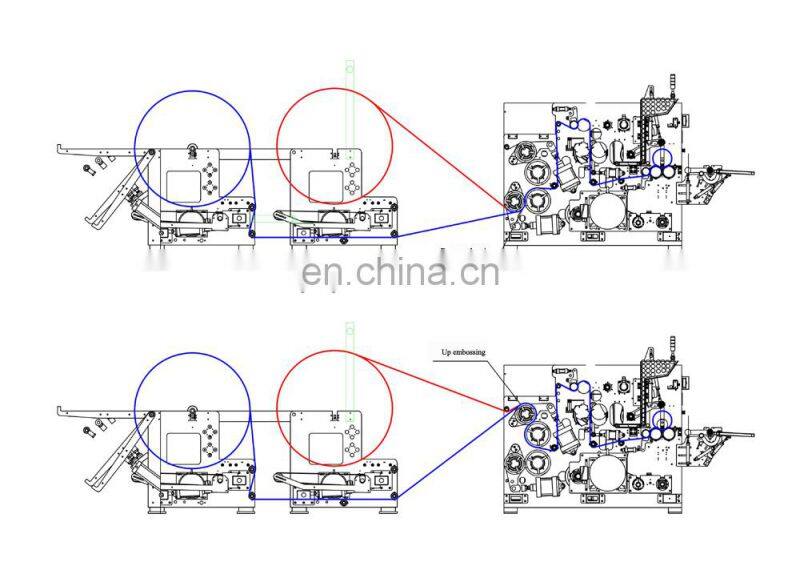

Drawing
Related Products

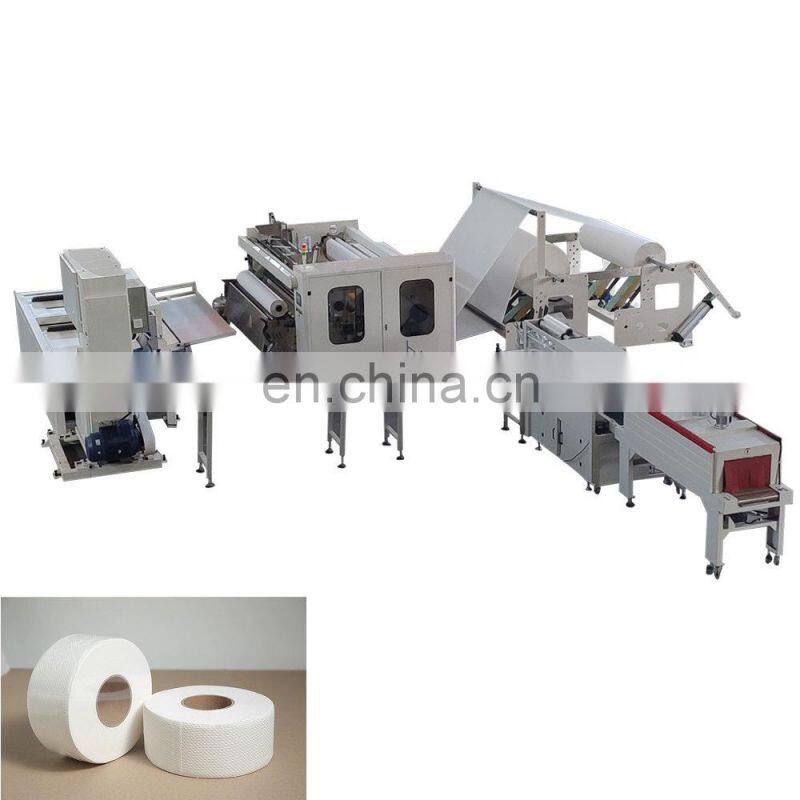

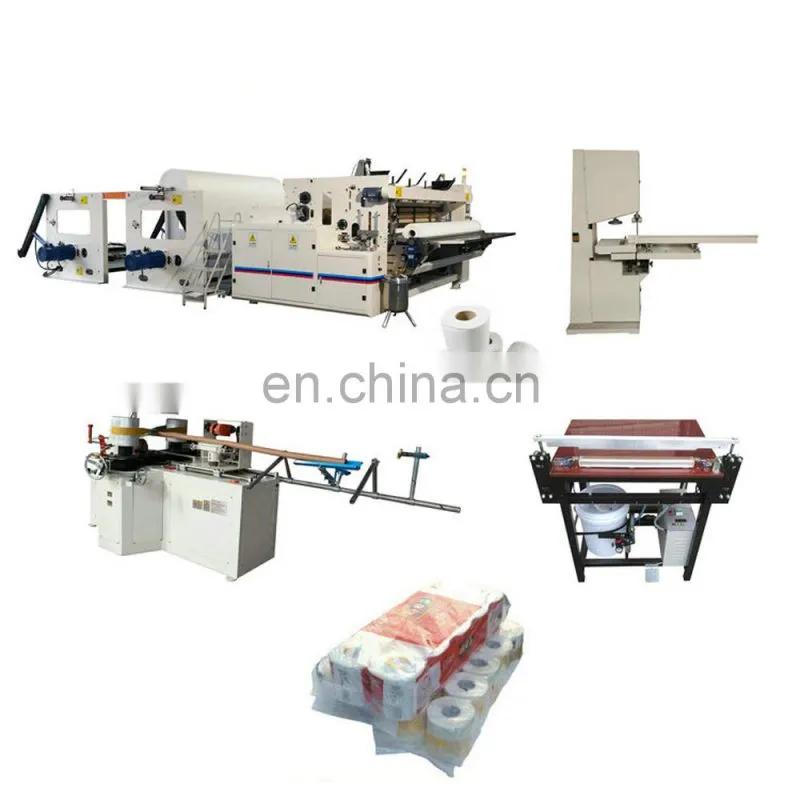

XY-TQ-A-E Cheap Small Toilet Tissue Paper Production Line
This production line consists of Automatic Toilet Paper Maxi Roll Rewinding Machine, Semi Automatic Log Saw Cutting Machine and Semi Auto Plastic Bag Sealing Cutting Machine. It is cheap small toilet paper production line.

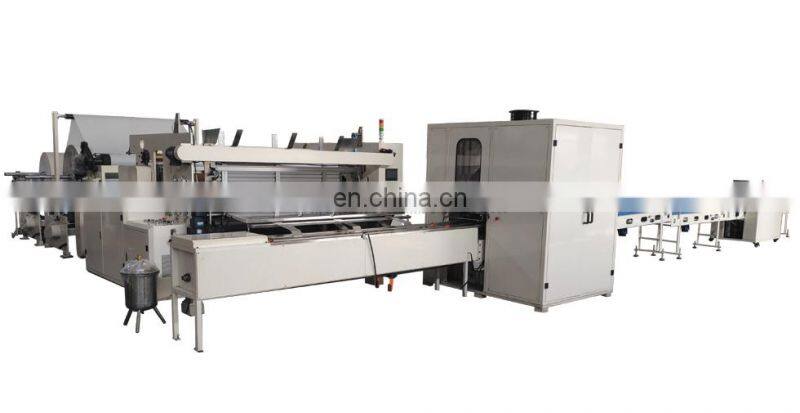

XY-TQ-B-400 Low price automatic toilet paper machine production line
This production line consists of Fully Automatic Rewinding Machine, automatic band saw machine and semi automatic bundle packing machine.

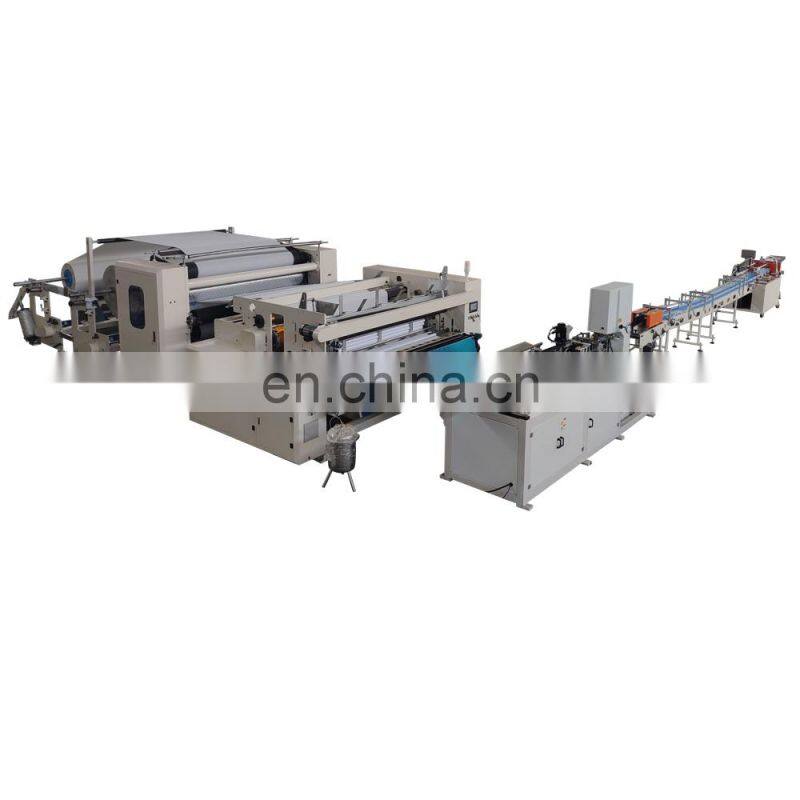

XY-TQ-A-D Full automatic toilet tissue machine production line
This production line consists of Wall Type Automatic Rewinding Machine, Double Channel Log Saw and Semi-automatic Packing Machine.
XY-TQ-B-500 Automatic maxi roll paper making machine production line
This production line consists of Automatic Toilet Paper Maxi Roll Rewinding Machine, Maxi Roll Cutting Machine and Automatic Maxi Roll Heat Shrink Machine.

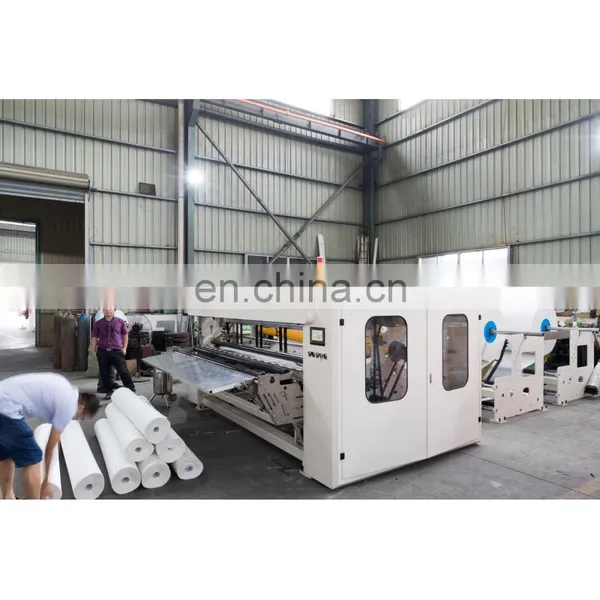

Work Shop
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Product packaging
FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
