High Quality Automatic Small Toilet Tissue Paper Single Roll Packing Machine

High Quality Automatic Small Toilet Tissue Paper Single Roll Packing Machine photo-1
High Quality Automatic Small Toilet Tissue Paper Single Roll Packing Machine photo-2
High Quality Automatic Small Toilet Tissue Paper Single Roll Packing Machine photo-3
High Quality Automatic Small Toilet Tissue Paper Single Roll Packing Machine photo-4
High Quality Automatic Small Toilet Tissue Paper Single Roll Packing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

High quality automatic small toilet tissue paper single roll packing machine

XY-AI-503IZ

Main features:
1. AI-503IZ single roll paper automatic packing machine is suitable for single toilet paper roll with core or coreless , kitchen
tissue, fully automatic packing. 2. Paper feeding, film feeding, longitudinal sealing, cutting, coreless paper exhaust, reversing
operation actions are driven by servo control method that has complete run function configuration, high efficiency, simple
operation, specifications for wide range, quick changeover specifications, convenient maintenance low use cost and other the
advantages.
3. Packing core toilet paper stable production speed up to 200 pcs/ min.
4. Packing coreless toilet paper stable production speed up to 150 / min
Only electronic setting, free conversion is done for tissue length between 80 mm to 195 mm

 Specifications for single roll packing machine
Production speed
20-200rolls/min
Max. width of film
430mm
Toilet roll dimension
L 80-220 * dia. 80-130mm
Blade
Double blade
Film Support
Double supports
Material of film
BOPP,SPP,CPP
Thickness of film
0.018-0.03mm
Power
12 KW 220V 50HZ
Machine size
5500*3300*1800
Weight
1800KG
Certifications
Machines show

Multi-rolls toilet roll paper packaging machine

XY-AI-398D

1. Packing speed: 18bags/min
2. Packing type: 24rolls
3. Packing film: PE precast bag
4. Total Power Supply: 11kw

5.  Packaging Specifications(Max):  L600mm*W360mm*H250mm

Semi-automatic multi-rolls toilet roll paper

packaging machine  XY-AI-398A

1.Speed: 5-8 bag/min
2.Power: 2.2KW/380V 50HZ
3.Pressure :0.4 --- 0.5MPA
4.Machine size: 5*1.2*1.2M
5.Weight: 400Kg

Packing & Delivery

We can help customer to book shipping space and arrange shipping as well !
The machine will be packed in Wooden Pallet.
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Case, ensure that the goods will safely arrive at the erection or construction site without any damage
.

FAQ

Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Related Products
Our Company

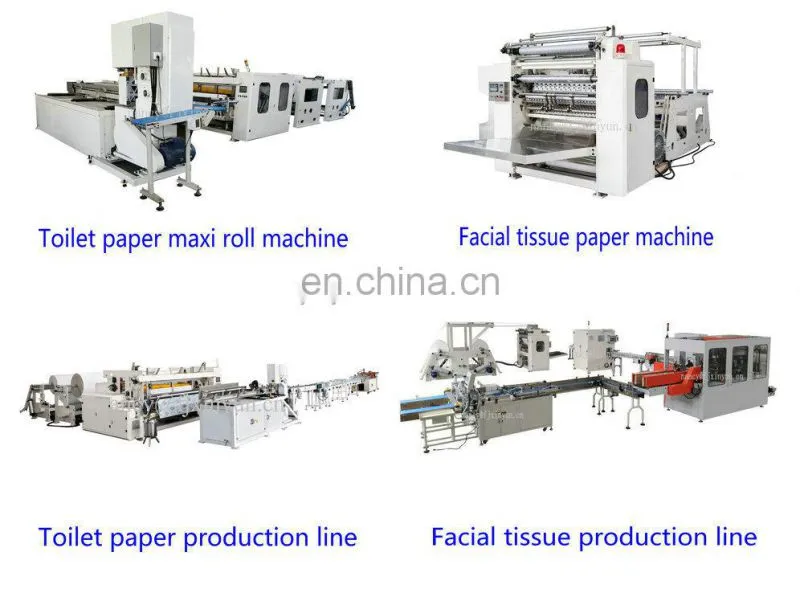

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
