Product Description
Product Overview

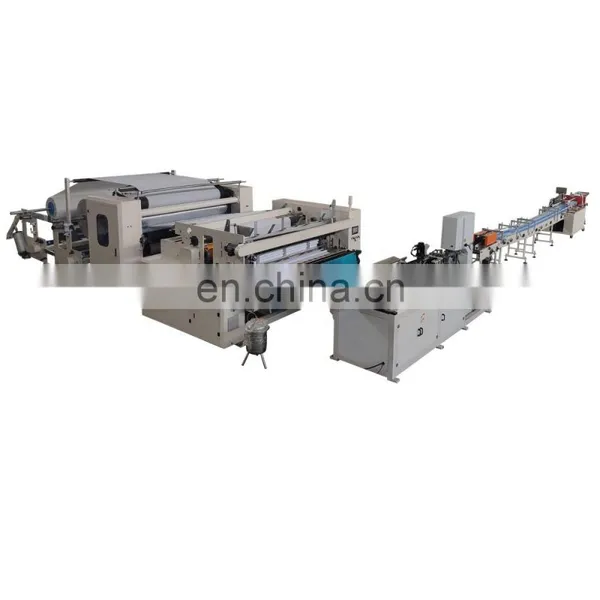

XY-TQ-A-G Automatic Toilet Roll Paper Machine Production Line
Outline
This production line consists of Fully Automatic Rewinding Machine, automatic band saw machine and semi automatic bundle packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.
This production line consists of Fully Automatic Rewinding Machine, automatic band saw machine and semi automatic bundle packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.
XY-TQ-B Full automatic toilet paper and kitchen towel machine
Outline
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing
or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can
working with cutting machine and packing machine to become the finished products. The machine is
controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to
operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can
working with cutting machine and packing machine to become the finished products. The machine is
controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to
operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Video Link: https: https://youtu.be/r8mkv57RIrs
https://youtu.be/hdCzFQAB4MY
Function and Features
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Technical Parameters
Model | XY-TQ-B |
Jumbo Roll Width | 1750mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Core Diameter | 3inches(76.2mm) |
Perforation Distance | 4 anvil Blades(115mm.、230mm)(Other size can be specified) |
Finished Product Diameter | Φ80~φ280mm |
Finished Product Inner Diameter | φ38~φ76mm |
Production Speed | 200-230m/min |
Program Controller | PLC |
Jumbo roll paper stand | 1 or 3 Stands(Need to be specified) |
Pneumatic System | 0.5~0.8MPA(Provide by user) |
Main Power | 18KW |
Overall Dimension | 10000*3000*2000(L*W*H) |
Weight | About 12T(wall board structure)(Other size can be specified) |
Jumbo Roll Layers | 1~3plys,14~30gsm Toilet paper or kitchen towel |
Edge-Line Embossing(can be specified) | Steel to steel (Pneumatic Control) |
Embossment (can be specified) | Steel to Rubber, Double Sets |
Voltage | 380V 50HZ |
XY-AI-400 Toilet paper band saw cutting machine
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state. This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Video Link: https://youtu.be/PVxibkvdS4w
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electro-mechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state. This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Video Link: https://youtu.be/PVxibkvdS4w
Function and Features
1. When the paper cannot be cut down, the equipment will automatically stops and gives an alarm.
1. When the paper cannot be cut down, the equipment will automatically stops and gives an alarm.
2. The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product.
3. The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product.
4. When data input is incorrect, the equipment breaks off and prompts to adjust on the interface.
4. When data input is incorrect, the equipment breaks off and prompts to adjust on the interface.
5.The waste paper head and paper end can be automatically sorted.
6. The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife
system according the requirement of paper being cut, which increase the cutting life.
system according the requirement of paper being cut, which increase the cutting life.
7. The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency.
Cutting speed | 80~100cuts/minute |
Cutting blade | band saw blade(Size 3850*40*0.6) |
Toilet log length | ≦2850mm(it can be made according to customer request) |
Finished toilet roll length | ≦300mm |
Finished toilet roll diameter | 70-130mm |
Cutting tolerance | ±1.5mm |
Power supply | 5kw 380V 50H 3 phase 4line |
Overall size | 2800x1500x2100mm |
Machine weight | 1100KG |

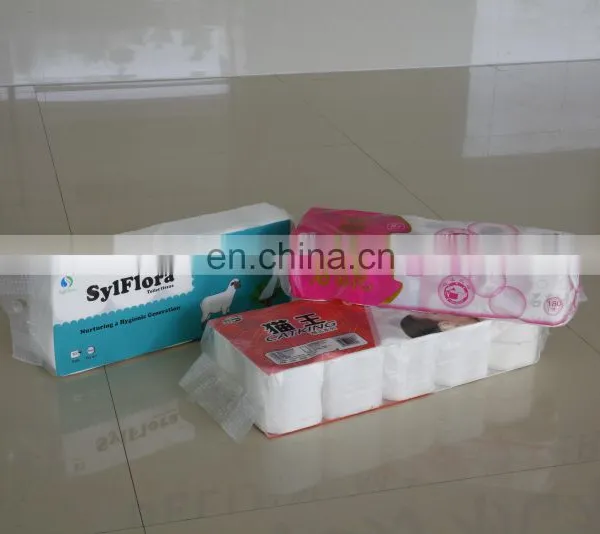

XY-AI-398A Semi automatic multi rolls toilet paper packing machine
This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements. It’s easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.
Video Link: https://youtu.be/4La8KE7zwEw
https://youtu.be/kNxiLQJF06s
https://youtu.be/73TW1ilEcT4
This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements. It’s easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.
Video Link: https://youtu.be/4La8KE7zwEw
https://youtu.be/kNxiLQJF06s
https://youtu.be/73TW1ilEcT4
Function and Features
1. Multi function: automatic conveying, single head operation, automatic feeding, automatic sealing, automatic countering.
1. Multi function: automatic conveying, single head operation, automatic feeding, automatic sealing, automatic countering.
2.Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient. The machine use the servo motor to push the products to the bags, it causes to locating the products more accurately.
3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyor can be connected with automatic toilet roll packing machine with conveyor. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
4. Capacity: 8-12 bundling bag/min, 1 labor only to pack.
5. Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically.
6. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily and efficiently, and therefore this makes our machine have long life.
Model | XY-AI-398A |
Air supply | 0.6Mpa |
Power supply | 4Kw 380V 50HZ |
Speed | 8-12 bundling bag/min |
Single roll size | Diameter:Ø90-120mm Height:90-140mm |
Bundling Size(L*W*H) | (360-650)*(180-240)*(90-140)mm |
Machine size(L*W*H) | 5000*1000*1500mm |
XY-SD-B Automatic Roll Core Making Machine
Roll core machine is for making the paper core inside the toilet paper roll. It consists of three parts: raw material stand, glue unit, rewinding and cutting unit. It can make different thickness and different diameter paper core by changing the model. This machine easy to operate, running stable, can work with toilet paper rewinding machine.
Video Link: https://youtu.be/e1-edRLI_mU
Function and Features
1. Inverter control to ensure the accuracy of the length of paper tube.
2. Automated online on plastic, paper tube and cut off.
3.Product diameter and length can be customized according to customer needs.
4. Products are widely used in toilet paper. Plastic and textile industry.
5. The machine has reasonable design. operation simple and convenient maintenance.
Technical Parameters
Production speed | 15 ~ 20m / minutes |
Kraft paper width | 50-105 mm |
Paper Tube diameter | 20mm~100mm (can be customized) |
Paper tube layers | 2 ~ 30 layers |
Paper grams amount | 150-400 gsm |
Reel Length | 800-3000 mm |
Defect rate | ≤2% |
Power | 4.5KW 380V 50HZ |
Equipment Size(L*W*H) | main machine: 2950*1700*1800mm glue buckets device: 1250*850*1200mm |
Weight | 1500Kg |
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
