High Speed Automatic Toilet Tissue Paper Log Saw Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full Automatic Toilet Paper Rewinding MachineNegotiableMOQ: 1 -
Automatic Jumbo Roll Paper Making MachineNegotiableMOQ: 1
-
Automatic Maxi Roll Paper Making MachineNegotiableMOQ: 1
-
Full Automatic Small Toilet Paper Machine Production LineNegotiableMOQ: 1
-
Automatic Toilet Paper Roll Machine Production LineNegotiableMOQ: 1
Product Overview
XY-AI-280 High Speed Automatic
Toilet Tissue Paper Log Saw Cutting Machine
Outline
XY-AI-280 Double Channel Log Saw Machine is used for cutting the toilet paper roll and kitchen towel paper roll, it’s with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
Video Link: https://youtu.be/wV8g7lmB90k
Video Link: https://youtu.be/wV8g7lmB90k
Function & Features
1. Automatic blade grinding system, quickly setting parameter on PLC.
2. Sharpen wheel can grinding according to the wear degree.
3. Two Logs are feeding automatically, cutting then pushing.
3. Two Logs are feeding automatically, cutting then pushing.
4. Shortcuts can be kicked off from the quality products.
5. Equipped with two sets of clamping channels, easy to change.

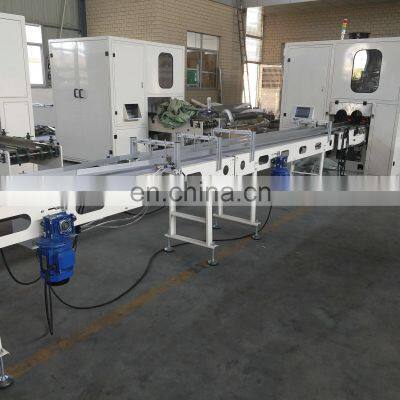

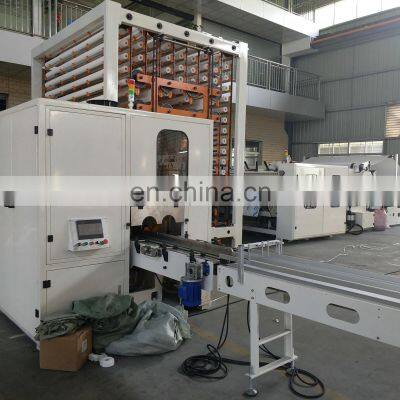

Details Images
Finished Products
Product Paramenters
Log roll width |
2200/2800mm (Other size can be specified) |
Log roll diameter |
100-120mm (Other size can be specified) |
Design speed |
120cuts/min |
Stable speed |
100cuts/min |
Grinding system |
Pneumatic Sharpen, grinding time can be set |
Driving system |
Delta Servo Motor |
Power |
11KW |
Overall dimension |
6500*2500*2000mm(Other size depends on model and configuration) |
Blade diameter |
610*68.3*3.8mm |
Voltage |
380V 50HZ 3phase |
Weight |
about 4000KG |
Related Products
Workshop
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
