Product Overview
XY-TQ-A-C Semi Automatic Small Toilet Paper Machine Production Line
Outline
XY-TQ-A-C Semi-automatic Toilet paper production line is a complete production line for producing small toilet tissue paper, which composed of one set of XY-TQ-B Full-automatic Dot-to-Dot High-speed Rewinding and Perforating Toilet Paper Machine, one set of XY-AI -300 Toilet Paper Cutting Machine, one set of XY-AI-398-B Plastic Bag Sealing and Packing Machine.
XY-TQ-A-C Semi-automatic Toilet paper production line is a complete production line for producing small toilet tissue paper, which composed of one set of XY-TQ-B Full-automatic Dot-to-Dot High-speed Rewinding and Perforating Toilet Paper Machine, one set of XY-AI -300 Toilet Paper Cutting Machine, one set of XY-AI-398-B Plastic Bag Sealing and Packing Machine.
Production Process: Unwinding---Embossing---Rewinding---Tail gluing---Edge Trimming---Rewinding---Cutting---Packing
Video Link: https://youtu.be/r8mkv57RIrs
https://youtu.be/hdCzFQAB4MY
Video Link: https://youtu.be/r8mkv57RIrs
https://youtu.be/hdCzFQAB4MY
XY-TQ-B Full automatic toilet paper and kitchen towel machine
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing
or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can
working with cutting machine and packing machine to become the finished products. The machine is
controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to
operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Video Link: https: https://youtu.be/r8mkv57RIrs
https://youtu.be/hdCzFQAB4MY
or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can
working with cutting machine and packing machine to become the finished products. The machine is
controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to
operate, lower the man cost. And Our machine can special-made according to clients’ requirements.
The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Video Link: https: https://youtu.be/r8mkv57RIrs
https://youtu.be/hdCzFQAB4MY
Function And Features
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again. 2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Technical Parameters
Model | XY-TQ-B |
Jumbo Roll Width | 1750mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Core Diameter | 3inches(76.2mm) |
Perforation Distance | 4 anvil Blades（115mm.、230mm）(Other size can be specified) |
Finished Product Diameter | Φ80~φ280mm |
Finished Product Inner Diameter | φ38~φ76mm |
Production Speed | 200-230m/min |
Program Controller | PLC |
Jumbo roll paper stand | 1 or 3 Stands（Need to be specified） |
Pneumatic System | 0.5~0.8MPA（Provide by user） |
Main Power | 18KW |
Overall Dimension | 10000*3000*2000(L*W*H) |
Weight | About 12T(wall board structure)(Other size can be specified) |
Jumbo Roll Layers | 1~3plys,14~30gsm Toilet paper or kitchen towel |
Edge-Line Embossing(can be specified) | Steel to steel (Pneumatic Control) |
Embossment (can be specified) | Steel to Rubber, Double Sets |
Voltage | 380V 50HZ |

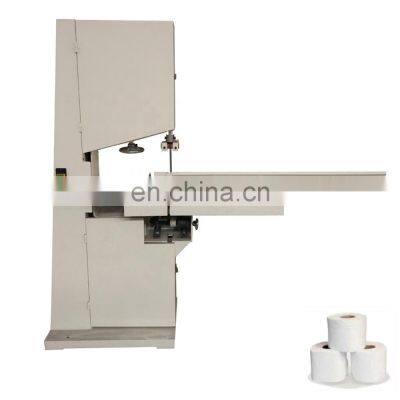

XY-AI-300 Manual Roll Paper Cutting Machine
This machine is the equipment for roll Toilet Paper and Kitchen Towel, it is the supporting for rewinding and perforated toilet paper machine. The main function is to cut the rewinded big toilet paper into various kinds of standard small rolls. The machine is compose with stander, saw blade drive, adjustment, tension, saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation.
This machine is the equipment for roll Toilet Paper and Kitchen Towel, it is the supporting for rewinding and perforated toilet paper machine. The main function is to cut the rewinded big toilet paper into various kinds of standard small rolls. The machine is compose with stander, saw blade drive, adjustment, tension, saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation.
Video Link: https://youtu.be/xMaa7WD3d2U
Technical Parameters
Machine model | XY-AI-300 |
Production speed | 10-30 cuts /min |
Power | 2.2KW 380V 50HZ |
Overall size (mm ) | 1600*600*1800 (L*W *H） |
Weight | about 0.2 T |
XY-AI-398-B Semi-automatic Plastic Bag Sealing Machine
1.Machine are the pioneer to use mini PLC and screen adjustable temperature range ensure fast efficient and accurate seal and cut operation.
2.Water cooled and dual temperature digital control design allows perfect seal and cut, equipped with heat press label for product production date.
3.Dual digital temperature control enable damage to heat thread, protection tape and air cylinders,
big save for downtime and running cost.
big save for downtime and running cost.
4.Machine operation width 490mm, and different thickness of bags can be seal and cut easily by adjusting the temperature control to achieve rapid steady operation and not disturbed by room temperature difference at all times.
Video Link: https://youtu.be/Nt5A_XtHrEI
Technical Parameters
Speed | 10-20 bags/minute |
Width of Flat Seal Thread | 6mm |
Max sealing width | 49 cm |
Diameter of Round Thread | ￠0.5mm |
Materials | Nickel Chrome Thread |
Power | 1.5KW (220V 50HZ) |
Air compressor | 0.3-0.5mpa （provided by customer) |
Dimension (L×W×H) | 900*620*960mm |
Weight | 80Kg |

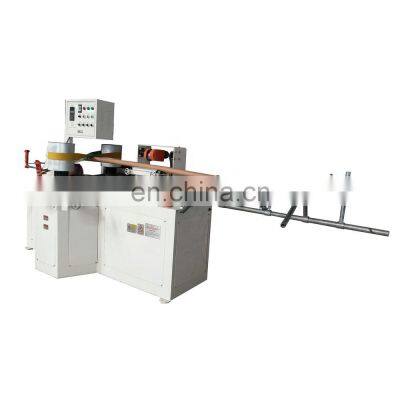

XY-SD-B Automatic Roll Core Making Machine
Roll core machine is for making the paper core inside the toilet paper roll. It consists of three parts: raw material stand, glue unit, rewinding and cutting unit. It can make different thickness and different diameter paper core by changing the model. This machine easy to operate, running stable, can work with toilet paper rewinding machine.
Video Link: https://youtu.be/e1-edRLI_mU
Function and Features
1. Inverter control to ensure the accuracy of the length of paper tube.
2. Automated online on plastic, paper tube and cut off.
3.Product diameter and length can be customized according to customer needs.
4. Products are widely used in toilet paper. Plastic and textile industry.
5. The machine has reasonable design. operation simple and convenient maintenance.
Technical Parameters
Production speed | 15 ~ 20m / minutes |
Kraft paper width | 50-105 mm |
Paper Tube diameter | 20mm~100mm (can be customized) |
Paper tube layers | 2 ~ 30 layers |
Paper grams amount | 150-400 gsm |
Reel Length | 800-3000 mm |
Defect rate | ≤2% |
Power | 4.5KW 380V 50HZ |
Equipment Size(L*W*H) | main machine: 2950*1700*1800mm glue buckets device: 1250*850*1200mm |
Weight | 1500Kg |
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
