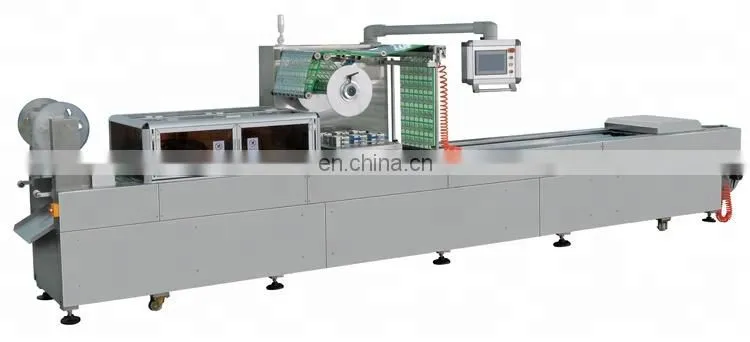

Automatic Thermoforming Vacuum Meat Food Skin Packing Machine

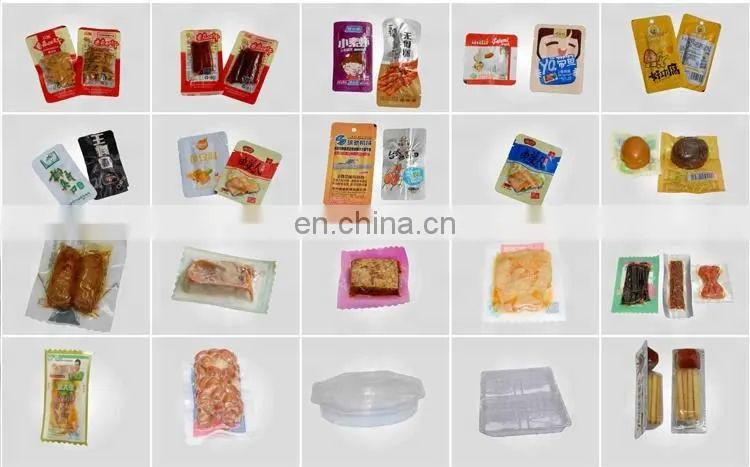

Application Range:
Main Technical Parameter:

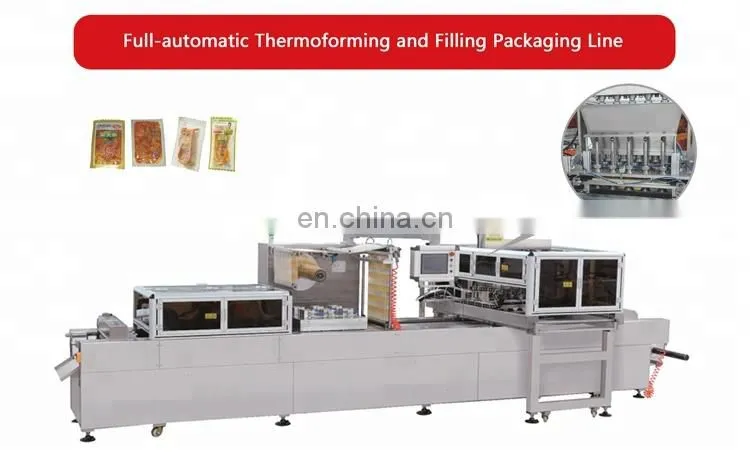

Full-automatic Thermoforming and Filling Packaging Line | |
| Equipment Model | RC-520J |
| Width of Top Film | 498mm |
| Width of Bottom Film | 524mm |
| Vacuum | ≤200Pa |
| Compressed Air | ≥0.6Mpa |
| Air Consumption | ≥0.7m3/min |
| Air Filling Pressure | ≥0.2Mpa |
| Filling Speed | 3-4p/min |
| Filling Accuracy | ≤±1g (according to the products) |
| Filling Weight | 10g-50g |
| Filler Numbers | 4-5 filler number |
| Air Filling Connector | Ø16PU tube |
| Cooling Water | ≥0.15Mpa |
| Power Supply | 380V/50HZ |
| Total Power | 14~20KW |
| Machine Dimension | 6750*1950*2050mm |
| Machine Weight | 2700kg |

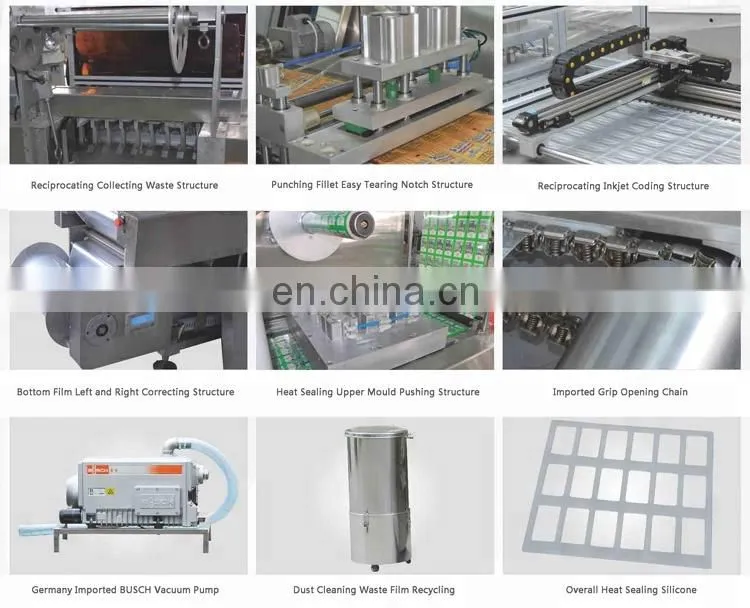

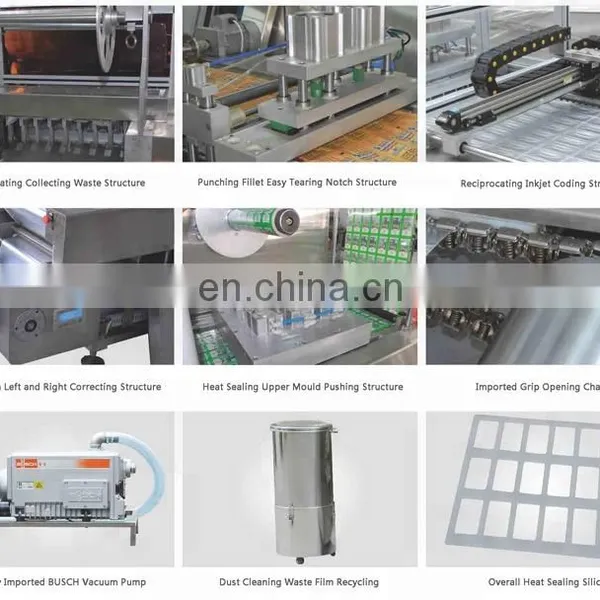

Detail Image:
Other Series Skin Packaging Machine
Main Functions And Features:
1.Combined with automatic filling machine according to different products;
2.Main process: top and bottom film forming, automatic products feeding, automatic oil feeding, vacuuming, sealing, inkjet coding, cutting and discharging;
3.Easy to operate: PLC controller, HMI system for easy operation;
4.High efficiency: more than 6000bags/hour by two operators (Ref. 100*70mm bag);
5.Easy to clean: 304 Stainless steel, and the filling machine can be moved separately for wash-down;
| For more information, please click. | CONTACT US > |
Unionpack, as a professional overseas sales and service team for REZPACK who is one of China’s preeminent packaging machinery manufacturers, with more than two decades of experience in packaging machinery industry, our machine have been delivered to over 3 0 0 0 companies in 3 0 countries. Our partners and technical consultants can be found in Europe, America and Southeast Asia, bringing us techniques and expertise from all over the world. Rezpack is certified to I S O 9 0 0 1 and CE standards, and have obtained more than 2 0 0 patents.

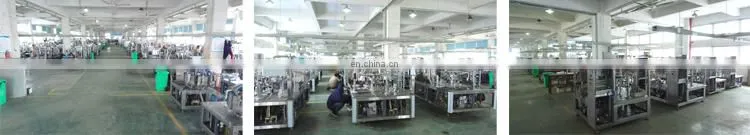

Home to over 2 0 0 talented employees, and the workshop spans 7 0 0 0 square meters, we can produce 1 5 0 diverse sets of packing equipment in one month. Every machine is made based on customer’s requirements and carefully debugged before shipping. Our R&D team is comprised of more than 3 0 people, to develops new equipment to keep up with ever changing technology and market demands. Besides, we have a professional after-service team, comprised of 2 0 people, who can provide one-to-one video calling, door-to-door service, as well as free technical training for our partners.
We do not only produce pouch packaging machine, thermoforming packaging machine but also cooperate with 1 5 professional factories to supply whole packaging solution.
Out target is to create the extra value for our customers. The Customer is our Partner!
| Thank you very much for viewing this page, and wish you a nice day. | Contact Us > |
