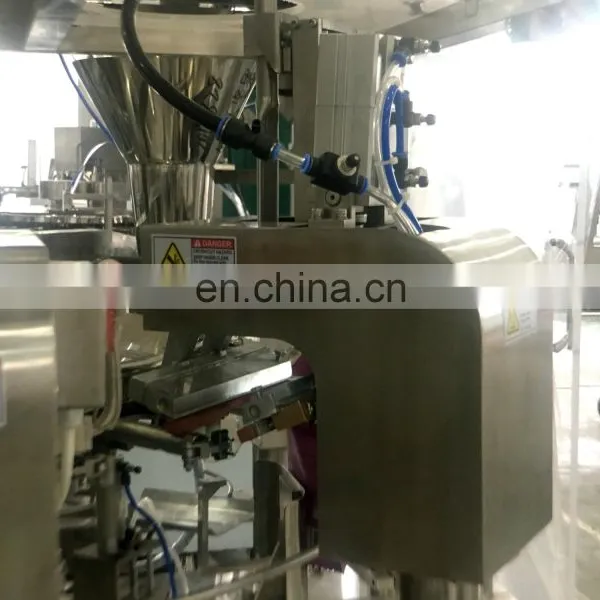

Automatic Rotary Premade Pouch Packing Machine
- 1000 per Month
- T/T Credit Card
You May Like
-
Unionpack Machinery RZ8-300C Liquid Powder Granule&Solid Packing Machine
-
Unionpack Machinery RZ8 - 200C Rotary Pre-made Bag Packing Machine
-
Bag with Tray Packaging Machine
-
Factory Price Full Automatic Fill-Seal Packaging Machine For Potato Chips Sunflower Seeds
-
High Efficiency Automatic Filling Sealing Packaging Machine For Solid Powder Or Solid
-
Automatic Premade Filling and Sealing Packaging Machine For Brown Sugar
Product Description

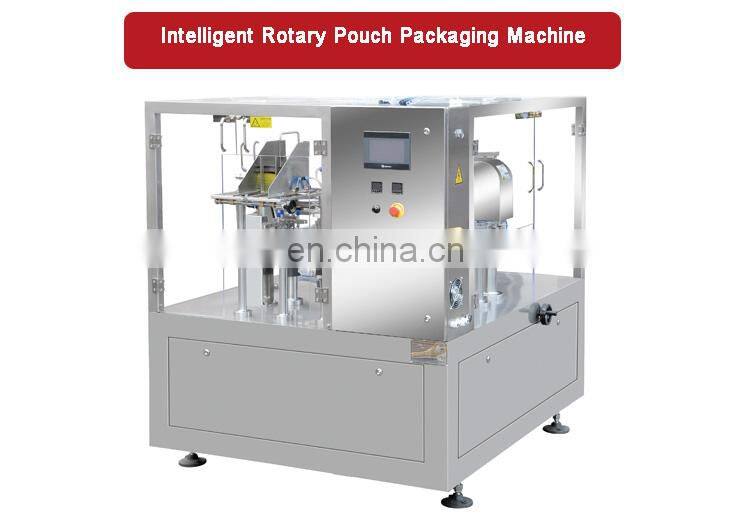

Automatic Rotary Premade Pouch Packing Machine
Application Range:
1.Solid: leisure food(candy chocolate)etc;
2.Grain: condiment(monosodium glutamate, chicken essence, granulated sugar) dry fruit (nuts), capsule,grain medicine, seed, feed etc;
3.Powder: condiment, monosodium glutamate, salt, glucose,narrowly sugar, milk powder, washing powder etc;
4.Lquid: yellow wine, soy sauce, rice juice, drink, detergent etc;
5.Thick liquid: ketchup, peanut butter, sauce, chill sauce, bean butter etc;

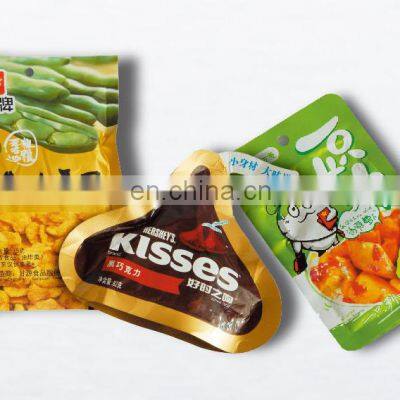

Bag Types:
Main Technical Parameter:
RZ8-150S Intelligent Rotary Packaging Machine |
||
Equipment Model | RZ8-200C | RZ8-300C |
Bag Size | W:75~200mm L:100~300mm | W:160~300mm L:100~400mm |
Filling Range | 10~1500g | 10~2500g |
Packing Speed | 20~60bags/min (depended on the product and filling weight) | 10~45Bags/min(depended on the product and filling weight) |
Package Accuracy | Error≤±1% | |
Weight | 1000kg | 2000kg |
Dimension | 1570mm*1440mm*1480mm (L,W,H) | 1830mm*1650mm*1800mm (L,W,H) |
Total Power | 3kw | 3.8kw |
Station Process:
Main Features:
1.Wide application : various shapes, state and nature of products (such as rice, coarse grains, nuts, spicy snack, Chinese chestnut liquid, etc.)
2. Easy to operate: PLC controller HMI system makes easy operation.
3. Easy to adjust: Synchronously adjust machine clamp, and parameters for different products can be saved and available from database when changing products.
4. High Automation: Complete all actions by end cam, whose machining technology is more simple than grooved cam, thus cost lower. The highest speed can reach 60pcs/min
5.Perfect Prevention System: when the bag is not open or not opened enough, it will be non-filling and non-sealing, so the empty bags return to the first station to refill and not wasted and it will save the production cost.
6. Stainless steel/other materials ensure sanitation and safety, meet the GMP standard.
7. Oil-free vacuum pump: avoid production environment pollution.
8. Waterproof Design: direct water-washing the machine surface, easy to clean, prolong the useful life.
9. Premade bag packing: high sealing quality, upgrade the finished product.
10. Adopt concentrated oil-supplied lubrication device inside the grooved cam. time, mechanical actions are controlled by end cam and tension springs, empty bag cycline.

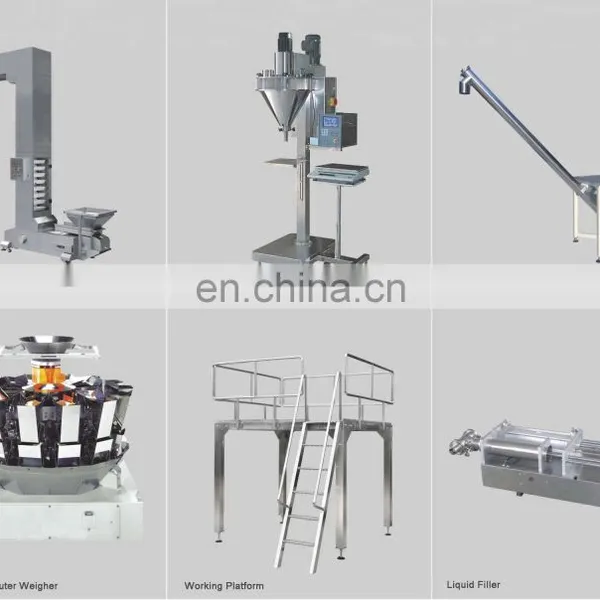

Auxiliary Equipment:
For more information, please click. | CONTACT US > |
Unionpack, as a professional overseas sales and service team for REZPACK who is one of China’s preeminent packaging machinery manufacturers, with more than two decades of experience in packaging machinery industry, our machine have been delivered to over 3 0 0 0 companies in 3 0 countries. Our partners and technical consultants can be found in Europe, America and Southeast Asia, bringing us techniques and expertise from all over the world. Rezpack is certified to I S O 9 0 0 1 and CE standards, and have obtained more than 2 0 0 patents.
Home to over 2 0 0 talented employees, and the workshop spans 7 0 0 0 square meters, we can produce 1 5 0 diverse sets of packing equipment in one month. Every machine is made based on customer’s requirements and carefully debugged before shipping. Our R&D team is comprised of more than 3 0 people, to develops new equipment to keep up with ever changing technology and market demands. Besides, we have a professional after-service team, comprised of 2 0 people, who can provide one-to-one video calling, door-to-door service, as well as free technical training for our partners.
We do not only produce pouch packaging machine, thermoforming packaging machine but also cooperate with 1 5 professional factories to supply whole packaging solution.
Out target is to create the extra value for our customers. The Customer is our Partner!
Thank you very much for viewing this page, and wish you a nice day. | Contact Us > |
