Brand Name gdmk
Model Number TKVA-I

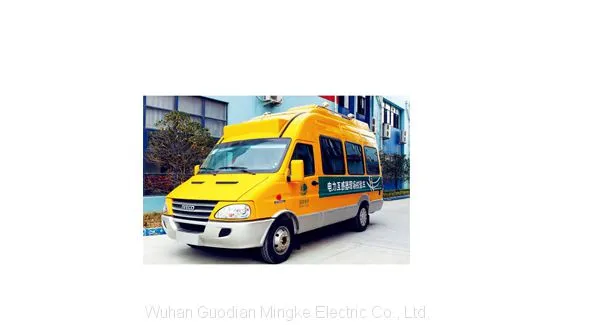

The vehicle-mounted mobile calibration platform for transformers of this system. Transformer mobile calibration platform is mainly used for 6kV-220kV electromagnetic transformer, CVT, EVT/ECT, 10kV-35kV combined transformer

On-site error verification can safely, maneuver, fast and efficiently complete related test items such as errors in the substation and customer on-site environment, and systematically manage the experimental data.

       The vehicle-mounted transformer calibration platform includes the following contents: ① mobile platform system; ② test system; ③ data management system; ④ auxiliary analysis system.


Equipment name


Quantity


Remarks


                                 High-top luxury coach


1 car





Vehicle-mounted calibration unit


1 set





110kV-220kV standard voltage transformer and step-up integrated equipment


1 set


        (Optional)


(2000A) Standard current transformer


2 sets


1A and 5A each.


35kV standard voltage transformer


1 set


Inflatable standard voltage transformer


6-10kV standard voltage transformer


1 set


Inflatable standard voltage transformer


35kV single-phase boost equipment


1 set





Transformer calibrator


1 set


Electronic calibrator


6-10kV single-phase boost equipment


1 set





EVT/ECT calibrator


1 set





10kV three-phase boost equipment


1 set





35kV three-phase boost equipment


1 set





3000A current booster


1 set





Voltage load box


3 sets


Centralized software control


Current load box


4 sets


2 units each for 1A and 5A

Centralized software control


Two-phase cable reel


2 pcs


50m, 4mm2


High current wire


Several roots


100-2000A each 20m.


Secondary line package


2 sets





Grounding wire, bare copper wire 4mm2


1





High voltage wire, copper soft bare wire 1mm2


1





Discharge rod


1





Retractable insulation rod


1





Insulation ladder


1 piece





Overhead air conditioner


1 set





Walkie talkie


2 pcs





Toolbox


1 piece





On-site verification of environmental monitoring unit


1 set





Mobile calibration platform management system (including computer, printer)


1 set
