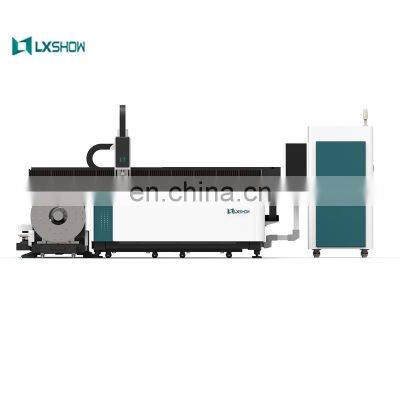

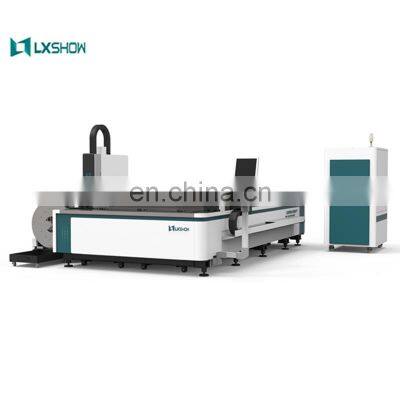

7% PRICE OFF Star Products Fiber Laser Cutting Machine Cut Pipe / Metal Tube Fiber Laser Cut Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7% PRICE Manufacturer Outlet 1000w Cnc Lazer Machine for Metal Pipe Cutting / Fiber Laser Cutting Machine Stainless PipeNegotiableMOQ: 1 -
2021 TOP SELLER High-end 1000w 2000w 3000w 4000w Fiber Laser Cutting Machine With Tube / Fiber Laser Cutting Machine for PipeNegotiableMOQ: 1
-
7% PRICE OFF Affordable 1000w 2000w 3000w 4kw Tube Laser Steel Sheets Cutting Machines / Laser Fiber Tube-sheet Cutting MachineNegotiableMOQ: 1
-
2021 LXSHOW Best Price 1kw 2kw Fiber Laser Cutting Machine With Rotary Axis / Fiber Sheet&tube Laser Cutting MachineNegotiableMOQ: 1
-
2021 LXSHOW 15 Years Professional Focused on Fiber Laser Cutter With Tube / Cutting Carbon Fiber Tube Machine PriceNegotiableMOQ: 1
High Quality Fiber Laser Cutting Machine for Metal Cut
LX3015FT is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
Our advantage
(1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
(3). High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
(7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys
Model | LX3015Ft（LX3020FT LX4020Ft LX6020FT） |
Working area | 3000*1500mm |
Miximum length of pipe(Options) | 3000mm(or)6000mm |
Limits of pipe(Customized) | Round tube:Φ20mm~Φ120mm; Square tube :Φ20mm~80mm; Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm |
Laser type | Fiber laser generator |
Laser power(optional) | 500~4000W |
Transmission system | Double serve motor &gantry&rack&pinion |
Maximum speed | ±0.03mm/1000mm |
Pipe cutting system(optional) | yes |
Maximum speed | 60m/min |
Maximum accelerated speed | 1.2G |
Position accuracy | ±0.03mm/1000mm |
Reposition accuracy | ±0.02mm/1000mm |
Graphic format supported | CAD,DXF(etc) |
Power supply | 380V/50Hz/60Hz |
* We offer free samples to our customers
If you have any questions, please contact us for the first time, we will provide you with the most perfect solution
* About Shenzhen Ruicheng Technology Co., Ltd.
is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures.
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures.
LX3015FT Fiber Laser Cutting Machine Configurations advantage
1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.
2.Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4. Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4. Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don’t know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s
business travelling ticket / room and board/ 100 USD per day.
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don’t know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s
business travelling ticket / room and board/ 100 USD per day.
Q:Why the machine price not include fiber source and tube parts ？
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .
