Shen Zhen Ke Gu Technology Co.,Ltd: Shenzhen, Guangdong, China; Main products: Micro brushless dc motor(BLDC motor), precision gearbox, micro transmission of system

Home > Products > Micro Worm gear motor > KG-1218FN20 3v 6v N20 Worm Gear Motor 12mm Micro Right Angel Gear Reduction Motor With Encoder From Kegu Motor

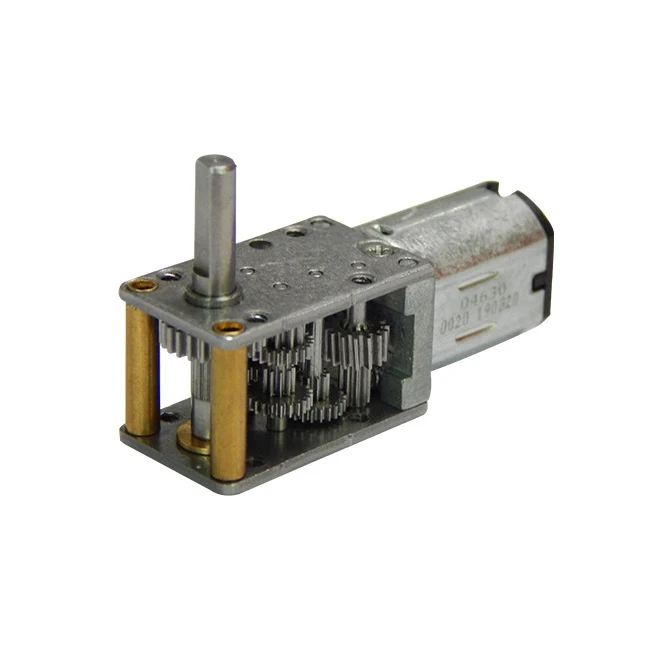

KG-1218FN20 3v 6v N20 Worm Gear Motor 12mm Micro Right Angel Gear Reduction Motor With Encoder From Kegu Motor

FOB Price

US$ 3.7 - 19.5 / Piece

1 Piece(Min. Order)

Port shenzhen/hongkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	kegumotor	Place of Origin	China
Model Number	KG-1218FN20	Type	Gear Motor
Certification	CCC, CE, ROHS	Torque	300g.cm
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Permanent Magnet
Efficiency	IE 1	Protect Feature	Explosion-proof
Voltage(V)	3	Output Power	0.01
Continuous Current(A)	0.01	Speed(RPM)	100
Commutation	Brush

Product Description

12mm worm gearbox 3.7v 4v 6v 12v Micro DC Gear Motor for robot toys

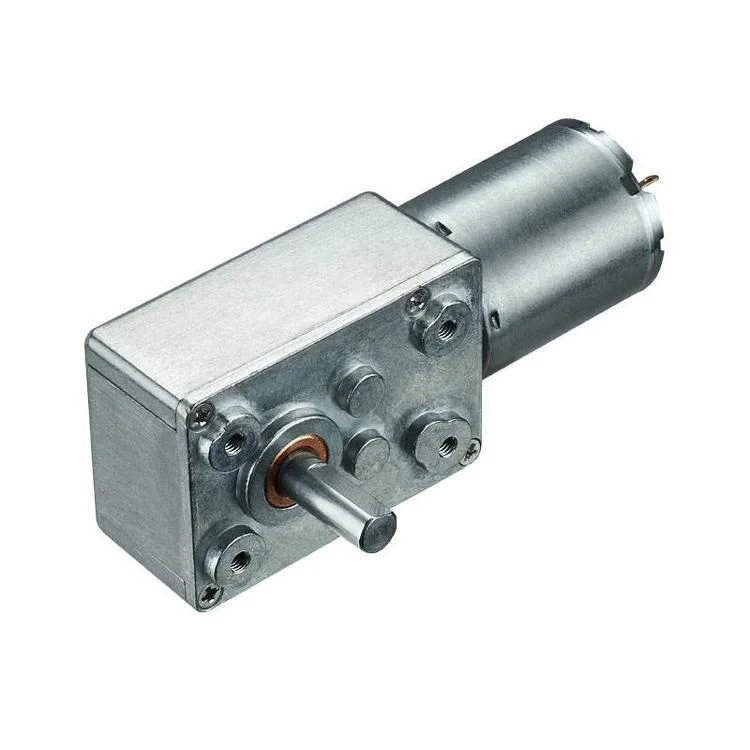

12mm worm gear motor KG-1220FN20 metal gear 12v electric motor for door-lock

Volt	24V
No Load Speed	15rpm
Rated Speed	14rpm
Rated Torque	20.5kg.cm
Application	Robot , door lock , toy, cabinet lock

SPECIFICATION:

12mm worm gearbox 3.7v 4v 6v 12v Micro DC Gear Motor for robot toys

1.Rated Voltage:DC 3V -12V 2. Speed No load: 17~3000RPM
3.Diameter 12mm,length 20+15mm 4.Weight: 16g Approx 5.Application:Robot, Home Appliance, Door Lock,medical equipment, automobile
systems, communication equipment, digital cameras and domestic appliances. etc 6.Customized,Adjust the performance at
free(voltage,speed,torque,ECT.)

Kegu Motor Provide intelligent lock solution

Special imported steel for gear material, mini
12mm robot 12v dc gear motor with gearbox and gear reduction

12*20mm worm gearbox plus n20 per magnet DC motor&24 mm brushless motor
Small size dc gear motor with low speed and big torque
12*20mm gear motor provide 1.0 Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder,11ppr

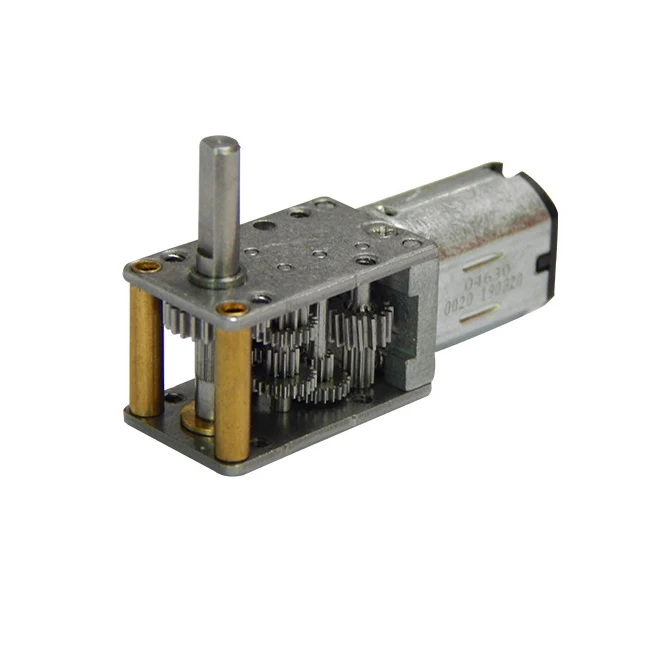

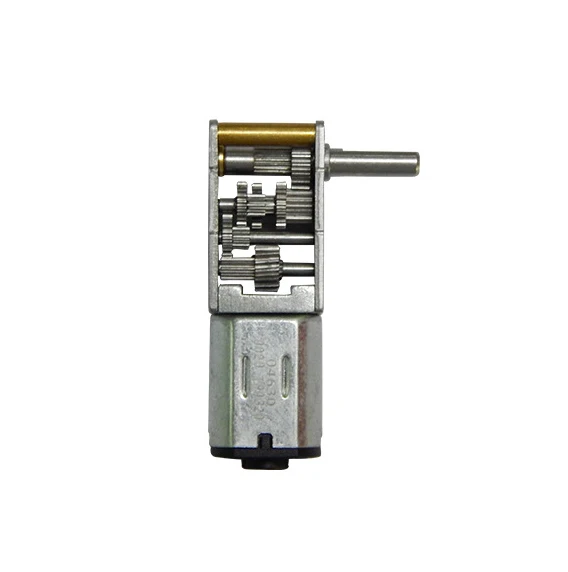

Detailed Images

This series of motors are used in intelligent switch, smart door lock, fingerprint lock driver.The control system of various locks and fingerprint lock can be controlled by mobile APP.

Size Information

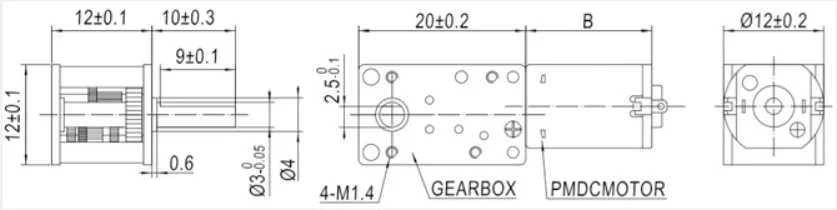

Drawing of 12mm worm gear motor

Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Recommended by seller

low rpm 3v 6v 9v 12v dc 12mm N20 gear motor with encoder and gearbox$2.10 / Piece22 Pieces

BL4260 dc 12v 18v 24v 100 200 250 300 watt 80kg.cm 90kg.cm 100kg.cm high torque 42mm brushless planetary gear motor$11.80 - $22.00 / Piece1.0 Pieces

28mm Brushless Planetary Gearbox Electric Motors 12v/24v DC Planetary Gear Motor for Robot$7.80 / Piece1 Piece

25mm dc gear motor 6v 12v 370 dc brush motor with 25mm metal gearbox$2.27 - $7.50 / Piece1.0 Pieces

GM25-2430 Medical Instrument 25mm Dc Gear Motor 6v Dc Brushless Motor With 25mm metal Gearbox$2.27 - $7.50 / Piece1.0 Pieces

Mini DC Gear Motor 12V 24V D Shaft 37mm Gearbox Motor Reduction Small Electric Motor with Encoder$3.00 - $7.50 / Piece50.0 Pieces

12mm electric small plastic planetary gear motor 3v mini n20 dc motor with plastic gear reduction$2.37 / Piece5000 Pieces

Right angle GM24-N20VA flat N20 carbon brush dc 1.5v-12v 50rpm gear motor for robot$2.57 / Piece1 Piece

planetary gearbox motor, 16mm dc gear motor with encoder$2.50 / Piece1 Piece

low noise mini 6mm dc coreless 1.5v 3v 3.7v plastic planetary gear motor for smart lock$3.16 / Piece1 Piece

Kegu motor 22mm planetary gearbox 12v 24v DC Planetary Gear Motor$4.91 / Piece1 Piece

low speed 13mm DC 12V 6V dc geared motor with 13mm gearbox for robot$2.30 / Piece1 Piece

Packing&Shipping

After Sales Service

The reliability and stability of the product is an important index to evaluate the technical level of the product.In order to accurately analyze, evaluate and verify the performance of the product.

So Kegu motor will reply customer in 2 days after receive
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.

Company Introduction

Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.The company strictly implements the IS9001:2015 management system.

Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.

Our Services & Strength

R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.

Provide customized, design, development, production and assembly services of micro gear transmission system.

Certifications

FAQ

Q:1.What kind of motors you can provide?

A:Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
