Home > Electrical & Electronics > Electric Motor > DC Motor > Hot Sale 4mm High Speed 30000rpm 2v 3v 4v 5v dc Micro Coreless Vibrator Motor Used for Mobile Phone 0408
Hot Sale 4mm High Speed 30000rpm 2v 3v 4v 5v dc Micro Coreless Vibrator Motor Used for Mobile Phone 0408
US$ 0.36 - 5.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
kegumotor
Place of Origin:
China
Model Number:
KG-0408
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
7 days
Related Products
-
Micro 3V 30000rpm Vibration 0610 Mini Round Type Dia 6mm Coreless dc MotorUS$ 0.36 - 5.5MOQ: 1 Piece -
0720 Hollow Cup Motor 7mm Coreless dc Motor ,7x20mm Motor for Toy HelicopterUS$ 0.46 - 5.5MOQ: 1 Piece
-
0716 Low Current Consumption 7mm RC Drone Parts 3.2V Micro dc Coreless Motor 33000rpm From KegumotorUS$ 0.46 - 5.5MOQ: 1 Piece
-
8mm 0816 12v 22000rpm Driving Micro dc Coreless Motor High Quality 0820 23700rpm Manufacture 8mm Coreless Miniature Dc MotorUS$ 0.46 - 5.5MOQ: 1 Piece
-
3.7V 0610 High Torque Diameter 6mm Micro dc Coreless Drone Hobby Motor 35000 Rpm 40000 RpmUS$ 0.46 - 5.5MOQ: 1 Piece
Brand Name
kegumotor
Place of Origin
China
Model Number
KG-0408
Type
Gear Motor
Certification
CCC, CE, ROHS
Torque
5g.cm
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Explosion-proof
Voltage(V)
3
Output Power
0.01
Continuous Current(A)
0.01
Speed(RPM)
20000
Commutation
Brush
Product Description
4mm 2v mini brush 0408 coreless dc motor 0.5W for home appliance
0408 4mm coreless dc 2v electric motor for water pump and small electric drill
SPECIFICATION:
1. Voltage: DC 2V
2. No load speed: 20000±10%rpm
3. No load current: 0.01A
4. Diameter 4mm, length 8mm, shaft dia 1mm
5. Material: plastic gear and metal DC motor
6. Weight: 200g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc
8. Customized,Adjust the performance at free(voltage, speed, torque)
Kegu Motor Provide intelligent lock solution
Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque
* Low Noise
* Longer life time up to 200,000 times unlock
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque
* Low Noise
* Longer life time up to 200,000 times unlock
Detailed Images
Size Information

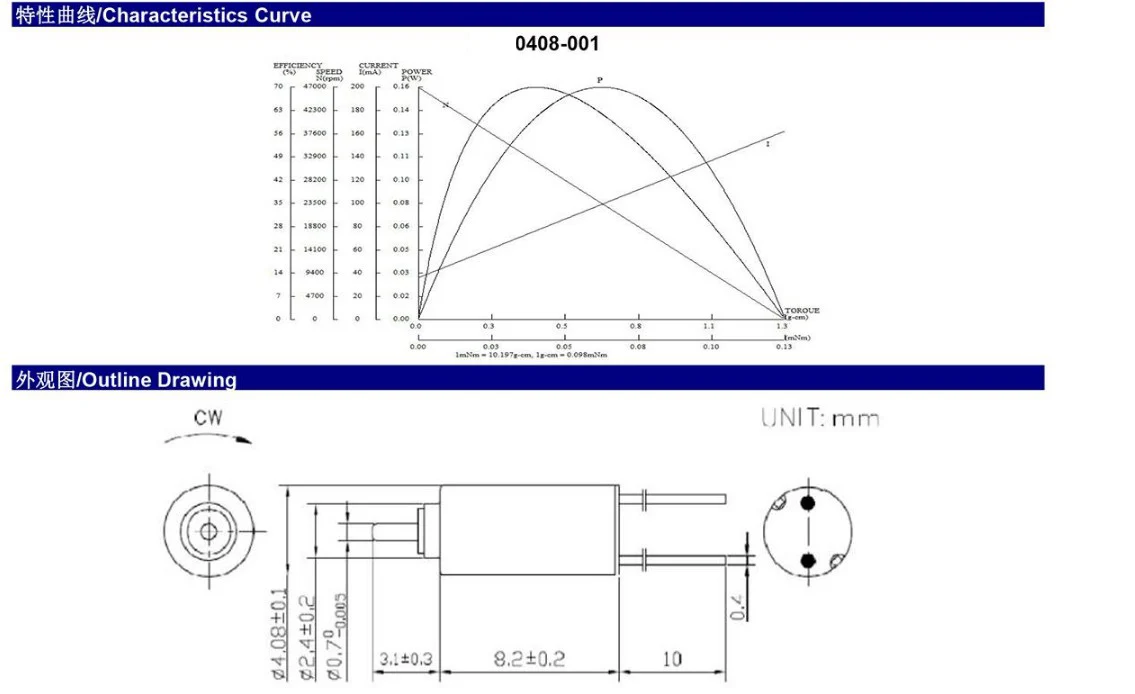

Drawing of 4mm coreless dc motor

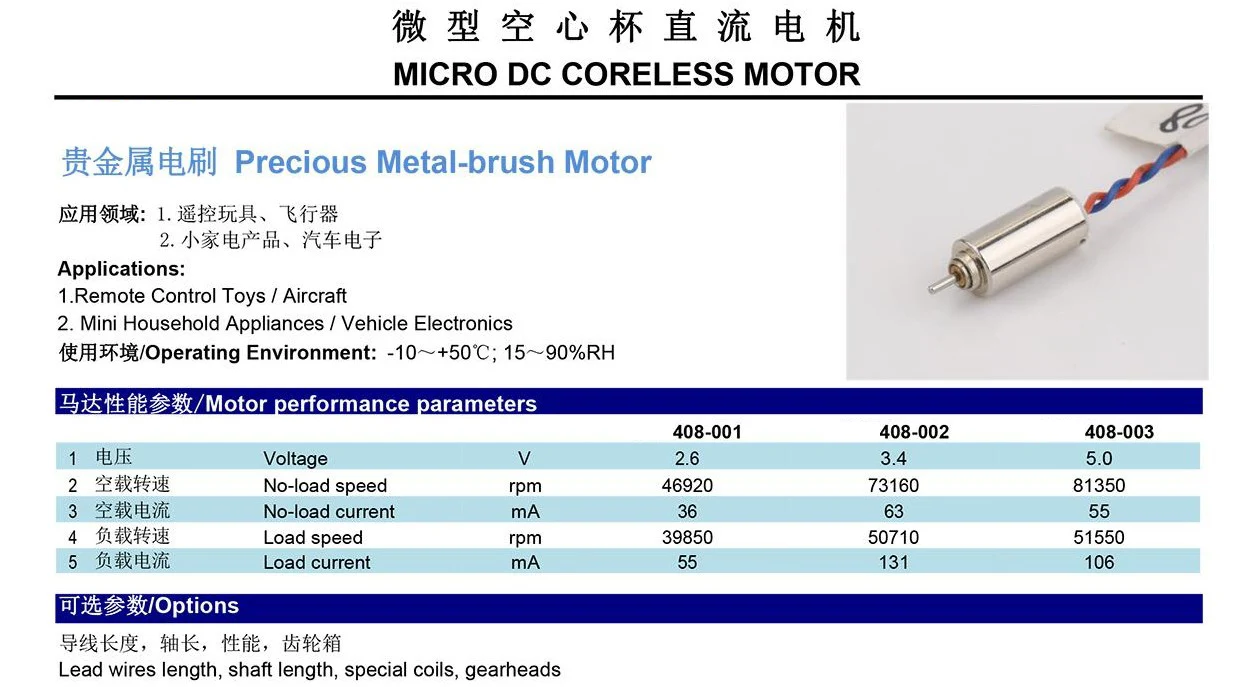

0408 4mm coreless Motor description 4MM micro coreless dc motor Brand Kegumotor
Item 4mm coreless motor Location Shenzhen Model 0408 Load current 27mA
Item 4mm coreless motor Location Shenzhen Model 0408 Load current 27mA
Load power 0.01w Load volt 1.5V Size Φ 4mm*8mm Load speed 9800RPM
Load Torque 0.4G.cm Certificate ROHS/ISO9001 Application Blood pressure meter
Volt range 1.5-4.2V
0408 4mm coreless motor outline
Load Torque 0.4G.cm Certificate ROHS/ISO9001 Application Blood pressure meter
Volt range 1.5-4.2V
0408 4mm coreless motor outline
Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
