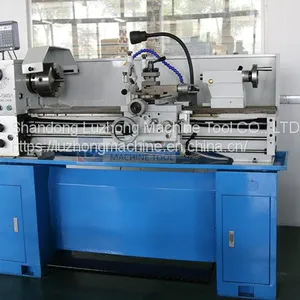

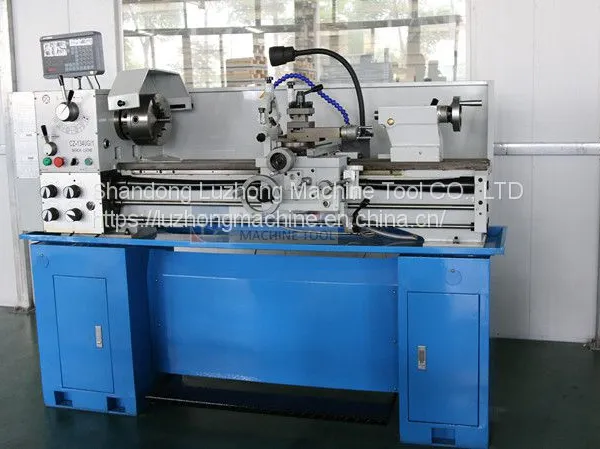

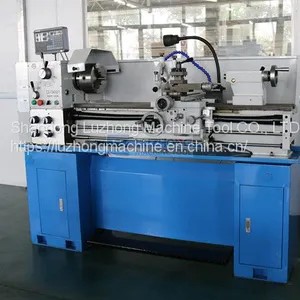

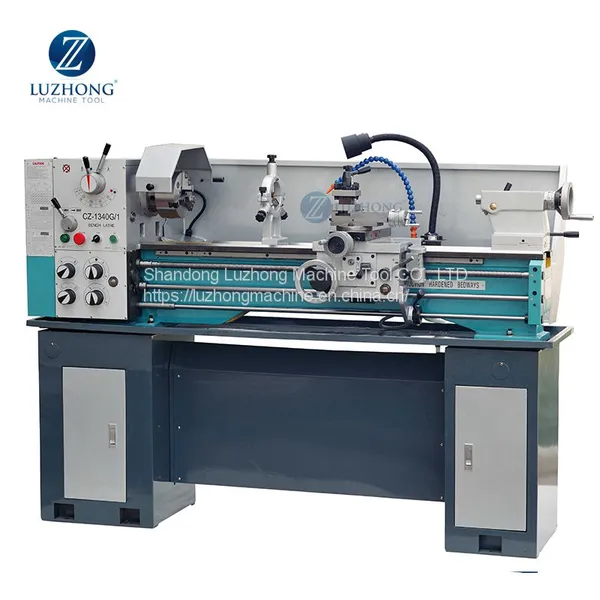

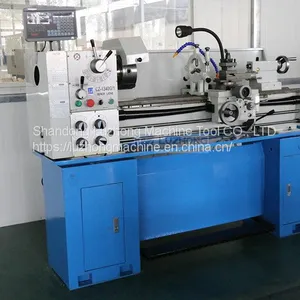

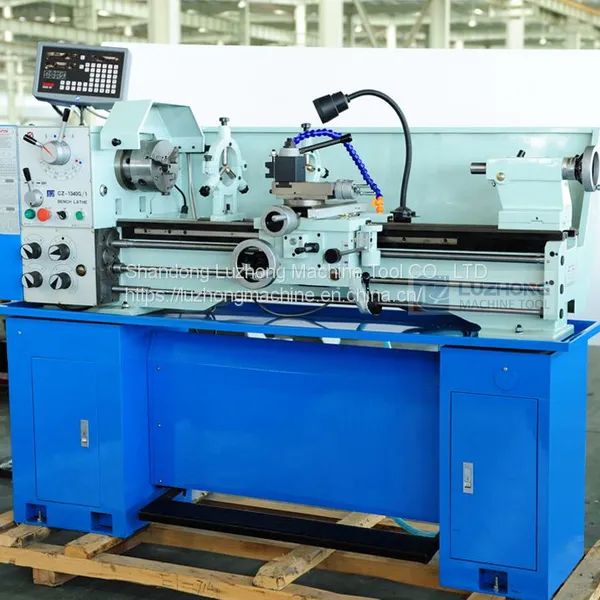

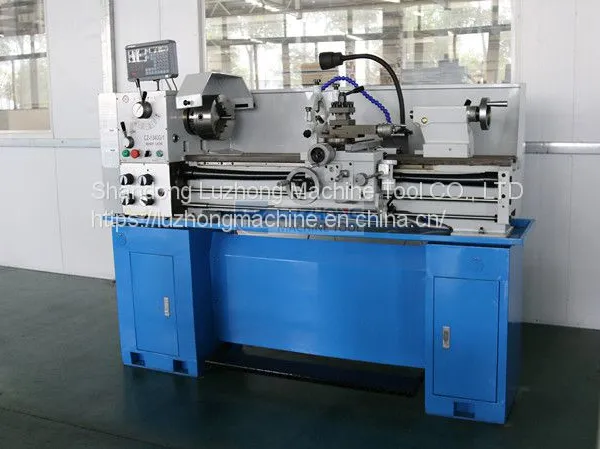

CZ1237V/CZ1337V Horizontal metal precision Bench Lathe Machine Lathe Machine
Product Description
The main performance characteristics：
1.Engineered from high grade castings
2.V way bed ways induction hardened and ground
3.Gap bed
4.Cross and longitudinal interlocking feed, enough safety
5.ASA D4 cam-lock spindle nose
6.Various thread cutting function
Product Parameters
Specifications |
CZ1237V |
CZ1337V |
|
Swing over bed |
mm |
305 |
350 |
Swing over carriage |
mm |
173 |
215 |
Swing over gap |
mm |
440 |
485 |
Width of bed-way |
mm |
182 |
|
Distance between centers |
mm |
940 |
|
Spindle taper |
M.T.5 |
||
Spindle bore |
mm |
38 |
|
Step of speed |
Variable speed |
||
Range of speed |
rpm |
Low:70-520 High :520-1700 |
|
Head nose |
D1-4 |
||
Metric thread |
mm |
26kinds (0.4~7 ) |
|
Inch thread |
TPI |
34kinds(4~56) |
|
Module thread |
MP |
/ |
|
Diametral thread |
DP |
/ |
|
Longitudinal feeds |
mm/r |
0.052~1.392 |
|
Cross feeds |
mm/r |
0.014~0.38 |
|
Diameter of lead screw |
mm |
22(7/8”) |
|
Pitch of lead screw |
3mm or 8T.P.I |
||
Saddle travel |
mm |
810 |
|
Cross travel |
mm |
150 |
|
Compound travel |
mm |
85 |
|
Barrel travel |
mm |
95 |
|
Barrel diameter |
mm |
32 |
|
Taper of center |
mm |
MT3 |
|
Motor power |
Kw |
1.1(1.5HP) |
|
Coolant motor |
Kw |
0.04(0.055HP) |
|
Machine(L×W×H) |
mm |
1780×750×760 |
|
Stand (right)(L×W×H) |
mm |
400×370×700 |
|
Stand (right)(L×W×H) |
mm |
300×370×700 |
|
Machine(N.W/G.W) |
Kg |
390/440 |
|
Stand(N.W/G.W) |
Kg |
70/75 |
|

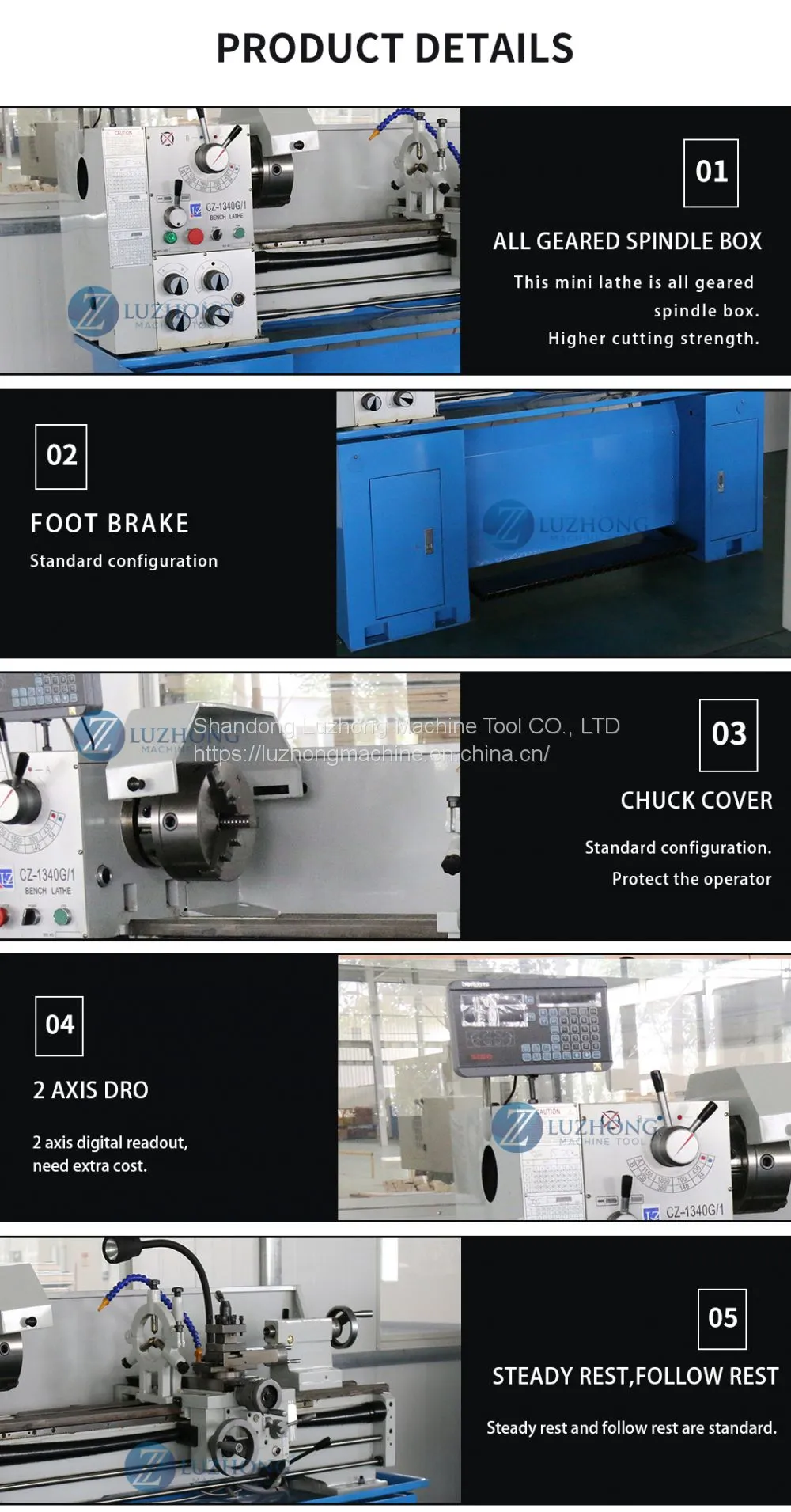

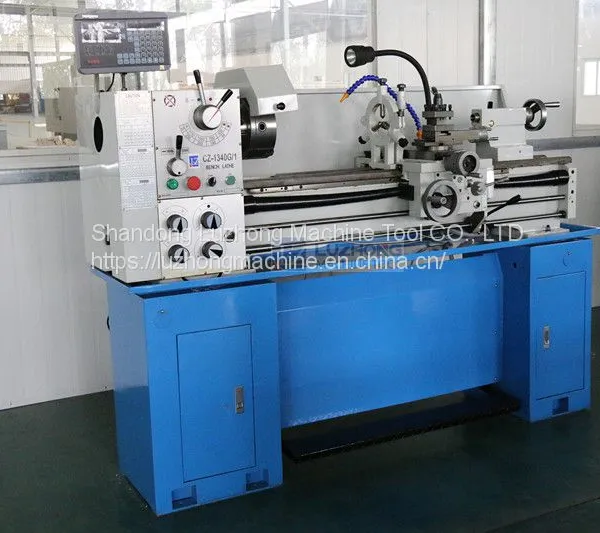

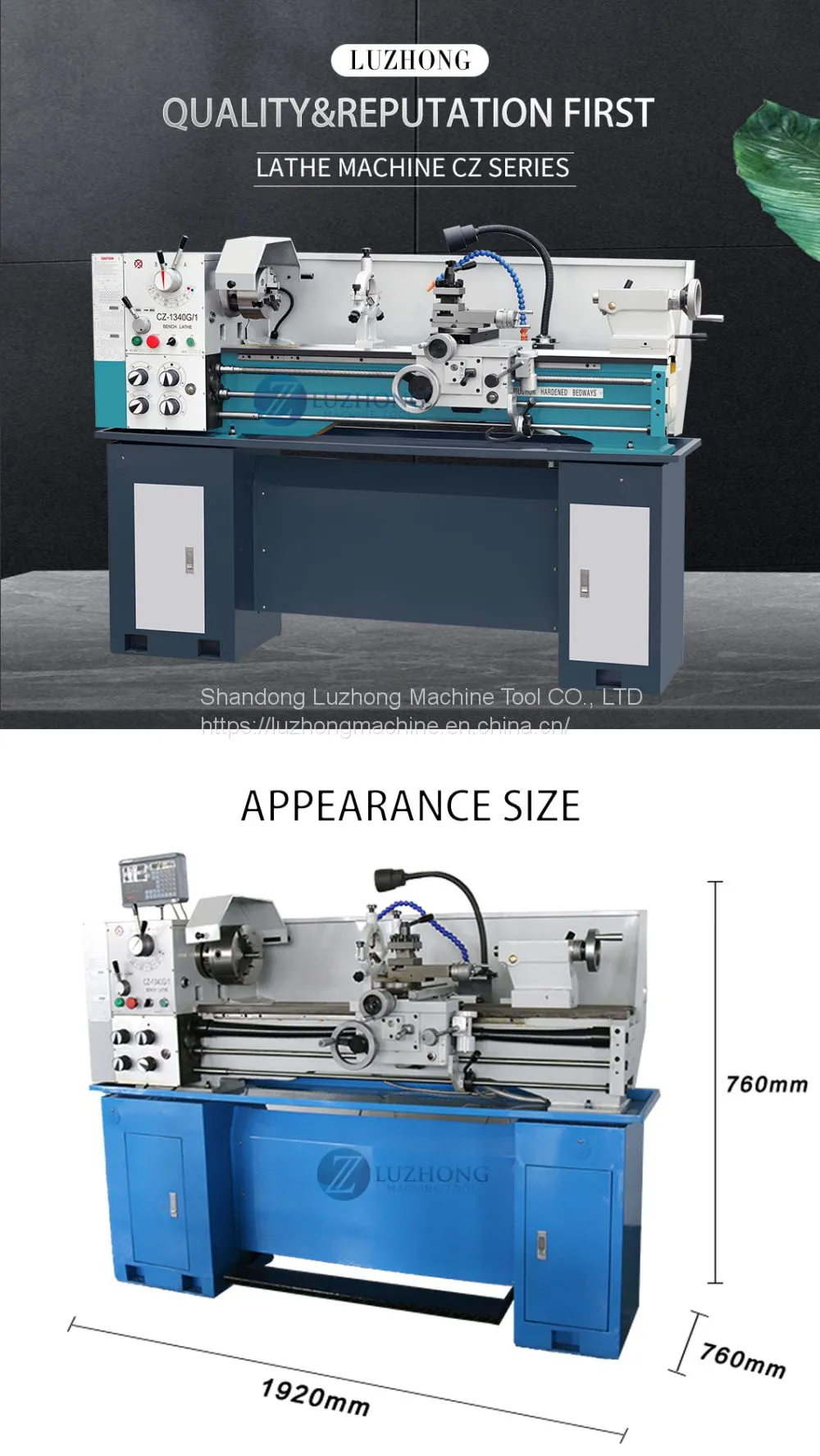

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
