High performance mini spot welder laser welding machine jewelry



Company Information

High performance mini spot welder laser welding machine jewelry



Tip-top Technology (Shenzhen)Co.,Ltd is a branch company with engineers and research and development for 10 years. It is a professional manufacturer engaged in the research, development, production and service of fiber laser marking machine. Fiber cutting machine,laser welding machine,fiber marking machine,CNC router, laser engraving machine, and plasma cutting machine.



Product Description

High performance mini spot welder laser welding machine jewelry

Jewelry welding machine Introduction:


The core part of Laser welding machine is the condensing cavity, which is made by imported ceramic. The other parts including dual metal cavity, power switch, touch-screen operation panel, CCD monitor system, LED-screen, work table, water chiller etc.



Jewelry welding machine Parameter:



Machine model

TPH-200W

Max laser power

200w

Laser wavelength

1064nm

Max power of single impulse

90J

Welding depth

0.1-3.0mm

Pulse width

0.1-20ms

Laser welding frequency

0-50Hz

Adjustable scope of laser spot

0.2-3.0mm

Power Consumption

≤6KW

Cooling system dimensions

Water cooling

Observation system

10X Microscope or HD CCD

Power required

220V±10%/50Hz

Consumable

Xenon lamp,Filter element,Protective lens,Argon

Working temperature

55°F(13°C)-82°F(28°C)

Working Humidity

5%-75%



Jewelry welding machine Features :



1.High laser power, controllable electron current and pulse width. With LED-screen, all the parameters are visible.
2.High-quality cavity, scientific cooling system and high efficiency for photoelectric conversion, all these ensure a long service life.
3.Professional motion control system, which makes sure the automatic or semiautomatic spot-welding, butt-welding, stitch-welding etc.



Jewelry welding machine Style :

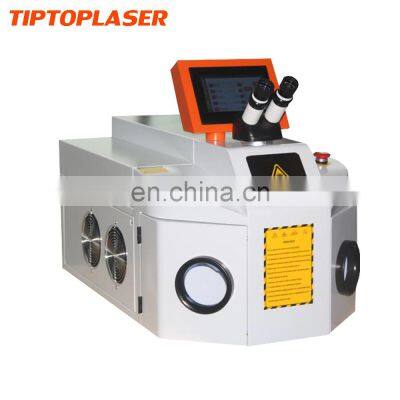

A . Standard Type

High performance mini spot welder laser welding machine jewelry

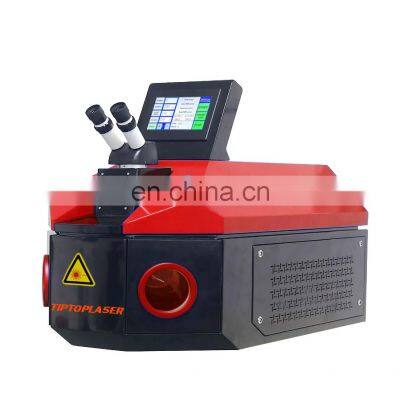

B . Desktop Type

High performance mini spot welder laser welding machine jewelry

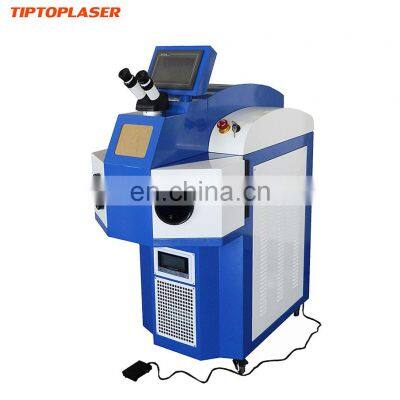

C . Split Type

High performance mini spot welder laser welding machine jewelry

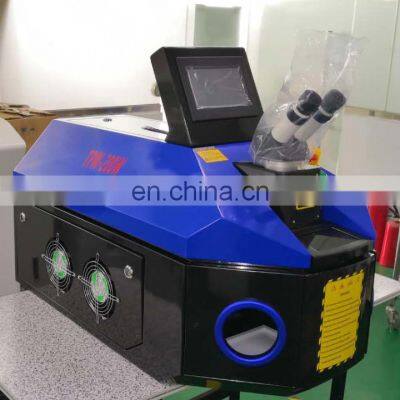

D . Jewelry welding machine with CCD system

High performance mini spot welder laser welding machine jewelry

High performance mini spot welder laser welding machine jewelry



Samples show

High performance mini spot welder laser welding machine jewelry

High performance mini spot welder laser welding machine jewelry
