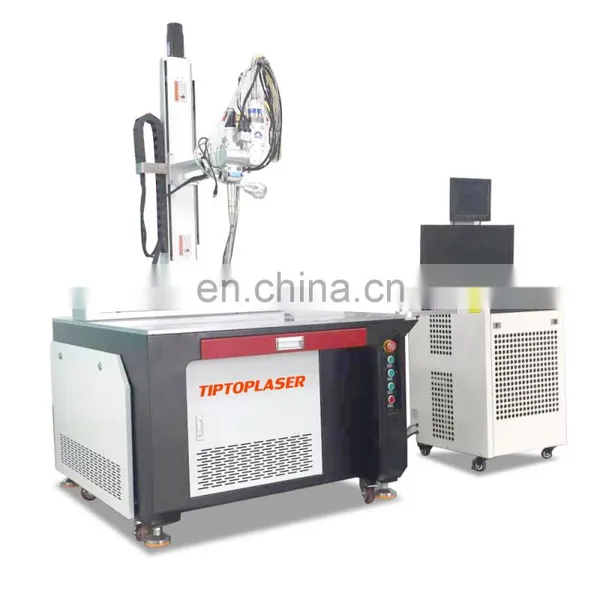

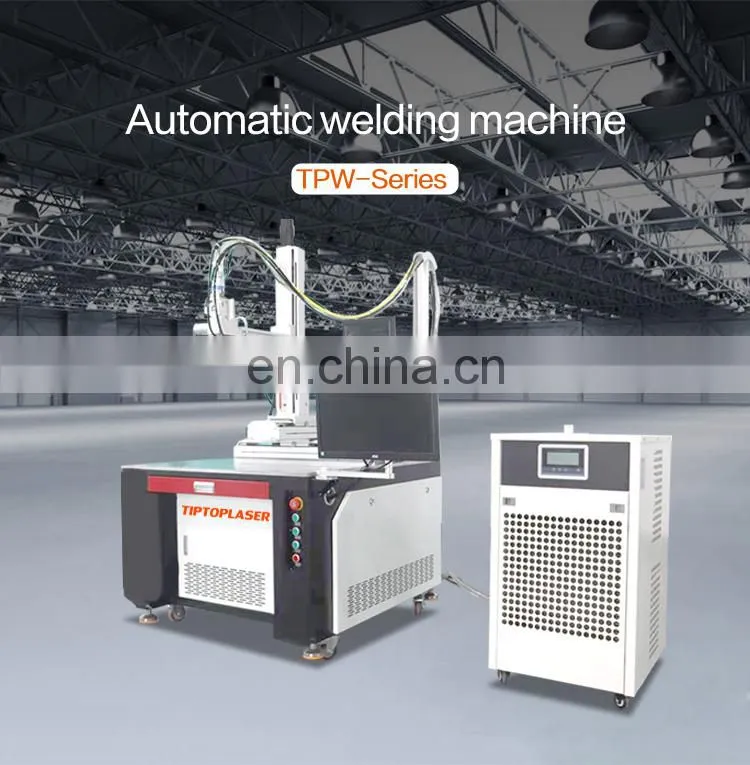

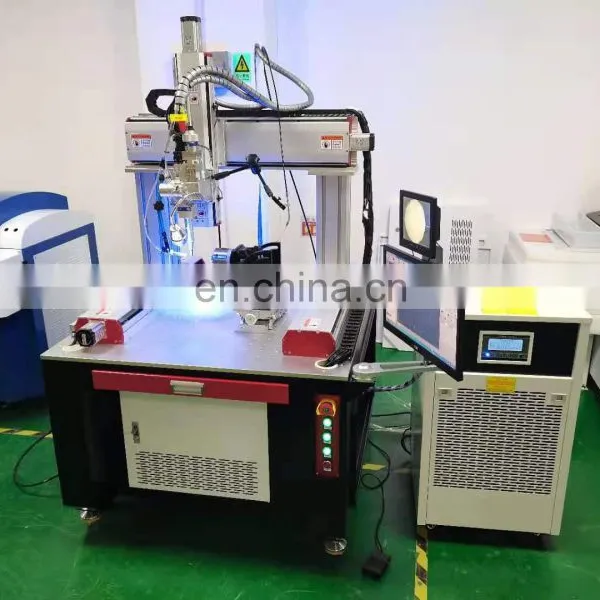

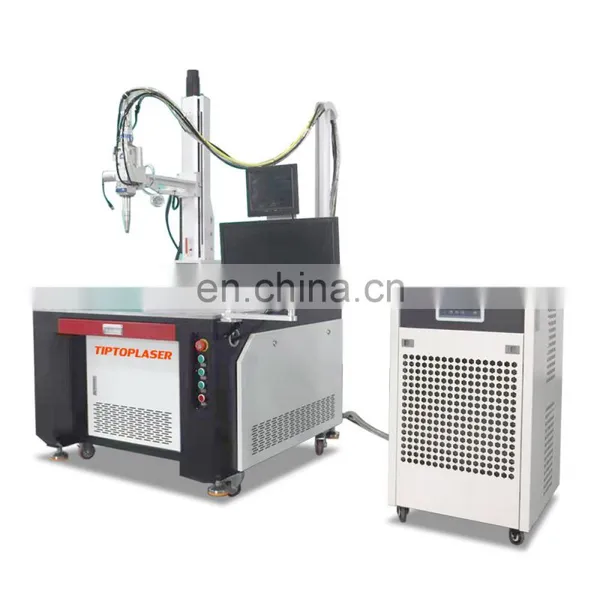

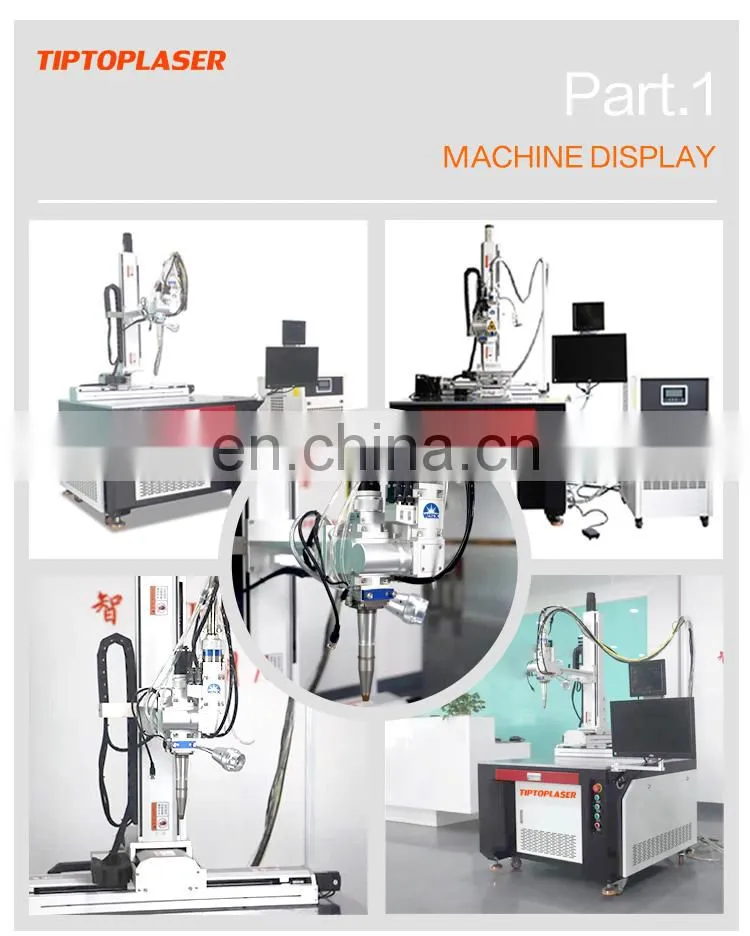

Four axis automatic laser welding machine

 This machine adopts 1000w-3000w fiber laser, which has high electro-optical conversion rate and long laser life. During its normal life, there is no need to replace any components. Fiber laser has the advantages of deep welding depth, high strength, and maintenance-free. This machine is equipped with a swing welding head and a wire feeding device, and can be equipped with a multi-axis motion platform and a rotating fixture according to product needs, which is suitable for welding more products.

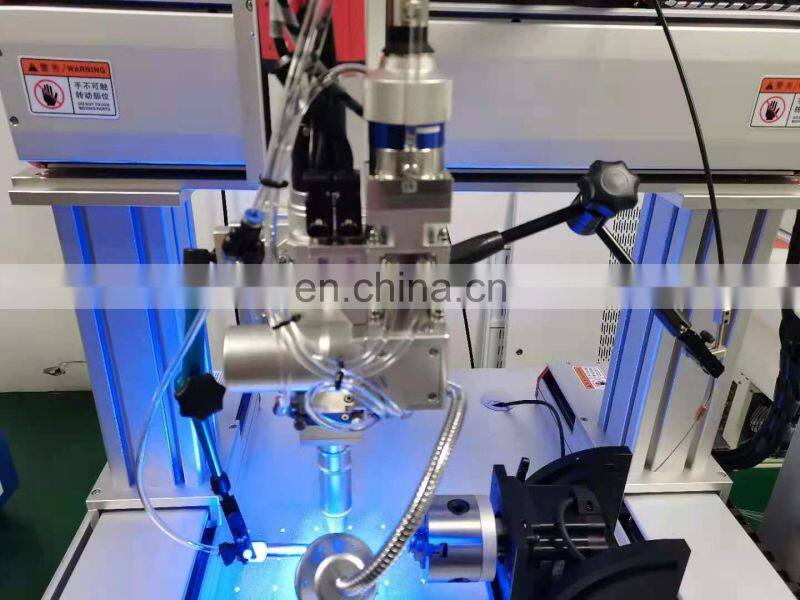

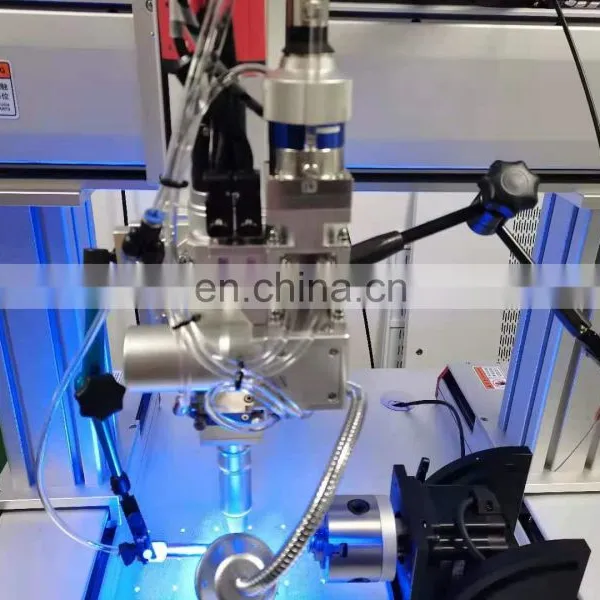

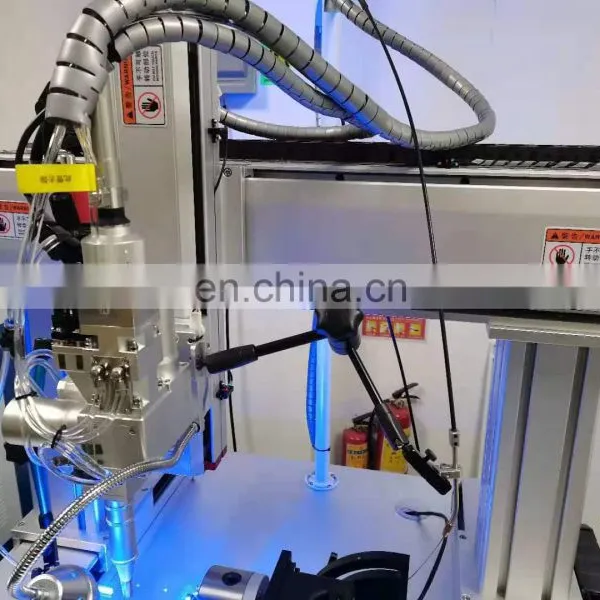

 1. Welding Head

1.The drawer type protective lens installation method is convenient for the replacement of the protective lens;

2. Equipped with an infrared beam module and a CCD camera module to quickly find the focus position and watch the welding effect.

3. Wobble welding head, suitable for more product needs.

2. Moving Axes

Equipped with X/Y/Z motion axis, suitable for welding products of different sizes, and optional rotating chuck to achieve 360° arc welding.

3. Laser & Industrial Computer

Using JPT fiber laser, laser output stability, high electro-optical conversion rate, maintenance free.

Brand industrial computer with powerful performance and many expansion interfaces, suitable for long-term continuous and stable use.

4. Pedal Switch

Equipped with pedal switch, which is convenient for operation and improves work efficiency.

5. Water Chiller

Adopt well-known brand chiller system, large flow, high lift, good cooling effect.

 Advantages Of Laser Welding Machine:

1. Accurately and precision welding machine, can welding small and complex font and LOGO, fast speed, no color difference after welding, no trace, no need to handle, beautiful appearance.

2. No raised welding spot on welding surface. Do not need polishing grinding process, save work time. Appearance is beautiful.

3. Laser welding Processing without noise, non-pollution

4. Specific to advertising industry, special long light path, 360 degrees of arbitrary rotation, larger scale range.

5. Welding machine Optional with a CCD monitor, the welding effect is more clear and intuitive.

Continuous fiber laser welding VS Yag pulse laser welding

1. The fiber continuous laser welding machine uses 500W-2000W laser, the laser has a long service lifeand the service life can reach 100,000 hours.

2. The electro-optic conversion efficiency is high, and the energy of the power shaving is 25%-30% converted into laser, and the fiber conversion rate is more than 10 times that of the YAG laser.

3. The whole machine has no consumables.  YAG pulse welding machine should replace the xenon lamp and lens regularly.

4. The whole machine has low energy consumption, saves electricity, high stability, maintenance-free, and low cost of use.

5. The laser welding energy density is high, welding speed is four times that of YAG pulse.the weld seam is thin,the thermal deformation is small, and the heat affected zone is narrow and deep.

6. Optical fiber output, easy to match with automated workbench or robot to improve production efficiency,and can meet 24 hours of continuous work.

7. Customizable large workbench and XYZ axis travel.

 1. Stainless steel: 316/304/430/201 two pieces stacked together can be up to 1mm thick each direct breakdown welding, butt welding can be two pieces together can be up to 5mm thick direct welding, sealing welding thickness in the range of 0.3mm-5mm can be welded, the welding tension can be up to 2 tons, sealing pressure test can be up to 20 kg.
