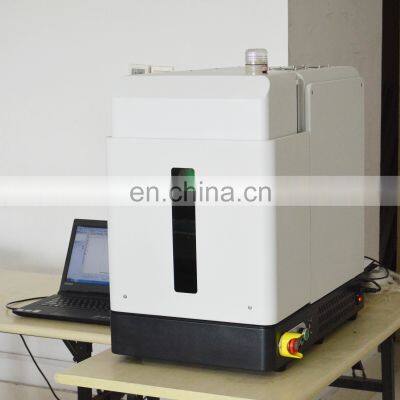

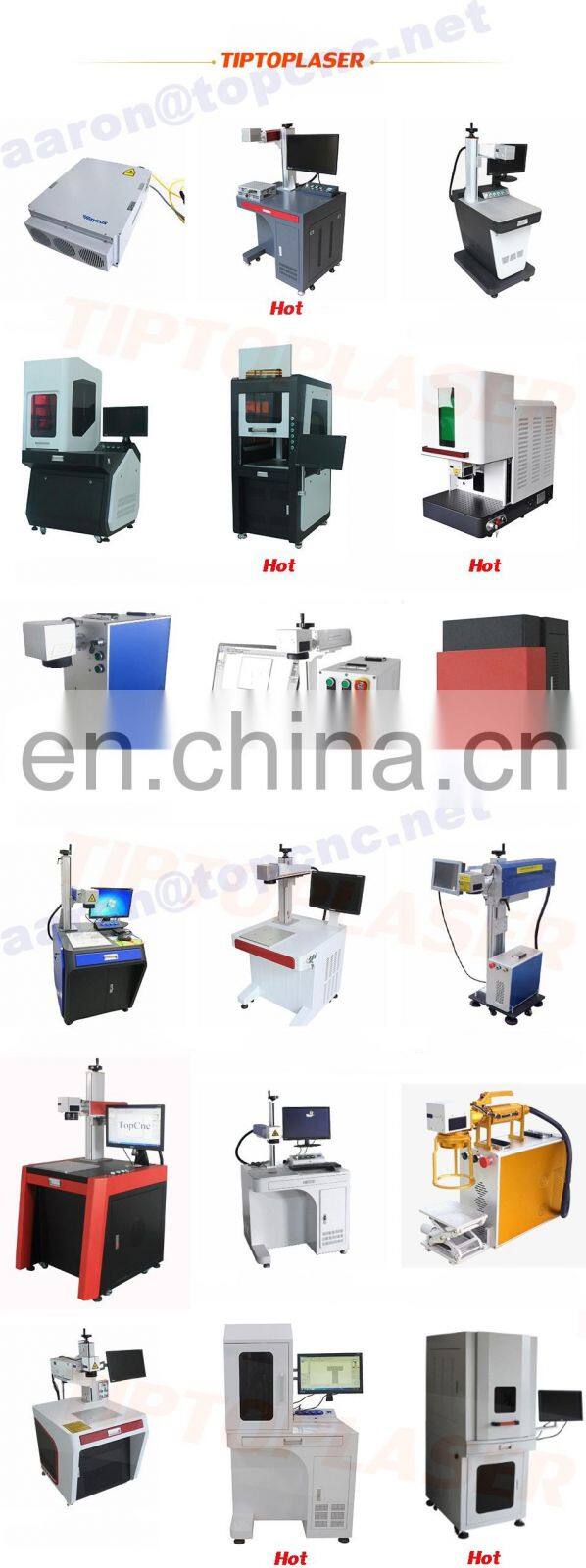

Competitive Price 50W Fiber Laser Enclosed Metal Cutting Machine For Jewelry

Machine Parameters

Model

TPF-20W

Working area

110*110(150*150/175*175)mm

Power

20W (optional 30w 50w 60w) Raycus

Max Marking Speed

300characters/s

Height of character 1mm

Wavelength

1064nm

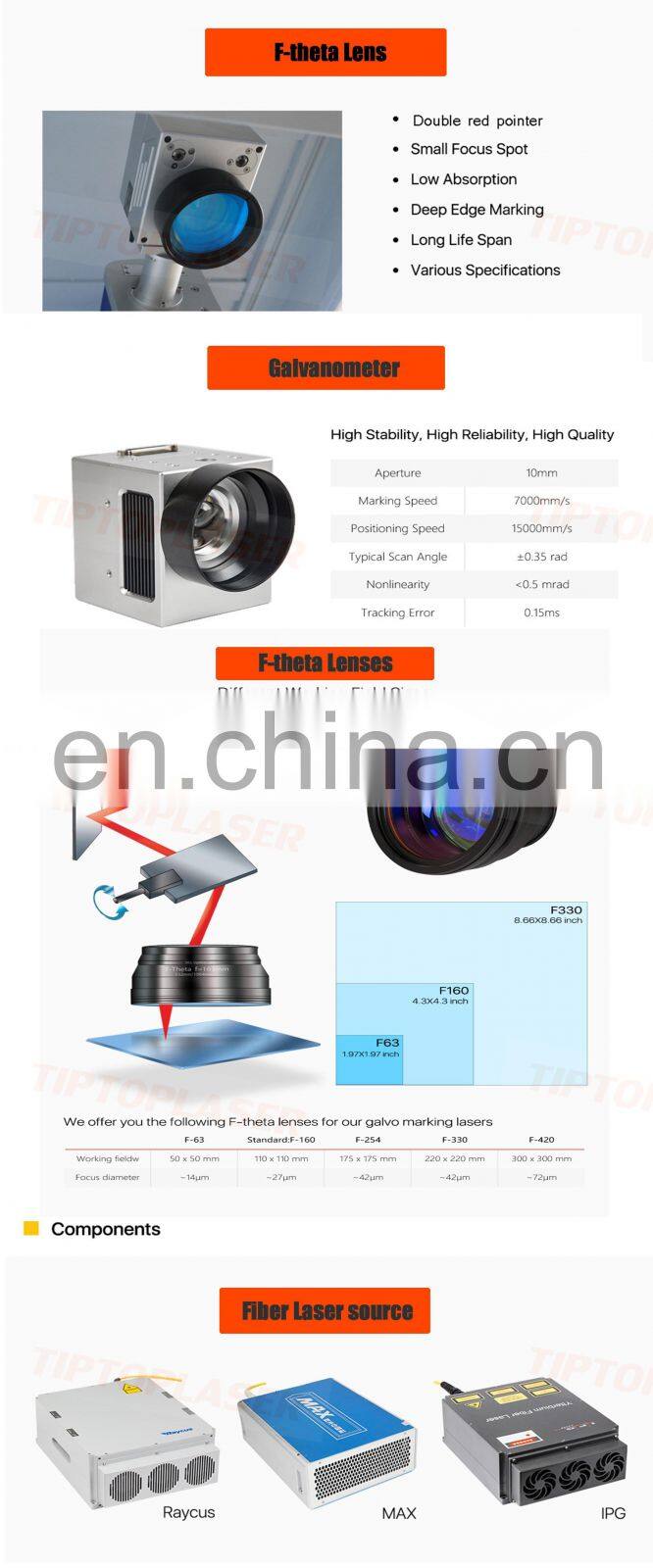

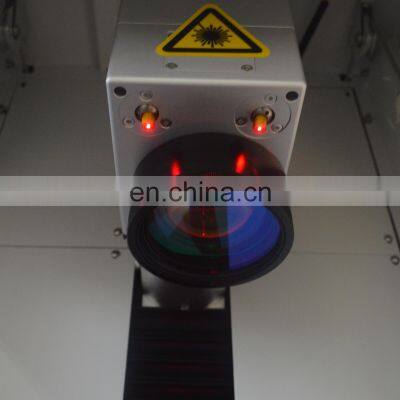

F-θ focus lens head

F =160mm

Operation Software

EZCAD

Repetitive frequency

20kHz-60kHz

Cooling mode

Air Cooling

Pulse width

<100ns

Peak power

25-80KW/10KHz

Marking speed

600-1000 character/second

Mini line width

0.02mm

Location accuracy

<10urad

Graphic Format Supported

PLT,BMP,JPG,PNG,

TIP,PCX,TGA,ICO,DXF,etc

Power supply

110V-220V±10%/50Hz

Power consumption

Less than 800W

Up-down

Electrical

Auto Focus

Yes

Open door protection system

Yes

Rotary

Optional

Laptop

Optional

Working Temperature

-20℃ -40℃

Weight

80kg

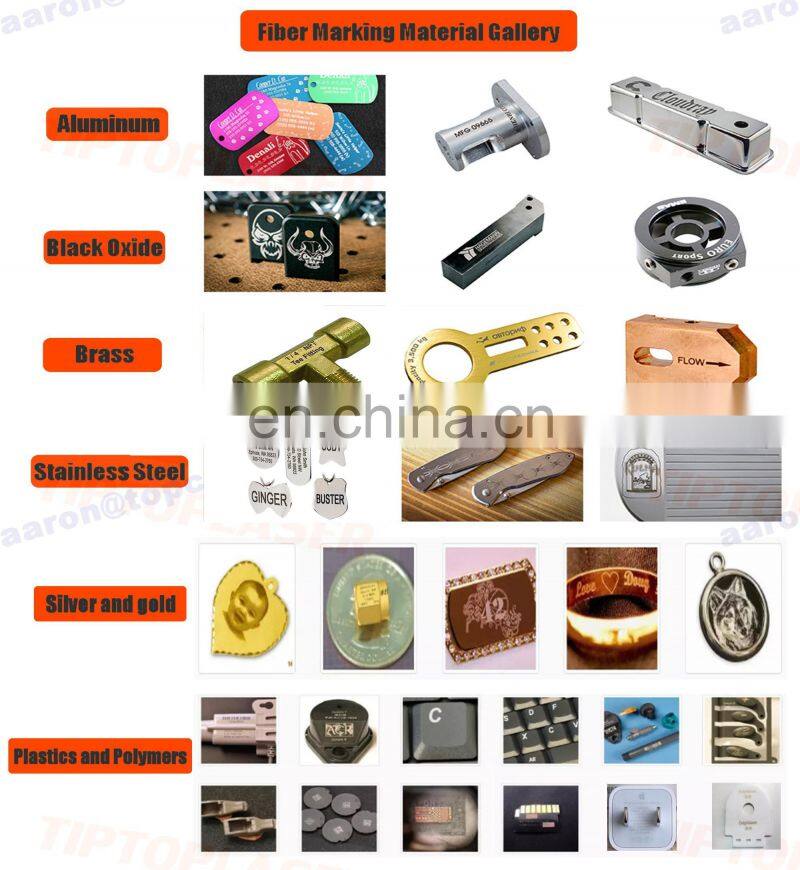

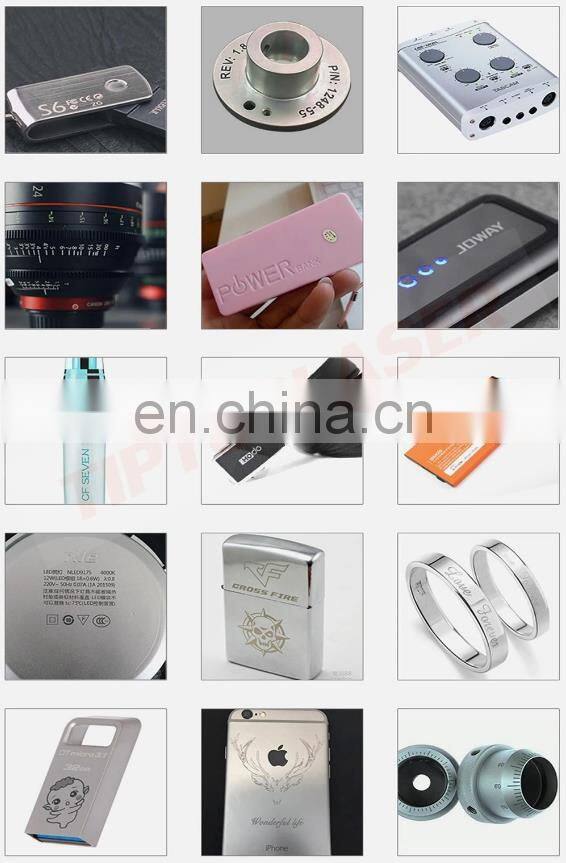

All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.

Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.

Trade terms : FOB / CIF / CIP / DDP / EXW ETC ;

Delivery time: 3-10 days ;

Packaging Details: Three Layers

• Inner Package: Transparent waterproof plastic wrap
• Middle Package: Shockproof form
• Outer Package: Plywood Craft Case

After the machine shipped, the documents, like B/L, Packing List, Commerical Invoice, Commerical Contract, etc will be ready for you.

According to your requirement, we also can provide ISO9001, CE Certificate of Origin for the purpose of picking up the machine and customs clearance at the destination port.

Product Advantage:

• Our professional R&D team dedicated to product development and safety testing.
• Standardized production process, high-precision matching process
• The core components are from top Chinese manufacturers
• Products can be customized as customer demands

Training Services

• Our company offers free training in our factory, we welcome foreign friends to come here to visit our factory and learn about the machine.
• Oversea Engineer service is available, and the engineers will support the users on programming, processing, operations, and routine maintenance.
• Multi-language software, operation CD, and detailed User Manual will be packed together with the machine.

Online Services

• 24 hours (all days) technical support by phone, e-mail, Skype or Computer Remote Control by engineers.

Warranty Services

• 3 years warranty for the machine, Lifetime maintenance with charging the appropriate fee and the cost of replacement parts.

Q: This is the first time I purchase this kind of machine, which type should I choose?

Please let us know what do you want to use the machine for, like the materials and size of it. We will recommend the most suitable machine for you and provide you professional solutions.

Q: How could I get the sample and check the quality?

Q: If some problems happened to this machine during the warranty period, what should I do?
A: We will supply free parts in the machine warranty period if the machine has problems. Meanwhile, we also provide free after-sales service for the machine lifetime, so if you have any questions, just let us know, we will provide you with solutions as soon as possible.

Q: Could the machine be customized according to my requirements?

Q: What are your terms of payment?
A: The following three ways:

• 30% T/T in advance balance before shipment.
• Trade Assurance of Alibaba.
• Western Union
