High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine
Product Description

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine

Function: KN95 mask making machine
Number of operators: ≤1
Production capacity: 40-50 PCS/min
Features: Single motor linkage slicing, high efficiency ultrasound, high production capacity, low failure, easy operation, low maintenance

Power supply and power interface: single-phase AC220v / 50Hz / 4000w, flat triangle plug
Environmental requirements: within Class 10 of clean room

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine
Detailed Images

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine

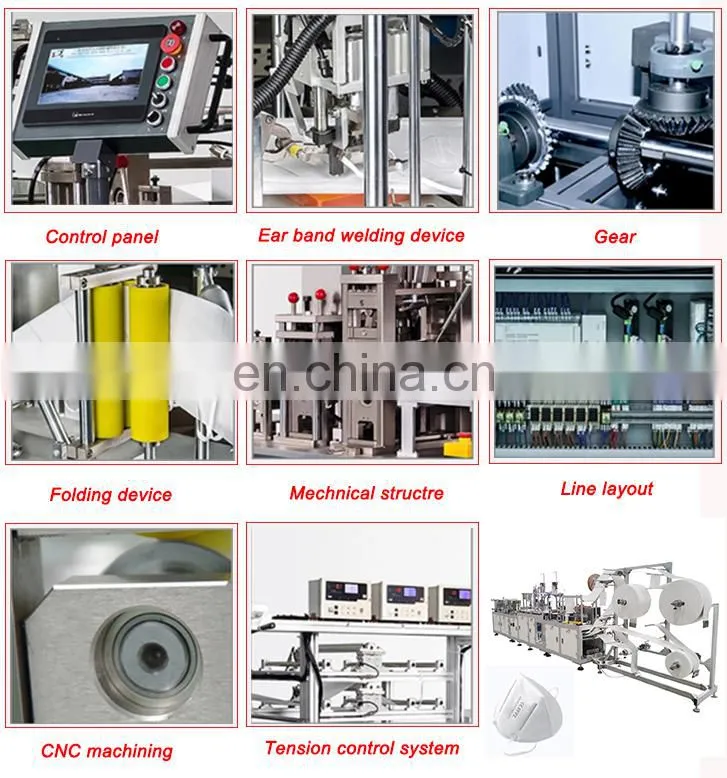

1.Feeding system: aluminum alloy frame structure, beautiful, strong and rust free, to ensure the size of finished products;Stainless steel fixture, adjustable;The setting of tensioning wheel can adjust the tensioning degree of the cloth, so as to effectively guarantee the beauty and flatness of the finished product;Nose clip line conveying group, easy to adjust and maintain.
2.Folding molding system: folding folding device, high folding degree and easy to control, large diameter welding wheel, effectively reduce product deformation.
3. Ear band welding system: automatic feeding and automatic cutting of ear band;Double ultrasonic automatic welding;Realize automatic folding of ear band.
4. High stability, low failure rate and low noise.
5. Imported servo motor, high precision.
6. Electric inspection of feeding, feeding speed is fast
7. The machine is easy to install and debug, and is attached with a fixed device.
8. Stop automatically without material and send alarm.
9. There are only 2 stations in the production line to collect the finished masks, which can save 3-4 people compared with the single operating equipment, greatly saving the labor cost and management cost.
10. Improve production capacity: modular installation, convenient transportation and disassembly, fast maintenance and replacement for customers in the later period.

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine
Technical Parameter

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine

 Applicable mask type  N95, KN95 and medical protective folding masks  Servo motor:   Schneider
 Applicable materials Spunbond cloth, meltblown cloth, hot air cloth  Voltage   AC220v, 50Hz
 Sensor  SICK  Processing method Ultrasonic welding, cutting
 Pneumatic components  SMC / FESTO  Welding pattern Customized according to samples
 Belt MITSUBOSHI/BANDO  Ear strap fixing method  Welding
 Cable   Igus easy to cut  Operation screen 10 inch touch one machine
 Frame  Welding + Profile  Finished product specifications Folded size: 160mm * 105mm
 Energy chain  igus  Power  10kw
 Bearing  NSK  Screw  HIWIN
 Floor area  L4000*W1500*H2200mm  Safety protection  SICK

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making MachineHigh Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine
Application & Sample

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine

KN95 respirator refers to the respirator that meets KN95 standard and complies with the standard of respirator GB2626-2006.

"KN95" is the standard of respiratory protective equipment published by the state administration of quality supervision, inspection and quarantine and the standardization administration of China, not a specific product name.The most important feature of this type of mask is that it can prevent droplets infection caused by the spatter of the patient's body fluids or blood.



Packaging & Shipping

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine

We will arrange the safest packaging method and the most favorable transportation method according to the weight and volume of the goods, so that the goods can be delivered to the customer safely and completely.

High Speed Fully Automatic FFP2/FFP3 N95 Face Mask Machine For Folding Mask Making Machine

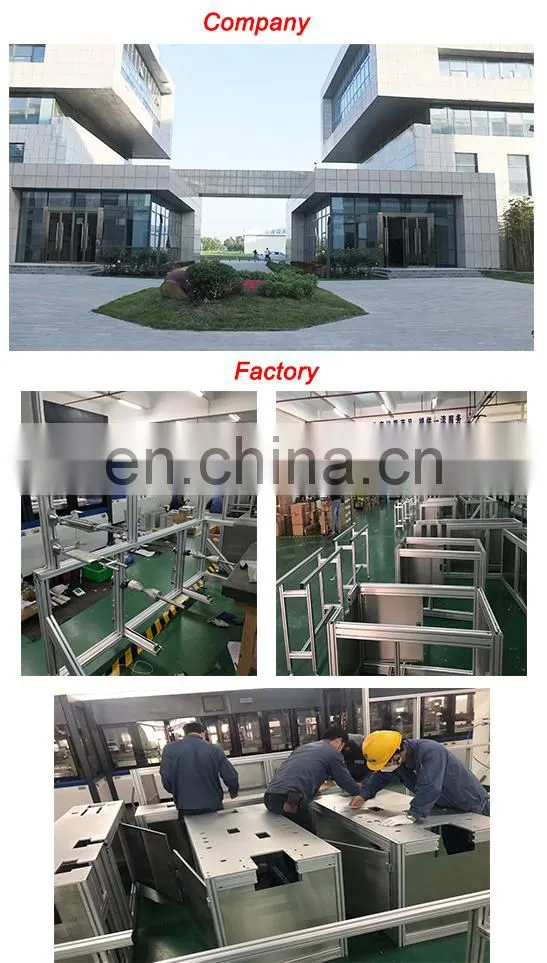

Company Information
