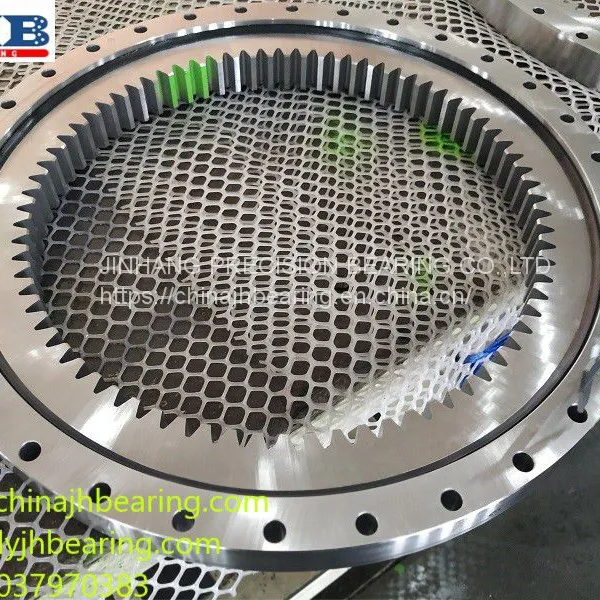

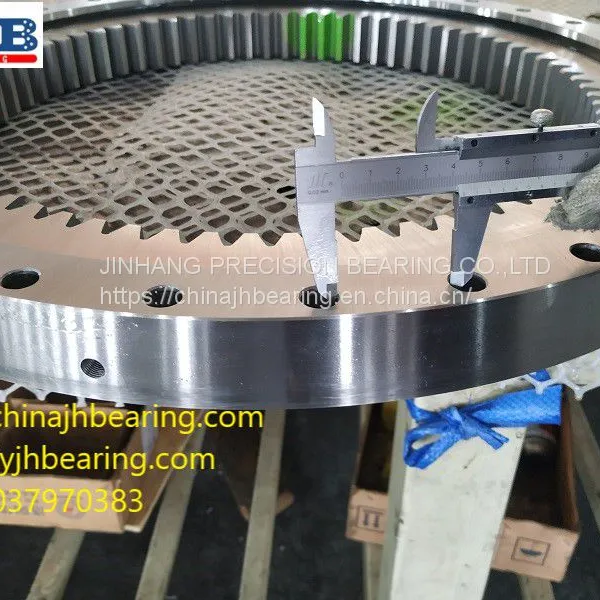

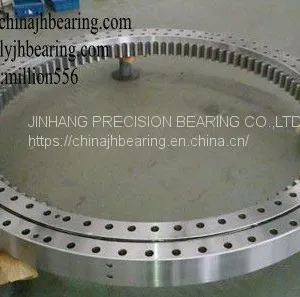

VLI 200744 N slewing bearing for conveyor booms machine 848x648x56mm
VLI 200744 N slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected. The outer diameter:848mm,Inner diameter:648mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description |
VLI 200744 N slewing ball bearing |
Dimension(ODXIDXH) |
848x648x56mm |
Outer diameter(OD) |
848 mm |
Inner diameter(ID) |
648 mm |
Width/Height/(H) |
56 mm |
Gear teeth d0 |
660MM |
Gear teeth m |
6 |
Gear teeth Z |
110 |
weight |
52kgs |
Material |
42CrMo,42CrMo ,50Mn |
Rolling |
LYC ball |
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time |
20-30 days |
Service |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
