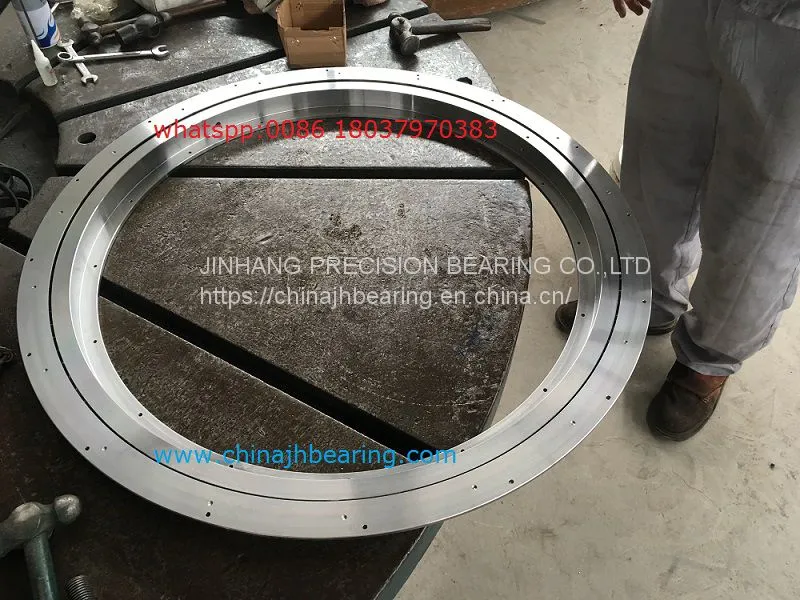

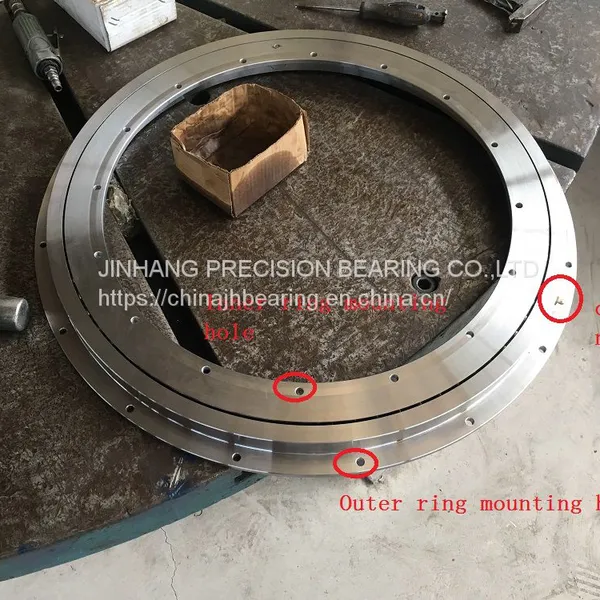

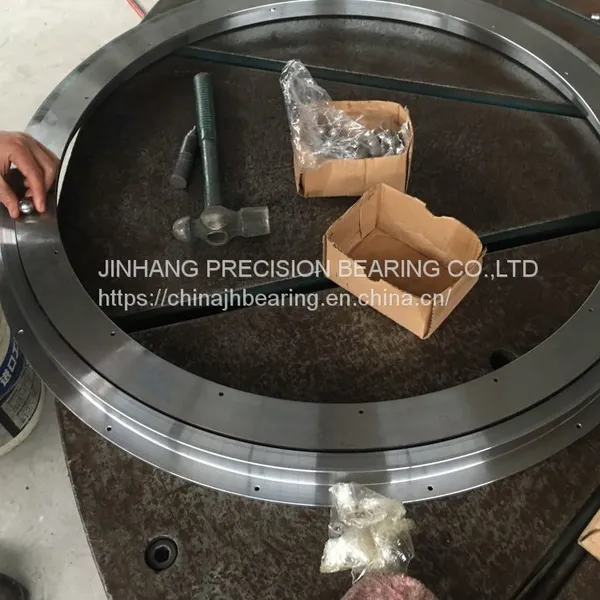

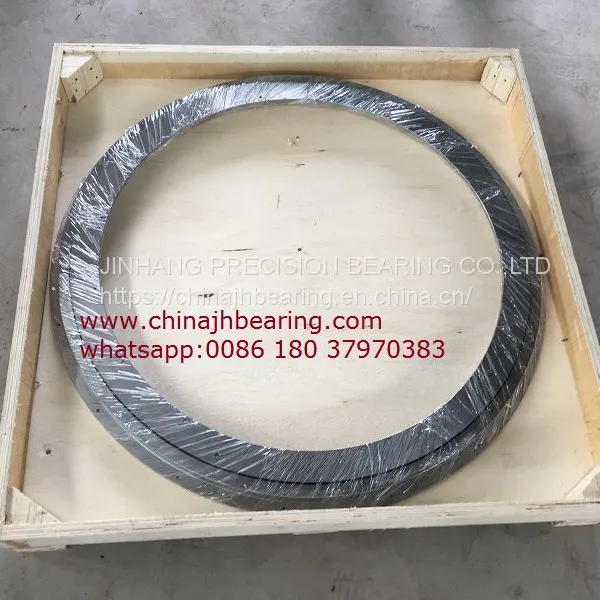

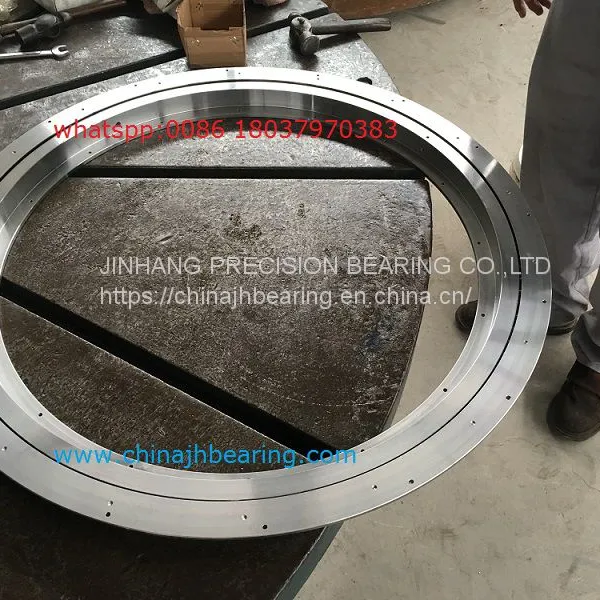

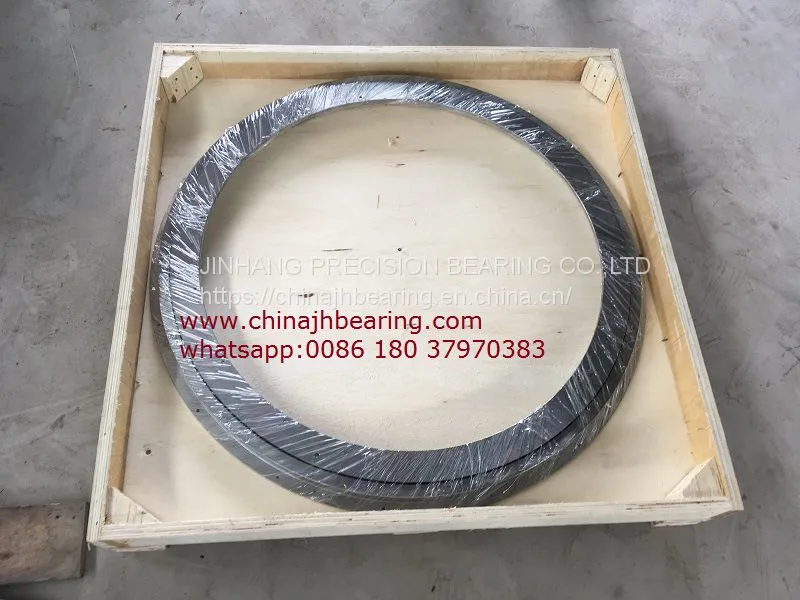

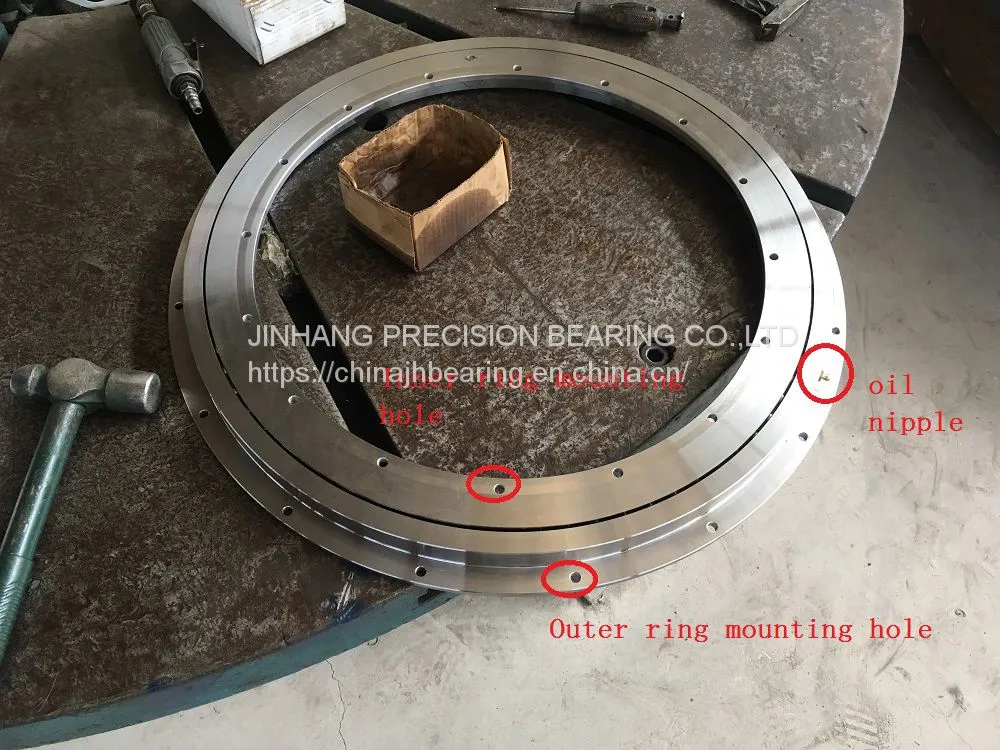

VLI200944N Four point contact ball slewing bearing with gear from China factory 1048x840x56mm offer sample
VLI200944N Belongs to four Four point contact bearing, light series , internal gear teeth,
selectable internal clearance, sealed, lubrication nipple on circumference of ring without teeth.The boundary size 1048x840x56mm will used for track equipment.
For the VLI200944N Four point contact ball slewing bearing details as follows:
Slewing bearing tpe |
Boundary size |
Outer dia mm |
Inner dia mm |
Height mm |
Teeth module |
Number of teeth |
Pressure angle |
VLI200944N |
1048x840x56mm |
1048 |
840 |
56 |
M=8 |
107 |
20 degree |
Four point contact ball slewing bearings VLI200944N as follows:
■ are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples
– gear teeth on the outer ring, inner ring or without gear teeth
– bearing rings with through holes or threaded holes for fixing screws
■ are suitable in the light series 20 for low to moderate loads and circumferential speeds
up to 2 m/s
■ are suitable in the standard series 20 for moderate loads and circumferential speeds
up to 2 m/s (n ·
■ are suitable in the standard series 25 for moderate to heavy loads and circumferential speeds
up to 4 m/s (n
■ can support axial, radial and tilting moment loads cannot, however, be subjected to loads as high as crossed roller bearings
■ are suitable for supported and suspended loads
■ are used where lower requirements are placed on the accuracy of the bearing arrangement
■ have an internal clearance matched to the series
■ have contact seals on both sides that protect the raceway system against dust, contamination and moisture
