Circular Tumbler Screen for Sieving Sand Sifter Machine
Product Description
HXSY series tumbler screen machine is a kind of inertial equipment with mature technology and classical application.
Its new design Philosophy and unique structure making it the closest manual screen machine. The Tumbler sieve machine have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen. The Tumbler sieve machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving. It is widely used in mine, building material, metallurgy, foundry, abrasive material, chemical, light industry, medical, food and other industry.
Its screen and frame are made by different materials and designed by different craftwork. Its whole sealing structure prevents materiel dust moving out, so no worry about air pollution. On the other hand,
it is very easy to add drying, cooling, deducting, cleaning and other supporting facilities as part of the Tumbler screen.
Features
1.Up to 5 times output per unit area.
2. Sieving efficiency is as high as 90% -95%.
3.The acceleration is 4.5 times lower than vibrating sieve.
4.Sieving parts’ increases the life expectancy and reduces maintenance.
5.Up to 5 times output per unit area.
Applicable Industries
1.Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2.Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
3.Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
4. Medicinal industry: all kinds of medicine.
5.Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
Parameter-- tumbler screen
Model |
Availability of screening area (m*m) |
Screen slope (angel) |
Grain size(mm) |
Double amplitude(mm) |
Power(kw) |
Process capacity(t/h) |
HXSY-600 |
0.292 |
0-10 |
≤100 |
5-8 |
0.25 |
6-10 |
HXSY -1000 |
0.785 |
5-8 |
1.5 |
8-15 |
||
HXSY -1200 |
1.13 |
5-8 |
2.2 |
15-30 |
||
HXSY -1600 |
1.83 |
5-8 |
2.2 |
25-50 |
||
HXSY -2000 |
2.63 |
5-8 |
4.0 |
30-60 |
||
HXSY -2600 |
5.31 |
5-8 |
5.5 |
45-60 |

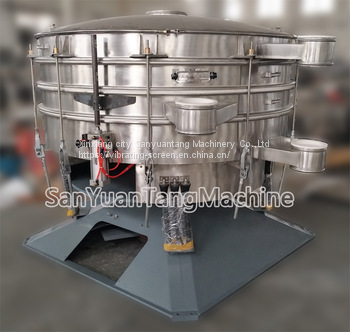

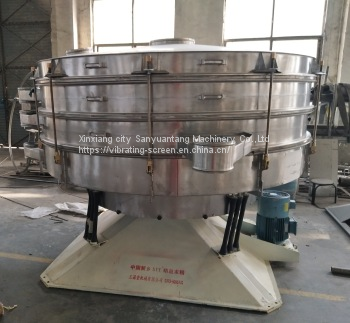

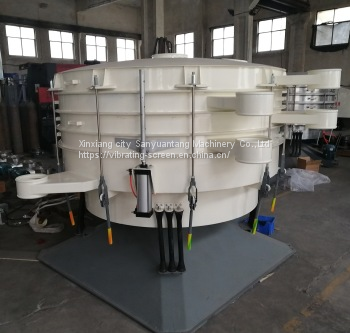

Product shows
Other Products
FAQ
Q: What are you mainly specilized in?
A: Our company is a professional manufacture of vibrating screen sifter equipments(like rotary vibrating screen,ultrasonic sieving machine,linear vibrating screen,test sieve machine,trumbler screem,drum screen,direct discharge screen,airflow sieving machine,450 filter machine and so on);conveying equipment (like screw conveyor,vertical bucket condeyor spiral elevator and so on);honey machine(honey processing machine,honey filling machine)
Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.
Q:What is the MOQ of our products?
A:Usually 1 set.
Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.
Q:What's your delivery time?
Ususlly 7-10 working days,if the order is large,the time should be longer.
Q:What's the advantage compared to other suppliers?
A:We are a factory,We have business directly with our customers,there isn't any link between customers,so we can offer competitive price for you.
Buying Guides
Tell me the following questions,Then I can send you accurate quotation soon.
The proper selection of the vibrating screen depends on the material, mesh size, output required, method of input, abrasiveness of the material etc:
1. Material : _____
2. Moisture:_____%
3. Capacity: :________kg/ hour
4. Screen layer:_______
5. Screen mesh size:______ mesh . ______ mesh. ______ mesh
6. Voltage:______V, Frequency:______HZ, 3 phase
7. SS304/316L stainless steel or Q235A carbon steel?
