Sand Tumbler Screen for Filtering Carbon Powder Sieve Machine
Product Description
HXSY series tumbler screen machine is a kind of inertial equipment with mature technology and classical application.
Its new design Philosophy and unique structure making it the closest manual screen machine. The Tumbler sieve machine have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen. The Tumbler sieve machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving. It is widely used in mine, building material, metallurgy, foundry, abrasive material, chemical, light industry, medical, food and other industry.
Its screen and frame are made by different materials and designed by different craftwork. Its whole sealing structure prevents materiel dust moving out, so no worry about air pollution. On the other hand,
it is very easy to add drying, cooling, deducting, cleaning and other supporting facilities as part of the Tumbler screen.
Features
1.Up to 5 times output per unit area.
2. Sieving efficiency is as high as 90% -95%.
3.The acceleration is 4.5 times lower than vibrating sieve.
4.Sieving parts’ increases the life expectancy and reduces maintenance.
5.Up to 5 times output per unit area.
Applicable Industries
1.Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2.Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
3.Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
4. Medicinal industry: all kinds of medicine.
5.Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
Parameter-- tumbler screen
Model |
Availability of screening area (m*m) |
Screen slope (angel) |
Grain size(mm) |
Double amplitude(mm) |
Power(kw) |
Process capacity(t/h) |
HXSY-600 |
0.292 |
0-10 |
≤100 |
5-8 |
0.25 |
6-10 |
HXSY -1000 |
0.785 |
5-8 |
1.5 |
8-15 |
||
HXSY -1200 |
1.13 |
5-8 |
2.2 |
15-30 |
||
HXSY -1600 |
1.83 |
5-8 |
2.2 |
25-50 |
||
HXSY -2000 |
2.63 |
5-8 |
4.0 |
30-60 |
||
HXSY -2600 |
5.31 |
5-8 |
5.5 |
45-60 |

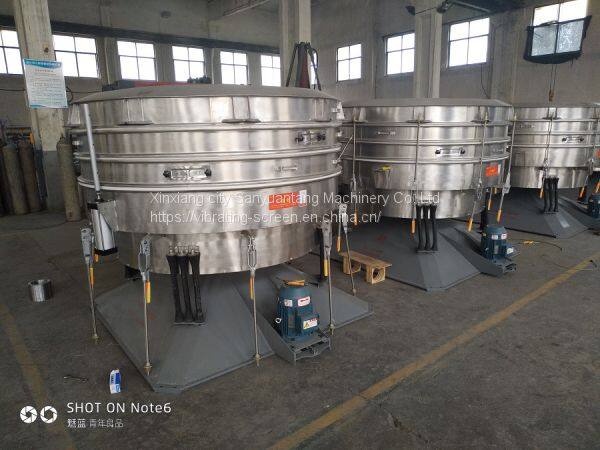

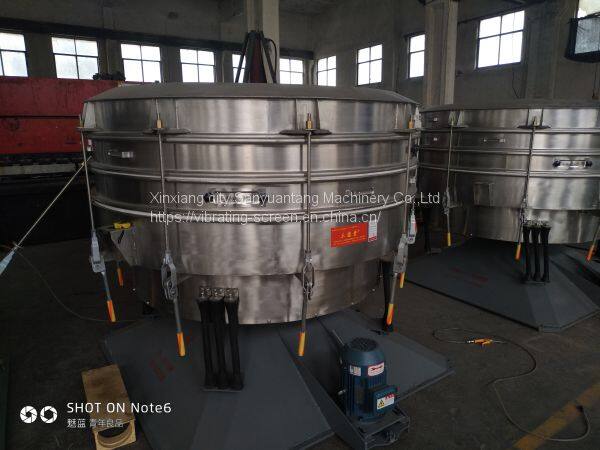

Product shows
