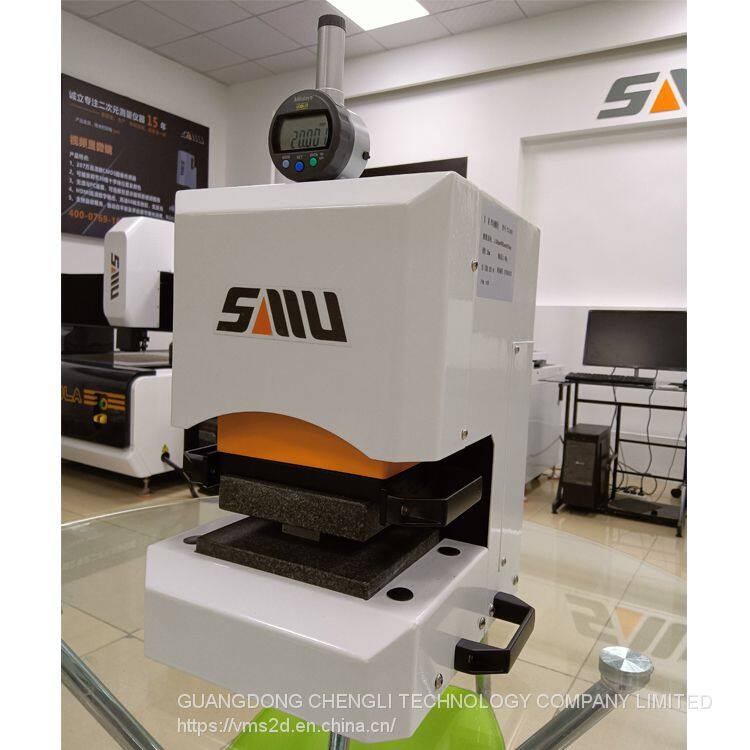

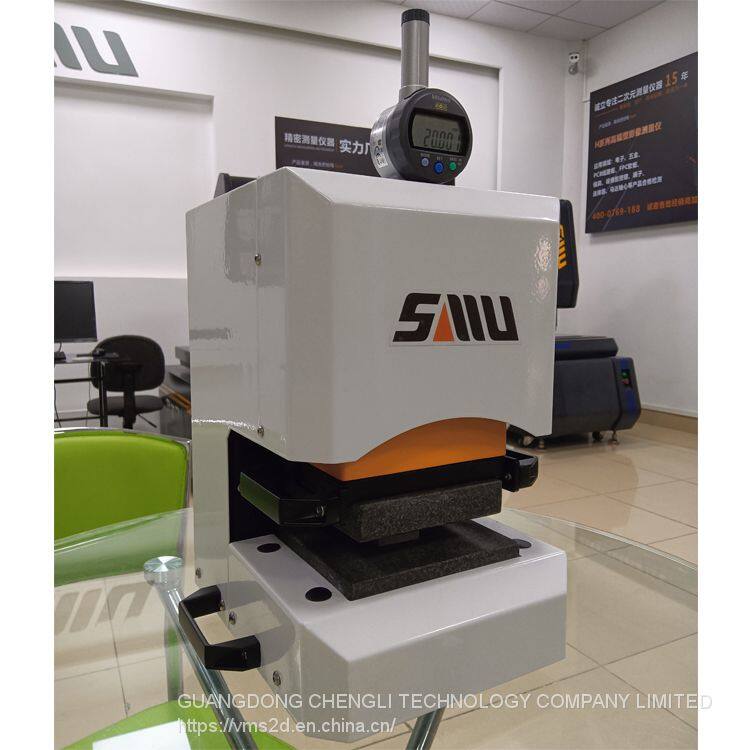

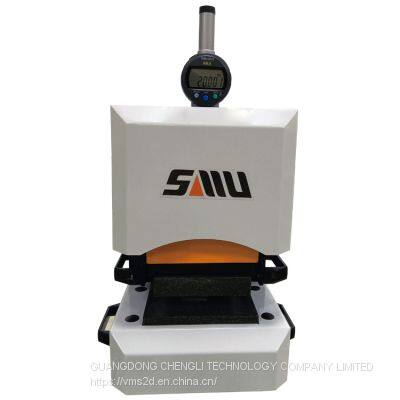

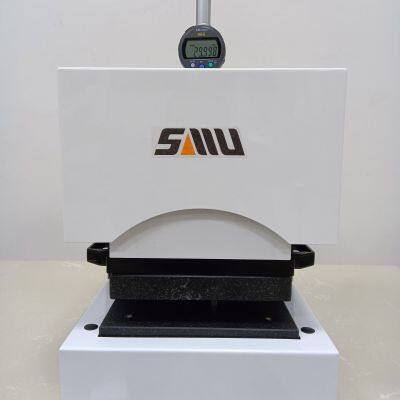

Manual PPG Thickness Measurement Equipment / Lithium Battery Thickness Measuring Machine

FOB Price

US$ 29800 - 32800 / Set

1 Set(Min. Order)

Port meisha
Payment TermsT/T PayPal
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SMU		Place of Origin	China
Model Number	PPG-2153M

Product Description

PPG thickness measurement equipment

Manual PPG thickness measurement equipment

PPG-2153M

（The same pressure is measured for thickness）

1. Introduction

This equipment is suitable for the thickness measurement of lithium batteries, but also can measure other non-battery type of thin products, using weight counterweight, to ensure that the test pressure 400-800g adjustable.

2. Operating steps

2.1 Put the battery into the test platform of the thickness measuring machine;

2.2 Lift the test pressure plate, so that the test pressure plate naturally presses down for testing;

2.3 After the test is completed, lift the test press plate;

2.4 Remove the battery until the whole test step is completed.

3. The main accessories of the equipment

3.1. Sensor: Mitutoyo micrometer

3.2. Coating: Spray baking paint.

3.3. Material of parts: steel, grade 00 jinan blue marble.

3.4. Cover material: metal.

4.Technical parameters

S/N	Item	Configration
1	Tested effective area	L200mm×W150mm
2	Thickness range	0~30mm
3	Height of test	≥50mm
4	Resolution	0.001mm
5	Single point measurement error	0.008mm
6	Combined measurement error	≤0.01mm
7	Test pressure range	500~1000g
8	Pressure transmission mode	counterweight
9	Sensor	Mitutoyo micrometer
10	Using the environment	Temperature：23℃±2℃ Humidity：30～80%
10	Using the environment	vibration：＜0.002mm/s，＜15Hz
11	Power	SR44(938882),1.55V
