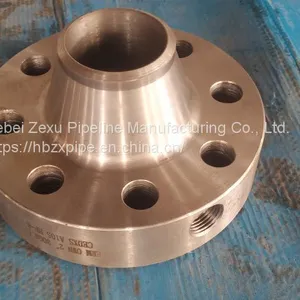

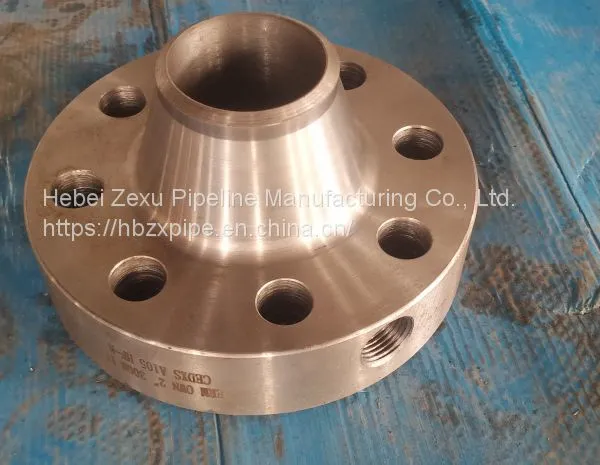

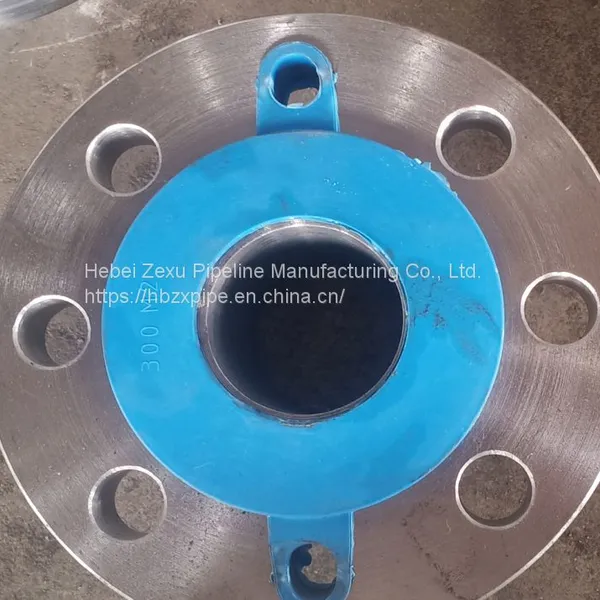

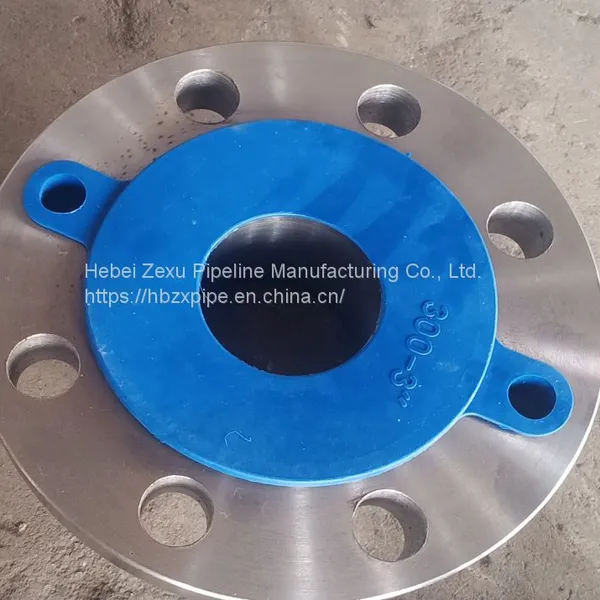

Help CenterForged Flange, A105 Hole Plate Flange
Related Products
-
Dual-phase Steel Flat Welding FlangeNegotiableMOQ: 1 Piece -
Pressure Vessel Flange OEM Customized Precision Casting High Pressure FlangeNegotiableMOQ: 1 Piece
-
Long High Neck Flange High Quality OEM Precision Cast Steel Female Weld Long High Neck FlangeNegotiableMOQ: 1 Piece
-
Butt Welded Flange With Neck Flange Threaded Flange Welding Neck FlangeNegotiableMOQ: 1 Piece
-
Flat Welding Flange Custom Plate Type Flat Welding Flange Made in ChinaNegotiableMOQ: 1 Piece
Steel flange type |
ASTM A105 American standard GB carbon steel orifice flange |
Standard for flange materials |
SA105/105M |
The flange of |
A105 |
The flange class |
150LB, 300LB, 400LB, 600LB，900LB,1500LB,2500LB,PN6,PN10,PN16,PN25,PN40 |
Flange sealing face |
RF, FF,RTJ,TG,MFF,LF,LM,TF,GF, |
The standard of the flange |
ASME/ANSI B 16.5
|
The flange thickness |
SCH10S-50MM |
Flange seal |
According to customer requirements |
Flange heat treatment |
Is the fire |
Application field of flange |
It is used in petroleum, chemical industry, nuclear power plant, food manufacturing, construction, shipbuilding, paper making, medicine and other industries |
Chemical composition：
The flange of |
C |
Mn |
P |
S |
Si |
A105 |
≤0.35 |
0.60-1.05 |
≤0.035 |
≤0.040 |
0.10-0.35 |
The flange of |
Cr |
Cu |
Mo |
Ni |
V |
A105 |
≤0.30 |
≤0.40 |
≤0.12 |
≤0.40 |
≤0.08 |
Mechanical properties of：
The flange of |
The tensile strength ,psi Minimum |
The yield strength ,ksi Minimum |
Extending rate Percent % |
Reduction of Area % |
hardness |
A105 |
≥485 |
≥250 |
≥22 |
≥30 |
≤187 |
