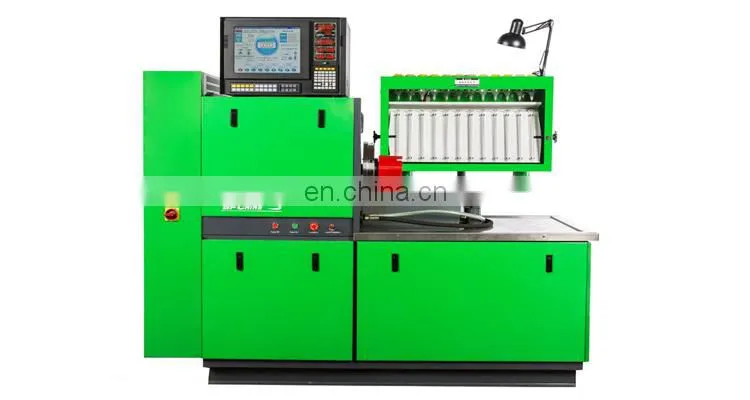

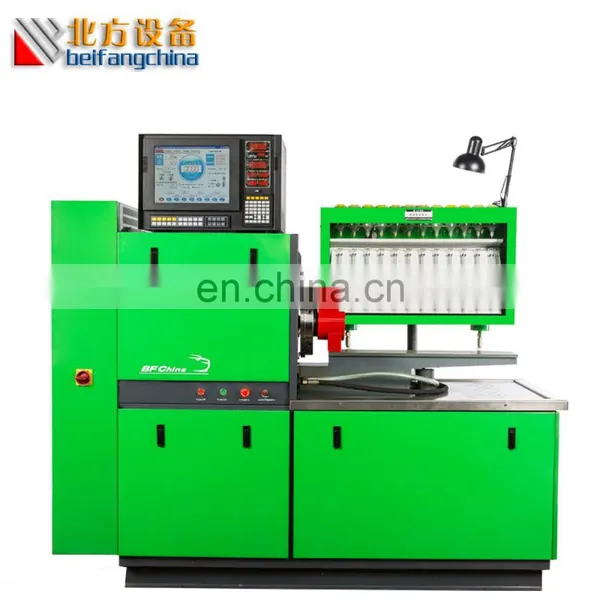

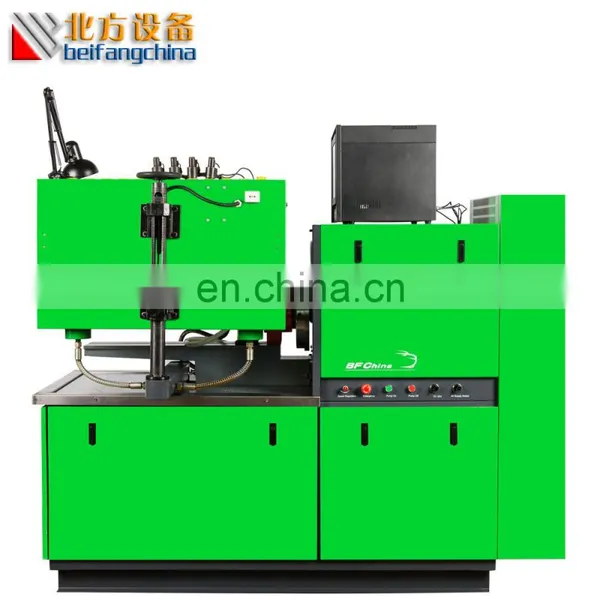

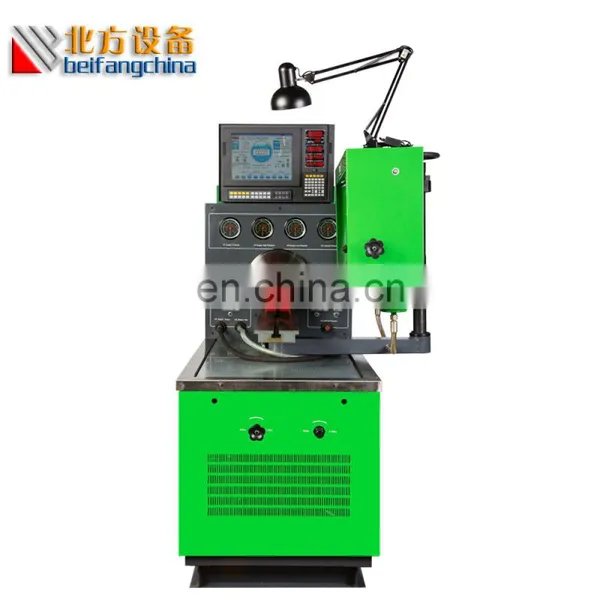

Beifang BFB diesel injection pump test bench for inline pump, distributor pumps
Beifang BFB is our best seller model,which used to test mechanical pumps,like inline pumps,distributor pumps, for example :Ⅰ,Ⅱ,Ⅲ,A,B,P,VE,OW,PL,BQ,Z,P7,PW,PN,PB,P2000,PS7100,EP9,PS8500,P8000,MW etc,kinds of domestic and oerseas pumps. It adopts CRT screen display and LED digital display two control system,can perform various function's adjusting and testing to the injection pump.
Features

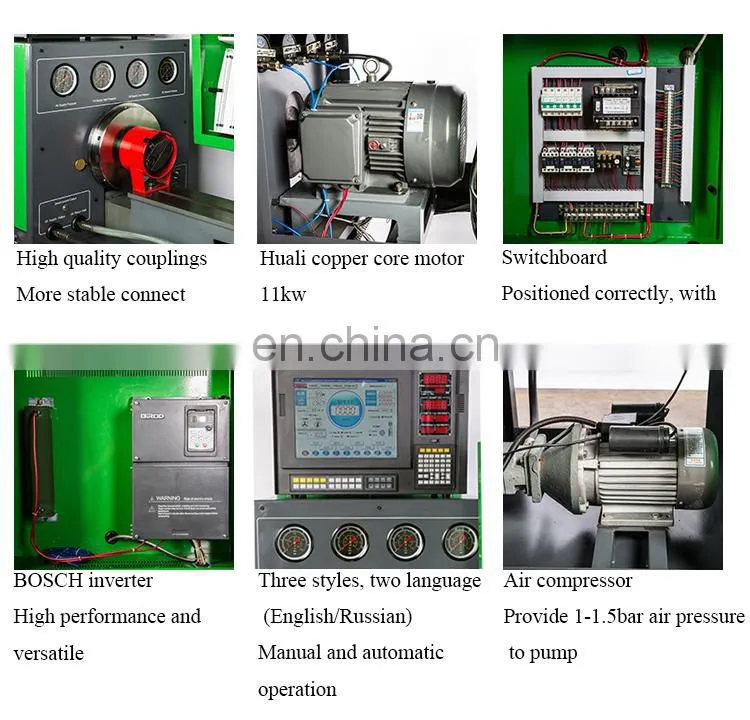

1.Three styles, two language screen interface for thee operator to choose.
2.The main motor frequency control,manual and automatic two modes of operation.
3.12V,24V DC power supply for solenoid calve drive and detection.
4.The test oil temperature automatic control,can reduce the temperatire on the amount of oil precision.
5.Automatic mode can be multi-speed preset speed. Low noise,high pressure supply system.
Technical Parameters
| Technical parameters of Beifang BFB crdi pump injector tester | |
| Name | BFB diesel fuel injection pump test bench |
| Main motor power | 15kw |
| Host machine source | 380V/50-60HZ 3Phase(220V/50-60HZ 1Phase,220V/50-60HZ 3Phase) |
| Test bench rotated speed | 0-4000 rpm/min |
| Oil supply | 10L/min , 20L/min |
| Oil supply high pressure | 0-3.5Mpa |
| Oil supply low pressure | 0-0.35Mpa |
| Air supply pressure range | 0-0.18Mpa |
| DC power | 12V or 24V(Allow short circuit) |
| Shaft centre height | 125 MM |
| Test bench height from the ground | 830 MM |
| Oil tank capacity | 50 L |
| Fuel oil temperature | 40±2℃ |
| Overall size(mm) | 2150*750*1850 |
| Weight(kg) | 950 |
Functions
1.Test the speed of each cylinder under the oil supply;
2.Statically check the fuel tank time;
3.Check mechanical governor performance;
4.Distribute pump solenoid valve test;
5.The injection pump sealing test;
6.Measurement distribution pump body pressure, return pressure;
7.Check the pressure compensator performance;
8.Check the pneumatic governor performance;
9.Check the air film governor negative pressure performance.
Advantage
Taian North Test Equipment Factory founded in 2003. It is the top manufacturer of diesel fuel injection system testing equipment and diagnostic tools in China. It is also one of the first factories in mainland China to develop and manufacture diesel fuel injection system testing equipment and diagnostic tools.
The factory has always attached importance to customer needs and product quality. The factory follows the development of the industry and develops and manufactures a range of products, such as injection pump test bench, common rail injector test bench, diesel injector tester, ultrasonic cleaner etc. We have a large number of customers at home and abroad and won the praise of them.
The factory head quarter located in Taian city which is the most well known manufacturing base of diesel fuel injection system testing equipment and diagnostic tools in China. The sales center located in Jinan city have a group of very experienced employees provide professional sales service.
The customer training center in factory organize hundreds of times training a year. Thousands of customers attend training to study the technology of diesel fuel injection system repair and maintenance. It has become one of the most authoritative training center and is evaluated as the most professional and valuable training.
Beifang equipment factory welcome domestic and overseas friends visit our factory and communicate the technology of diesel fuel injection system repair and maintenance. Let's make progress together!
>>> Packaging : wooden case with water-proof membrane
>>> Delivery: within 7 days after receiving the deposit
1. Common rail injector technical support ;
2. We have training center for teaching common rail system service;
3. Factory sell directly.
Welcome to visit our Factory.
