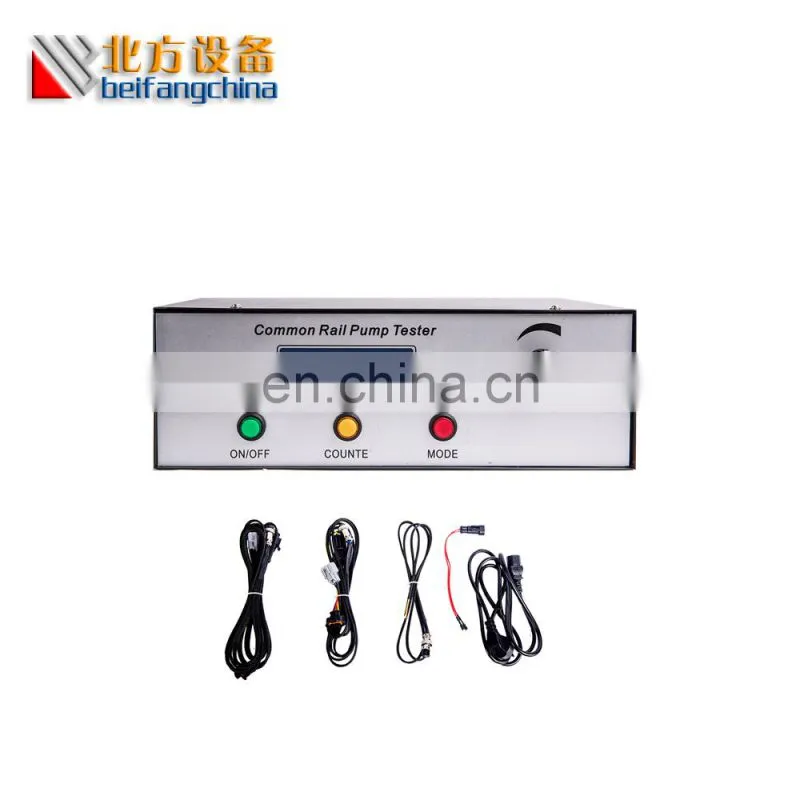

Beifang CRP850 common rail pump tester with HP0 pump testing function
CRP850 high-pressure common rail pump tester function is used to drive common rail pump, while providing common rail pump control signal to drive the high-pressure common rail pump to work, drive signal parameters can be carried out by the user according to their actual situation, and can be saved grouped for easy maintenance personnel to high-pressure common rail injector in working condition to judge different conditions and maintenance.
Features
| Technical parameters of CRP 850 common rail pump tester | |
| Item | High pressure common rail pump tester |
| Test range | common rail pump |
| Model | CPR 850 |
| Pump type | CP1;CP2;CP3;HP0;HP3;HP4,JIER |
| Pressure range | 0-180Mpa |
| Counting time | 0-180 seconds |
| PWM | 0-99.99% |
| Net weight | 4.5 kg |
| Gross weight | 5 kg |
| MOQ | 1 set |
| Box size | Real size as standard |
| Packing details | Caron |
To ensure safe operation, please follow the following rules:
- in the course of operating the tester, the operator should wear safety glasses;
- using a separate dedicated outlet and reliable grounding. The tester is a three-wire power cord plug is connected to a standard threewire outlet, please ensure reliable grounding;
- if the power supply voltage is unstable, please connect the power supply voltage tester uses;
- regularly check the AC power cord is damaged, and the power plug or power outlet for dust accumulation;
- if the tester abnormal conditions occur, or an abnormal sound or smell, or the tester can not be hot to the touch, stop using it immediately and unplug the AC power outlet power cord and all other cables;
- if the tester fails, please contact the service personnel to obtain necessary assistance;
>>> Packaging : wooden case with water-proof membrane
>>> Delivery: within 15 days after receiving the deposit
Taian North Test Equipment Factory founded in 2003. It is the top manufacturer of diesel fuel injection system testing equipment and diagnostic tools in China. It is also one of the first factories in mainland China to develop and manufacture diesel fuel injection system testing equipment and diagnostic tools.
The factory has always attached importance to customer needs and product quality.
Beifang equipment factory welcome domestic and overseas friends visit our factory and communicate the technology of diesel fuel injection system repair and maintenance. Let's make progress together!
common rail injector repair tools Grinding tool kit Leaking test tool crdi repair tools
EUI/EUP tester with Cambox common rail test bench diesel fuel pump test bench
>>> MOQ: 1 set
>>> Warranty: 1 year
