BF- Rambo High Pressure Common Rail Diesel Fuel Injector Diagnostic Machine for All Cars Injectors Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BF207 Auto Diagnostic Tool Common Rail Injectors Repair Tools Mechanical EquipmentNegotiableMOQ: 1 -
BF207 Test Bench for Injectors Tester Common Rail Excellent QualityNegotiableMOQ: 1
-
BF207 Common Rail Injector Tester Diesel Excellent Quality Injector ToolNegotiableMOQ: 1
-
BF207 Diagnostic Tools Common Rail Injectors Tools & Equipment Car Diagnostic MachineNegotiableMOQ: 1
-
BF207 Auto Car Diagnostic Machine Obd Diagnostic for Cars Common Rail Injector Tester DieselNegotiableMOQ: 1
Product Description
New technology BF- Rambo high pressure Common Rail Diesel Fuel Injector Testing Bench injectors testing machine

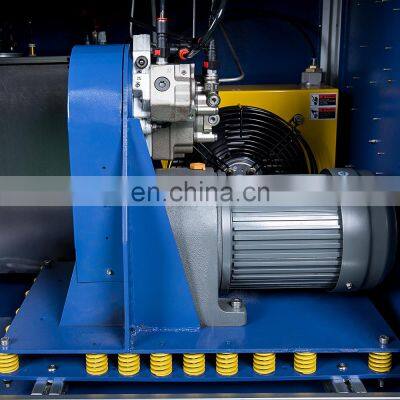

The equipment is made of aluminum alloy ,reinforced fastener connection,light weight,corrosion resistant,independent circuit system design .It is equipped with Korean imported Fuma wheel.easy to move ,fixed convenient ,load capacity 2T.It is equipped with ultra-low noise, Taiwan deceleration motor, and designed a shock absorber.Keep noise to a minimum in a sealed workspace .The pressure is adjusted by using Germany Bosh CP3.3 high pressure oil pump and HPV valve. Ultra-high pressure sensor is installed,Rail pressure can reach 230Mpa pressure.
Specification
Test bench name and model |
BF-RAMBO |
Motor |
2KW Geared motor |
Host power supply |
220V/50HZ |
Speed of test bench |
300R/M |
Number of consecutive injections |
0～1000times |
Rail pressure |
0～2300 bar |
Pulse width |
100～3000μs |
Oil temperature control |
38±2℃ |
Test fuel filtration accuracy |
Less 5μ |
Fuel tank capacity |
35L |
Test bench size |
1100x800x1500（mm） |
Test bench weight |
300kg |
Feature
1. Real-time controlled by industrial computers ,embedded operating system
2. The oil measurement, rail pressure, pulse width, rotate speed, temperature will display on the 17-inch touch screen.
3. Adopts Bosch high pressure common rail fuel injection pump to produce 0～2300bar pressure
4. Users can customize the rail pressure, pulse width, fuel measurement
time and other parameters
5. Intelligent PID algorithm, the rail pressure will be more accurate under the closed -loop control , and with the function of ultra-high pressure protection
6. Pulse power automatic conversion
7. More than 2800 kinds of injector data can be queried
8. The equipment has the network function ,connect the Internet can do one-click upgrades and remote operation
9. The short-circuit protection function
10. Automatic control of test fuel temperature

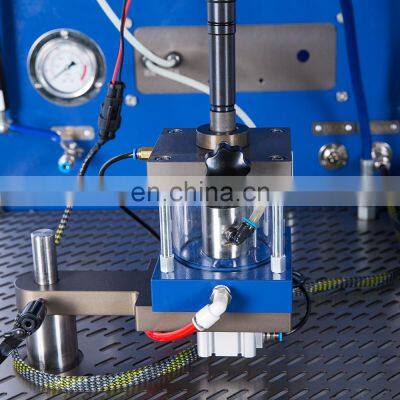

11. Provided with a special fixture for testing injector
12. Multilingual interface switching
12. Multilingual interface switching
13. Safety protection design, safe and simple operation
Function
1. Testing range:BOS.CH、DEN.SO、DEL.PHI、SIE.MENS etc brands injectors.
2. The one common rail injector
3. Measuring the high pressure common rail injector sealing and observe the atomizing effect
4. Measuring the high-speed fuel of high-pressure common rail injectors
5. Measuring the medium-speed fuel of high-pressure common rail injectors
6. Measuring the idle-speed fuel of high-pressure common rail injectors
7. Measuring the pre-injection quantity of high-pressure common rail injectors
8. Measuring the fuel return quantity of high-pressure common rail injectors
9. High-pressure common rail injectors can be washed
10.Users can setting the characteristics of rail pressure ,pulse width and fuel measuring time
Recommend Products
BF209A
Common rail injector test bench
The detection range: BOS.CH, DEN.SO, DEL.PHI, SIM.ENS etc brands Injectors
BF207
Common rail injector test bench
Common rail injectors of Bo.sch, Dens.o, De.lphi, Si.emens, Cu.mmins and other brands

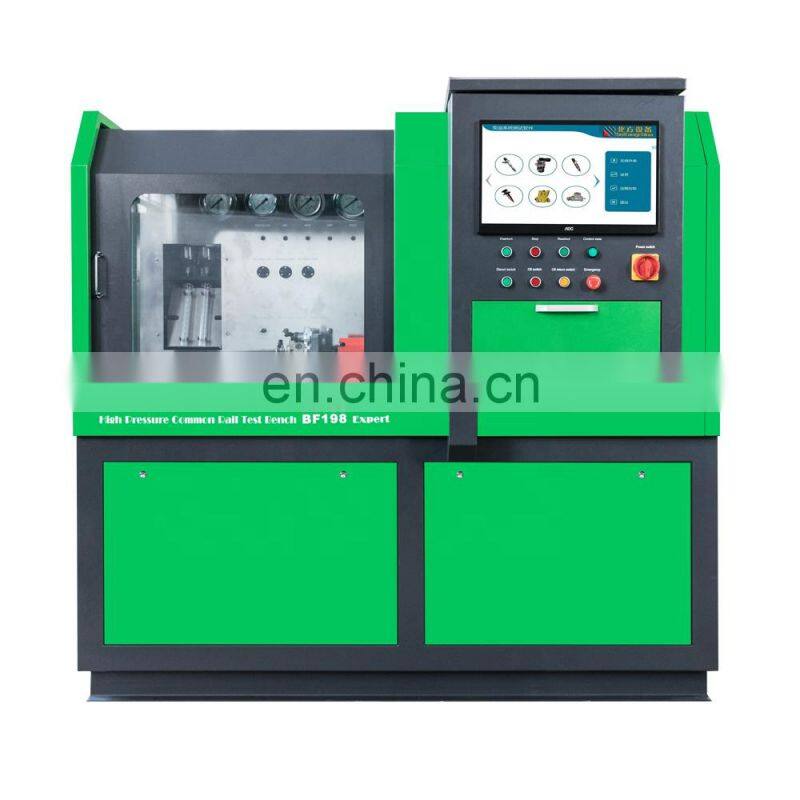

BF198 Expert
Multi-purpose test bench
It could test the common rail injectors & pumps , EUI/EUI, HEUI
Packing & Delivery
Company Profile
Taian North Test Equipment Factory founded in 2003. It is the top manufacturer of diesel fuel injection system testing equipment and diagnostic tools in China. It is also one of the first factories in mainland China to develop and manufacture diesel fuel injection system testing equipment and diagnostic tools.
The factory has always attached importance to customer needs and product quality. The factory follows the development of theindustry and develops and manufactures a range of products, such as injection pump test bench, common rail injector test bench, diesel injector tester, ultrasonic cleaner etc. We have a large number of customers at home and abroad and won the praise of them.The factory head quarter located in Taian city which is the most well known manufacturing base of diesel fuel injection system testing equipment and diagnostic tools in China.
The factory has always attached importance to customer needs and product quality. The factory follows the development of theindustry and develops and manufactures a range of products, such as injection pump test bench, common rail injector test bench, diesel injector tester, ultrasonic cleaner etc. We have a large number of customers at home and abroad and won the praise of them.The factory head quarter located in Taian city which is the most well known manufacturing base of diesel fuel injection system testing equipment and diagnostic tools in China.
FAQ
1.Are you a manufacturer or trade company?
We are direct manufacturer with more than 10 years experience
We are direct manufacturer with more than 10 years experience
2.What certification do you have ?
We have CE, ISO SGS Certification etc
3.How about the delivery time?
10 days after getting deposit
4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you
5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.
We have CE, ISO SGS Certification etc
3.How about the delivery time?
10 days after getting deposit
4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you
5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.
