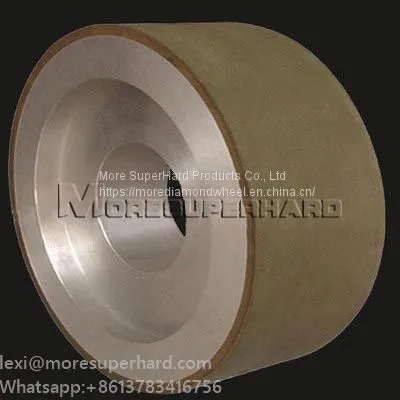

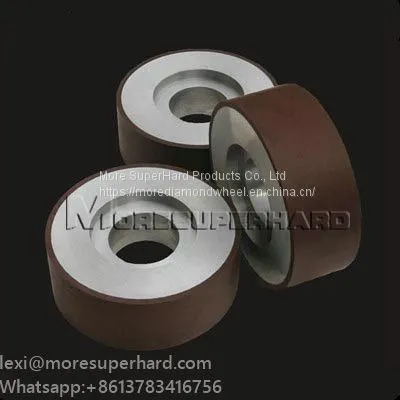

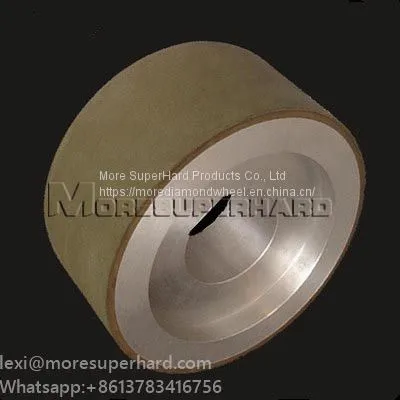

Help CenterCenterless Diamond Grinding Wheel
US$ 20 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MoreSuperHard
Place of Origin:
China
Model Number:
1A1,6A1,9A1
Payment & Shipping
Payment Methods:
Port of Shipment:
zhengzhou
Delivery Detail:
10 days
Related Products
Brand Name
MoreSuperHard
Place of Origin
China
Model Number
1A1,6A1,9A1
Size
customized
Type
Other, grinding wheel
Application Of Centerless Diamond Grinding Wheels
Centerless Wheels For The Centerless Grinding Machines:
Rough, semi-finish and finish grinding of cemented carbide bars , PDC Cutter (Polycrystalline Diamond Compacts), tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN composites.
Features Of Centerless Diamond Grinding WheelsHigh roundness , good surface finish, superior grinding action, bulk removing of materials, competitive price, long life .
Specification Of Centerless Grinding Wheels| Model | D (mm) | H (mm) | T (mm) | X (mm) |
|
|
200 | 75 | 50 | 5, 10 |
| 305 | 120 | 150 | 5, 10 | |
| 350 | 127 | 125 | 5, 10 | |
| 400 | 203 | 150 | 5, 10 | |
| 455 | 228.6 | 205 | 5, 10 | |
| 500 | 127 | 125, 150, 200 | 5, 10 | |
| 600 | 305 | 200, 400, 600 | 10 | |
| Other specification can be made according to customers requirements | ||||
Centreless (centerless) grinding can perform excellent roundness of the work piece.The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel.The mainly centerless grinding machines: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV and so on.
