--Diamond Cut-Off Wheels are for cutting tungsten carbide, alloys, quartz, ceramics, glass, carbon fibre composites, fiber glass etc.
--CBN Cut-Off Wheels are for cutting HSS, Hardened Steel and other ferrous material.
Description:
Resin cutoff wheels can self-sharpen and cut sharply.The work quality can be improved due to the elastic resin bond. The spec and dimension of the high precision cutting wheels with steel plate
The models of cutting wheels with steel plate divide into 1A1 type and 1A1R type.
Application:
Diamond Cut-Off Wheels are for cutting tungsten carbide, alloys, quartz, ceramics, glass, carbon fibre composites, fiber glass etc.
CBN Cut-Off Wheels are for cutting HSS, Hardened Steel and other ferrous material.
DRAWING&SPECIFICATION
Cutting wheels of 1A1 type：
The thickness of work layer is as same as steel plate. They are mainly used for precise grooving and cutting.

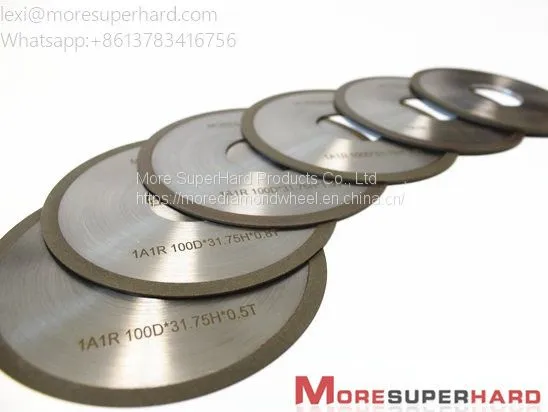

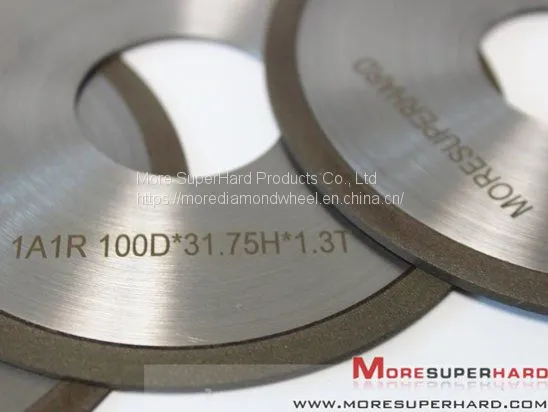

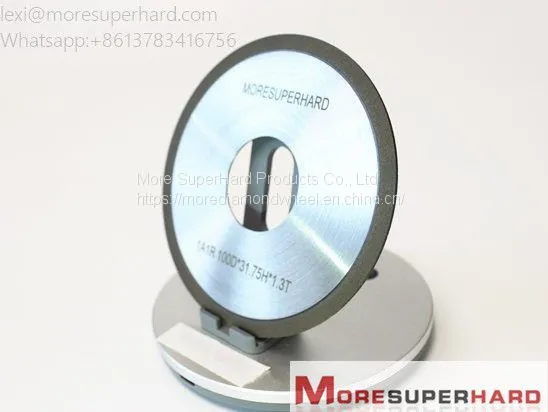

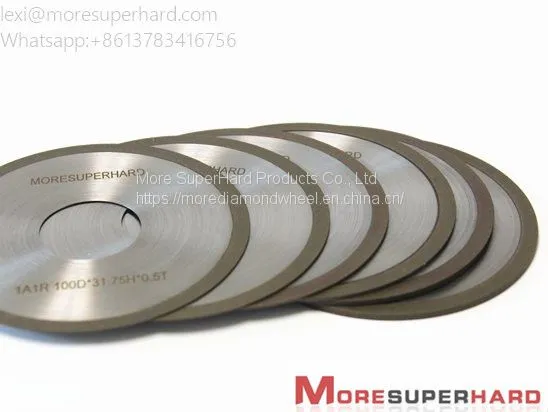

Cutting wheels of 1A1R type
The thickness of work layer is higher than the steel plate. They have advantages for removing chips and cooling.
They are mainly used for deep cutting and grooving of component.
Shape |
Diameter(mm) |
Thickness(mm) |
H(mm) |
1A1 |
20.0≤D≤152.4 |
0.08≤D≤2.0 |
4.0≤D≤114.3 |
1A1R |
30.0≤D≤400.0 |
0.2≤D≤2.0 |
4.0≤D≤127.0 |
