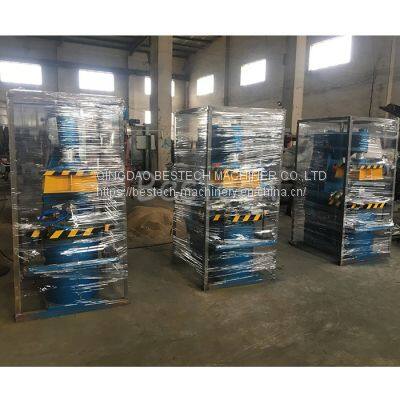

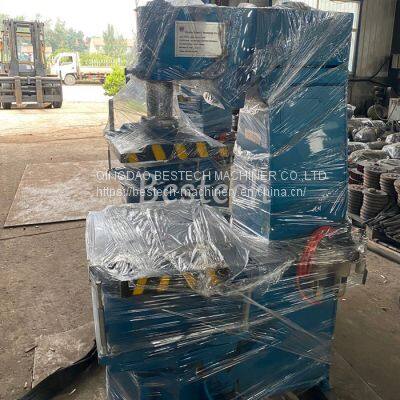

Help CenterFoundry Green Sand Jolt Squeeze Molding Machine
Related Products
-
Jolt And Squeeze Type Molding Machine For Green Sand Foundry CastingUS$ 4999 - 19999MOQ: 1 Set -
Foundry Metal Casting Jolt Squeeze Molding/mould Machine,sand Casting EquipmentUS$ 4999 - 19999MOQ: 1 Set
-
Foundry Clay Sand Casting Jolt Squeeze Molding MachineUS$ 4999 - 19999MOQ: 1 Set
-
Green Sand Casting Hydraulic Sand Molding MachineUS$ 29999 - 59999MOQ: 1 Set
-
Multi Piston Hydraulic Sand Molding MachineUS$ 29999 - 59999MOQ: 1 Set
The Jolt Squeeze Moulding Machine Work principle
The worktable fall and collide with floating shock-iron,and the sand was tighted slightly, and then to compaction,get the top and bottom of sand mould are tight. The slightly shock is high frequency (500-1000 times/min), small amplitude (5-25 mm) vibration instead of low frequency (60-120 times/min), the large amplitude vibration. This kind of moulding machine made of sand mold are good quality, the basic requirement is also lower.
The Jolt Squeeze Moulding Machine Work Technical Parameters
Name |
UNIT |
Z143 |
Z144 |
Z145 |
Z146 |
Z148 |
Z149 |
The Max. dimension of Sand Box |
mm |
500*400*100 |
400*500*180 |
450*500*200 |
500*600*200 |
630*800*320 |
1100*700*320 |
Worktable/ Workbench dimension |
mm |
560*420 |
465*500 |
600*460 |
550*700 |
900*730 |
1200*830 |
Jarring Load / Air pressure |
kgf /Mpa |
0.55 |
0.6 |
300/0.6 |
300/0.6 |
0.6 |
0.6 |
Compressive stress |
kgf |
4000 |
4200 |
6300 |
7000 |
12000 |
18000 |
Compress process |
mm |
100 |
120 |
160 |
200 |
180 |
200 |
Drawing mould process |
mm |
160 |
150 |
200 |
200 |
320 |
320 |
Distance compacting plate with worktable |
mm |
200-370 |
300-400 |
300-450 |
350-450 |
680 |
600-700 |
Productivity |
mould/h |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
40-60 |
