High Precision&Speed Cnc Lathe Machine CJK0640 Small Lathe Machine Price
The overall structure of CNC lathe adopt the high quality cast iron and stainless steel closed shield ,make spindle and headstock are tightly closed,can prevent dust and water vapor come into it,so prolong the machine working life.High frequency quenching guideway,high hardess,wear resistance is stronger.
CNC lathe suitable for machining short shaft products,special suitable for processing plumbing,values,sanitary ware,auto industry parts.This machine is suitable for processing all kinds of metal materials,various types of semi-finished acessories,for example,bar,pipe material,casting,forging,casting parts and so on.
Main parameters
| Max.swing dia.over bed | 350mm | X-axis rapid traverse rate | 8m/min |
| cessing length | 350mm | Z-axis rapid traverse rate | 8m/min |
| Max.swing dia.over slide | 200mm | X-axis pulse equivalent | 0.005 |
| Spindle hole dia. | 49mm | Z-axis pulse equivalent | 0.001 |
| Drawn pipe outside dia. | 40mm | X-axis repositioning precision | 0.005 |
| Spindle speed range | 2500rpm | Z-axis repositioning precision | 0.01 |
| Main motor power | 4kw | Valtage | 380v/3phase/50hz |
| Max.X-axis travel | 300mm | The shape diamension | 1450*960*1600mm |
| Max.Z-axis travel | 350mm | Net weight | 1000kg |

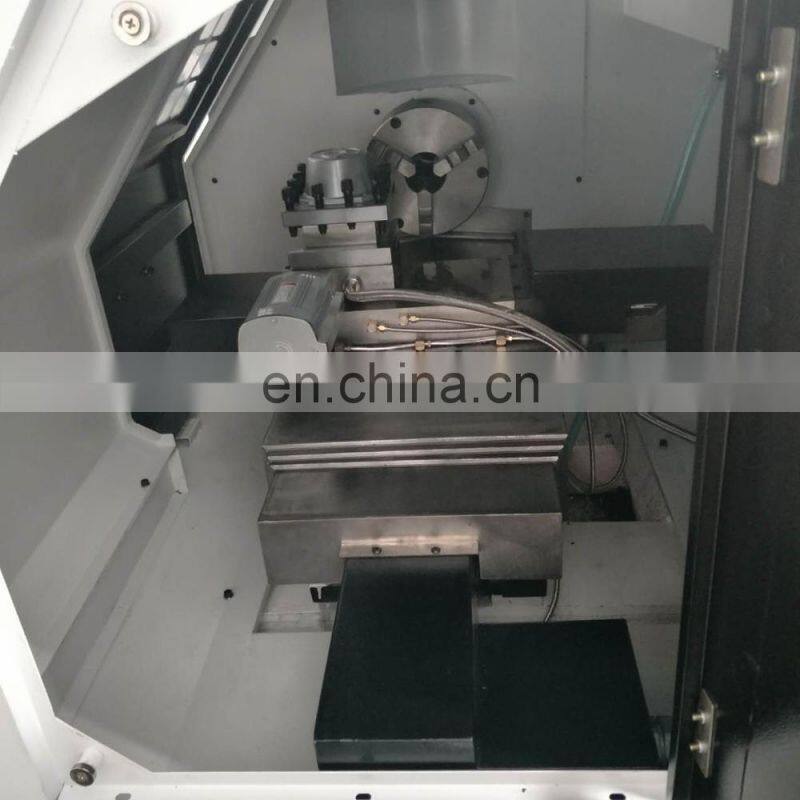

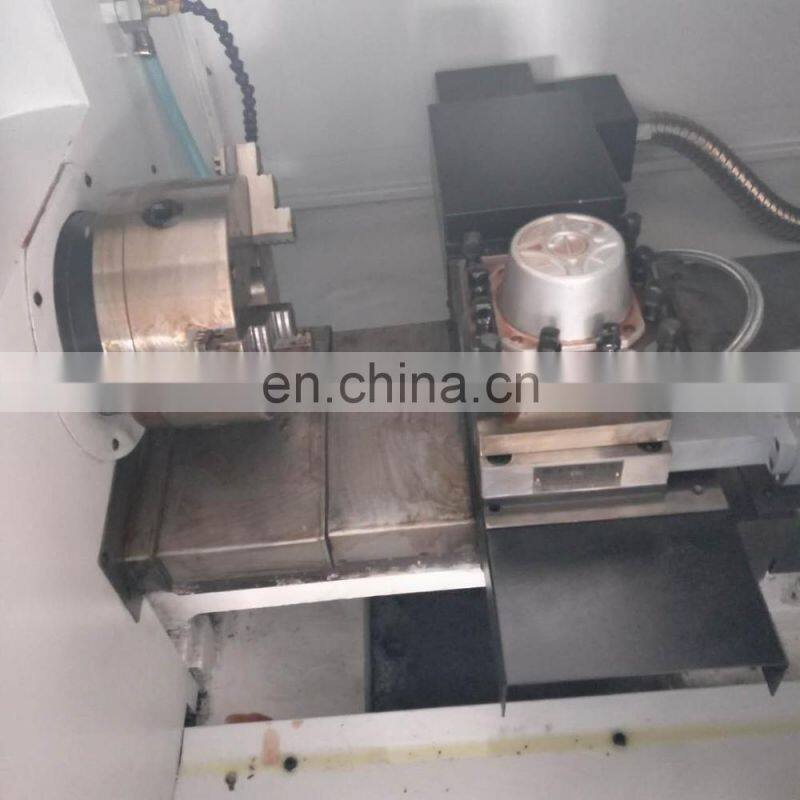

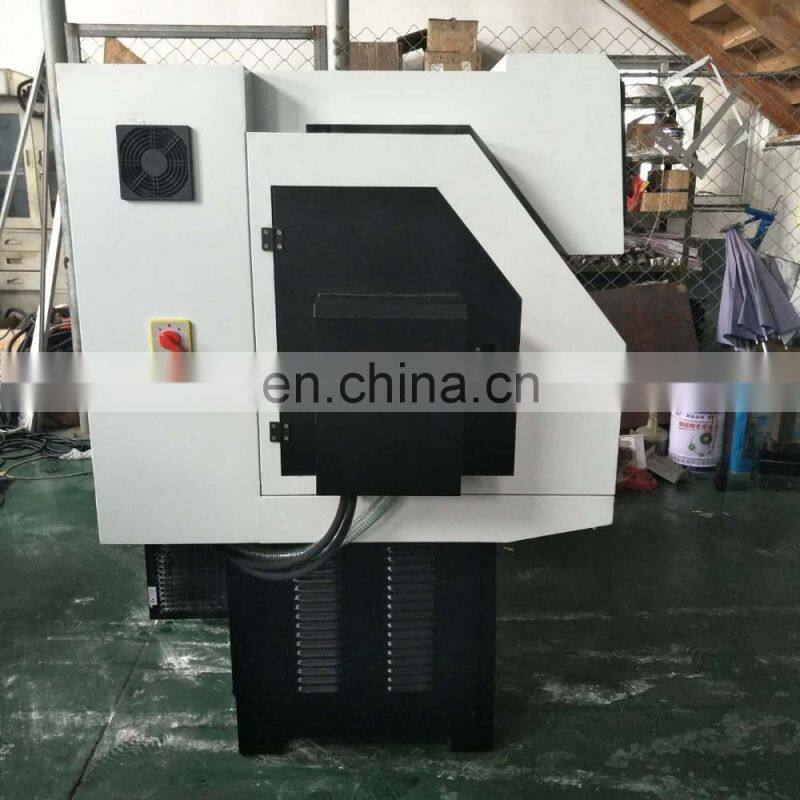

Details pictures
Generally the machine is packed in plywood cases. They are shipped by sea or according to customers' requirements.
Presale service After-sale service
in-time reply for any question online Engineer available to service machinenary overseas
free technical support In-time feedback for product problem
factory-visit support 1-year warranty
Shanghai Fortune Electric Co.,LTD. is a professional metallurgical machinery equipment manufacturer and exporter, which is concerned with design, research and development, manufacturing, sales and service of metallurgical continuous casting equipment. Because of advanced technology and strong and skillful engineers’team, we can provide professional solutions to the field of all metallurgical machinery equipments.
After more than twenty-year-operation, we have formed complete metallurgical equipment supply chain. All of our products comply with international quality standards and have won extremely great reputation in a variety of different markets throughout the world. Nowadays, we have cooperated with many well-known domesticandforeigncompaniesasagoldsupplier.
Our main products include induction melting furnace, continuous casting machine, rollingmillandothermetallurgyandcastingequipment.
We sincerely welcome the old and new customers to communicate and negotiate with us. And we are willing to work with you hand in hand to develop forward together andcreatebrilliantfuture.
1. How can I get a quotation?
You can send your inquiry to the below rectangular blank directly and we will reply you in 5 hours.
2. Can I get a sample?
Yes. We can offer you a sample but it might not be free. However, we can give discount in your later order.
3. Can I view your factory?
Yes. We accept view of our factory in before order. Tell us your agenda in advance and we
can arrange then.
If you have any questions,please feel free to contact us.
