Product Description

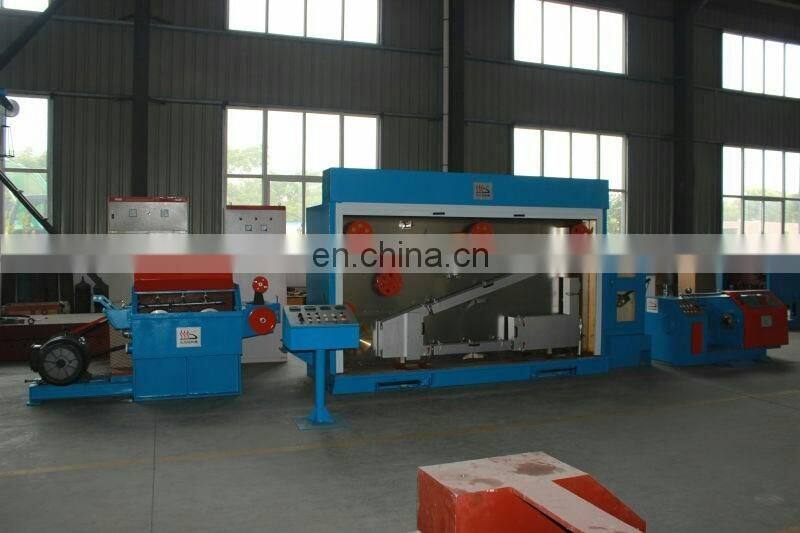

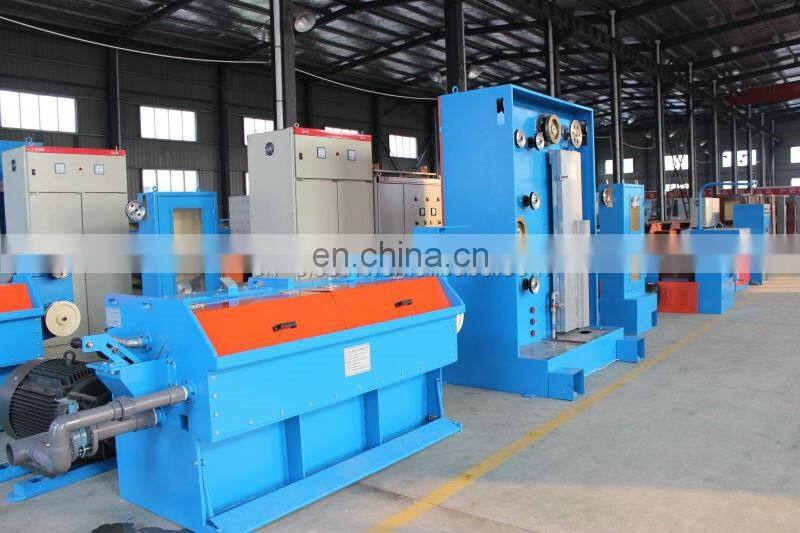

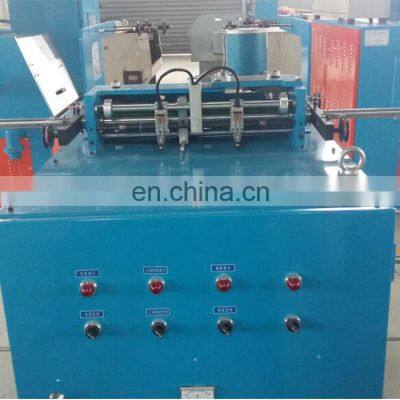

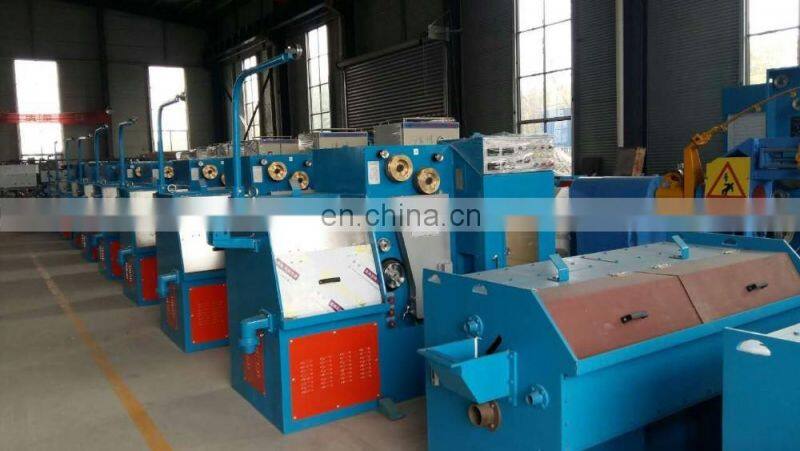

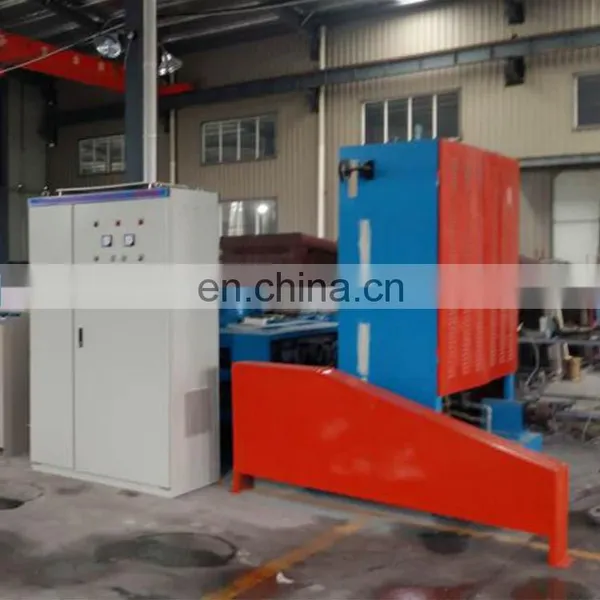

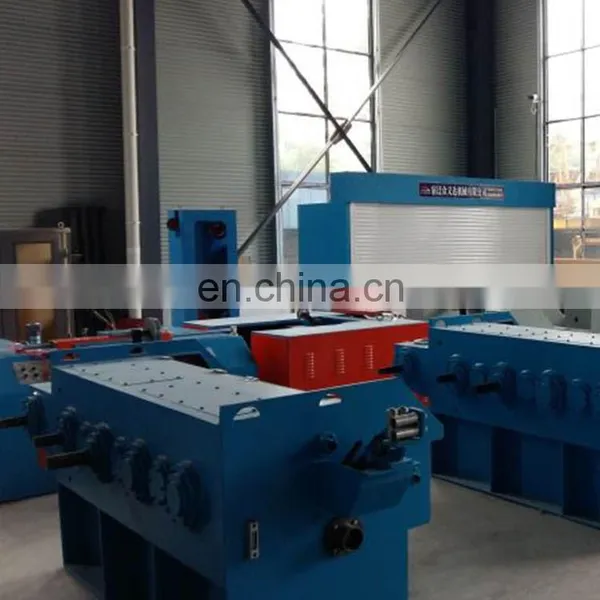

Straight Line Medium Copper rod wire drawing machine
Product Description
Advanced automatic wire drawing machine
(stretching machine, stretcher)
straight line wire drawing machine copper wire making machine for copper and aluminum
The wire drawing machine unit is specially designed for drawing copper wire, brass wire and aluminum wire. The wire output from the drawing machine is compact, smooth, shiny and has very high quality.
The machine unit mainly includes following machine:
1. Pay-off machine
2. Drawing machine
3. Tension device

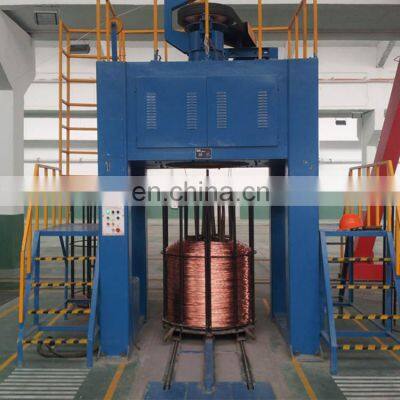

4. Take-up machine
5. Annealing machine (Optional part according to customers' requirement)
According to the size of output wire, our wire drawing machine is divided three classes:
Big wire drawing machine (rough drawing machine),
Medium wire drawing machine,
Small wire drawing machine (final drawing machine).
According to the material of the wire, our wire drawing machine is divided three classes:
Copper wire drawing machine,
Brass wire drawing machine,
Aluminum wire drawing machine.
Straight Line Medium Copper rod wire drawing machine
Technical parameter
1. FXLS-450 big wire drawing machine
Equipment type | Horizontal full immersion lubrication with an independent motor | |
Drawing Capstan Dia. (mm) | 450 | |
Drawing die quantity | 13, 11, 9 | |
Inlet Dia. (mm) | copper | 8 |
aluminum | 9.5 | |
Outlet Dia. (mm) | copper | 1.2-4.2, 1.5-4.2, 2.0-42 |
aluminum | 1.7-5.0, 2.2-5.0, 2.8-5.0 | |
Max. drawing speed (m/s) | 30, 25, 20 | |
Power of each motor (Kw) | 37/55 | |
Take-up type | Double head take-up machine, Single take-up machine, Coiler |
2. FXLS-260 medium wire drawing machine
Equipment type | Horizontal full immersion lubrication |
Drawing Capstan Dia. (mm) | 260 |
Drawing die quantity | 17 |
Inlet Dia. (mm) | 2.5-3.2 |
Outlet Dia. (mm) | 0.4-1.2 |
Max. drawing speed (m/s) | Accordingly |
Power of each motor (Kw) | 11 |
Straight Line Medium Copper rod wire drawing machine
1. Inquiry response within 24 hour. 2. Ensure every quotation is practical &customized according to your requirement. 3. Provide the design suggestions and layout plan for the clients workshop. 4. Provide the technical specification of the auxiliary facilities. 5. Provide professional proposal for the whole project. 6. Engeneers are available to serve the machines overseas. 7. Our factory always welcome to your visit. We can take you to visit our local customers. 8. Quality assurance: 18months except consumable parts.
We devote to good performance, strong packing, mature service to satisfy our clients. |
