100Kg Cast Iron, Steel, Copper Melting Furnace Prices
1.Brief introduction
IGBT medium frequency small melting induction furnace is mainly used for the melting of iron, steel, stainless steel, copper, brass, silver, gold ,glass, aluminium, alloys and metal ores. Melting capacity of induction industrial melting furnace can be from 0.5KG to 500KG.
This medium frequency small melting induction furnace is equipped with a induction coil inside of the power cabinet, and a piece of graphite or magnesia crucible in the middle of induction coil in the furnace body, when the power on, the induction melting furnace will create high temperature with very fast speed, and do the melting process. The power of induction melting furnace can be displayed and adjusted through the rotary switch on the control panel.
2. Features
1). Easy to use: Simple installation, safe and effortless operation.
2). No need to make foundation or any civil work.
3). Super small size and portable, occupies not enough 1.0 square meters.
4). 24 hours nonstop melting ability.
5). Energy saving and environment friendly.
6). To melt different materials, just need to replace a crucible.
7). Using crucible: no need to make lining with refractory materials by skilled person as the normal induction furnace.
8). With digital display of working frequency, current, voltage, power, melting time.
9) Outstanding stirring action, conductive to the uniformity of melting temperature and metal structure, dross, and impurities decrease.
3.Composition of the furnace
1). IGBT Medium frequency induction heating power supply
2). Melting furnace body
3). Compensation capacitor
4). Water cooled cables
5). Crucible
| Model | Max.input power | Melting Capacity | ||
| Steel,stainless steel ,cast iron | Copper ,bronze,brass,silver,gold | Aluminum,aluminum alloy | ||
| IGBT-15 | 15 | 3 | 10 | 3 |
| IGBT-25 | 25 | 5 | 20 | 5 |
| IGBT-35 | 35 | 10 | 30 | 10 |
| IGBT-45 | 45 | 18 | 50 | 18 |
| IGBT-70 | 70 | 25 | 100 | 25 |
| IGBT-90 | 90 | 40 | 120 | 40 |
| IGBT-110 | 110 | 50 | 150 | 50 |
| IGBT-160 | 160 | 100 | 250 | 100 |
| Model | IGBT-15 | IGBT-25 | IGBT-35 | IGBT-45 | IGBT-70 | IGBT-90 | IGBT-110 | IGBT-160 |
| Input power (KW) | 15 | 25 | 35 | 45 | 70 | 90 | 110 | 160 |
| Output current (A) | 3~22 | 5~45 | 10~70 | 15~95 | 20~130 | 25~170 | 30~200 | 35~290 |
| Output voltage (V) | 70~520 | 70~550 | ||||||
| Input power supply | 3 Phase, 380V±20%, 50Hz or 60 Hz | |||||||
| Input oscillating frequency | 1KHz~20KHz depends on customers' requirements to workpiece | |||||||
| Duty cycle | 100% 24 hours continuous working | |||||||
| Power supply wight (KG) | 24 | 24 | 34 | 36 | 51 | 57 | 89 | 100 |
| Volume of power cabinet (cm) | 46×27×45 | 65×35×55 | 75×40×87 | 75×50×87 | ||||

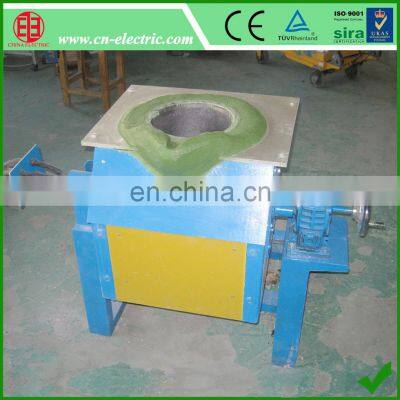

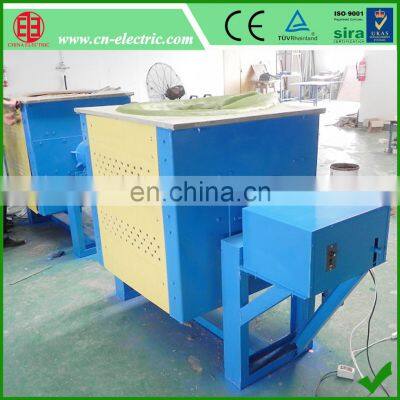

Furnace body:
1. Manual reducer tilting type
2. Electric reducer tilting type
3. Hydraulic tilting type
Power Control Cabinet:
Power Control Cabinet:
Crucibles:
Melting Site:
Pre-sales service: After-sales service:
* Inquiry and consulting support. * Training how to use and maintain the machine.
* Sample testing support. * Engineers available to service machinery overseas.
* View our Factory. * 24 hours service by phone, email, skype, whatsapp
