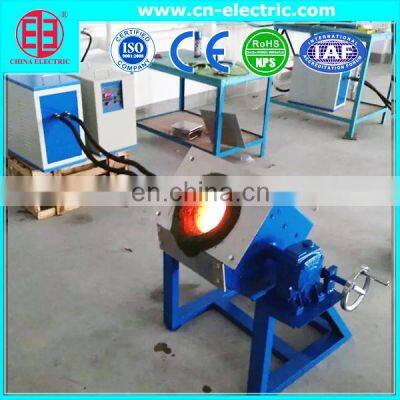

electromagnetic induction melting furnace
Medium frequency induction melting furnace are mainly used to melt steel, stainless steel, copper, brass, silver, gold ,glass and aluminium materials, etc.
Adopt IGBT medium-frequency power supply, it is more efficient than normal electrical furnaces and becomes more and more popular in metallurgy field.
Melting capacity ranges 1~500Kg.
1. Easy to install and operate. No need to make foundation or any civil work.
2. Super small size and portable, occupies less than 1.0 square meters.
3. 24 hours no-stop melting ability.
4. Energy saving and environmental protection.
5. It's easy to change furnace to melt different materials.
6. Using crucible: No need to make lining by refractory material.
7. With digital display of working frequency, current, voltage and power.
1. Technicals
Model |
IGBT -15 |
IGBT -25 |
IGBT -35 |
IGBT -45 |
IGBT -70 |
IGBT -90 |
IGBT -110 |
IGBT-160 |
|
Input Power Supply |
Three phase, 380(V)±20%, 50/60HZ |
||||||||
Input Power (KW) |
15 |
25 |
35 |
45 |
70 |
90 |
110 |
160 |
|
Output Current (A) |
3-22 |
5-45 |
10-70 |
15-90 |
20-130 |
25-170 |
30-200 |
35-290 |
|
Output Voltage(V) |
70-550 |
||||||||
Output Frequency(HZ) |
1KHZ-20KHZ, can be customized as clients requirement |
||||||||
Duty |
24 hours non-stop |
||||||||
2. Melting ability

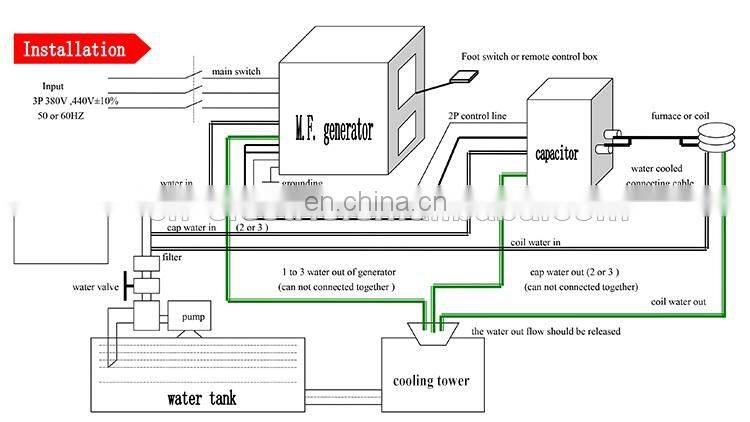

3. Installation Drawing

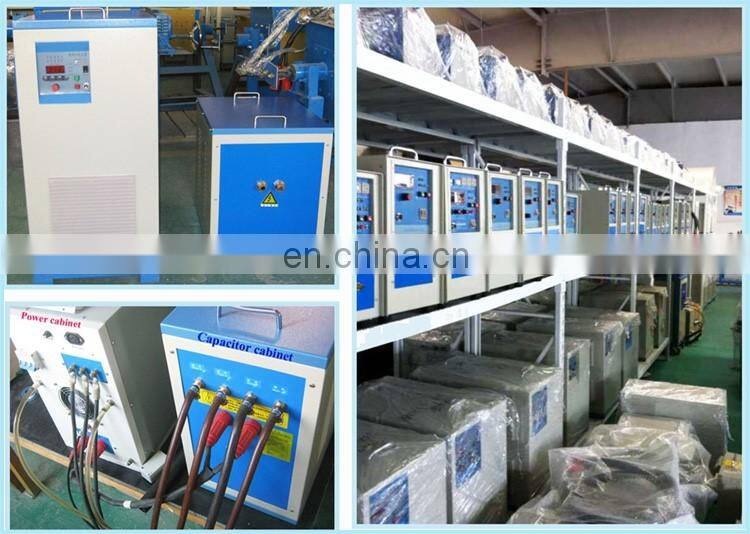

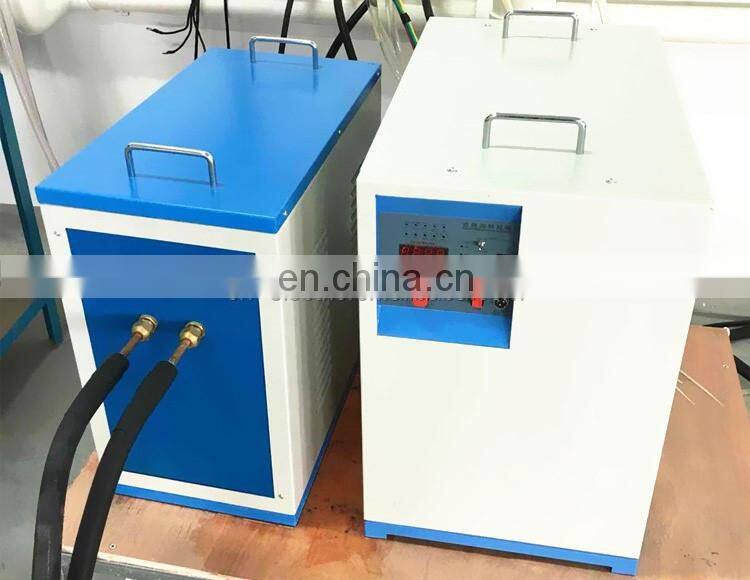

1. IGTB power Supply
2. Tilting method

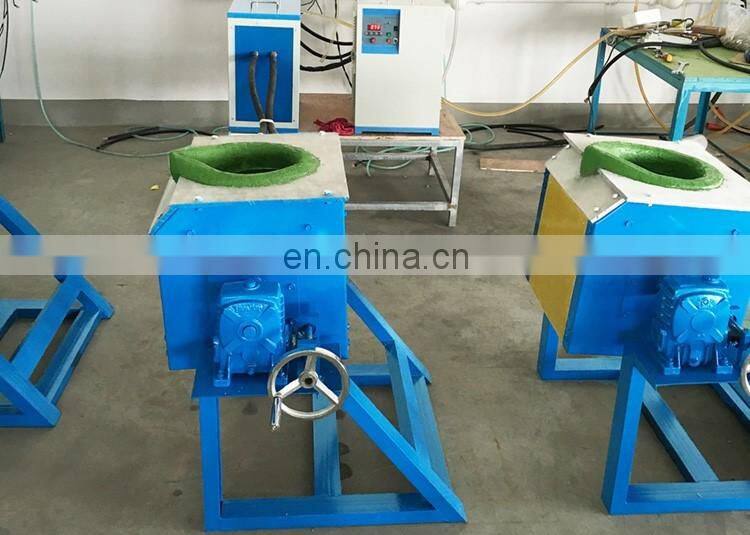

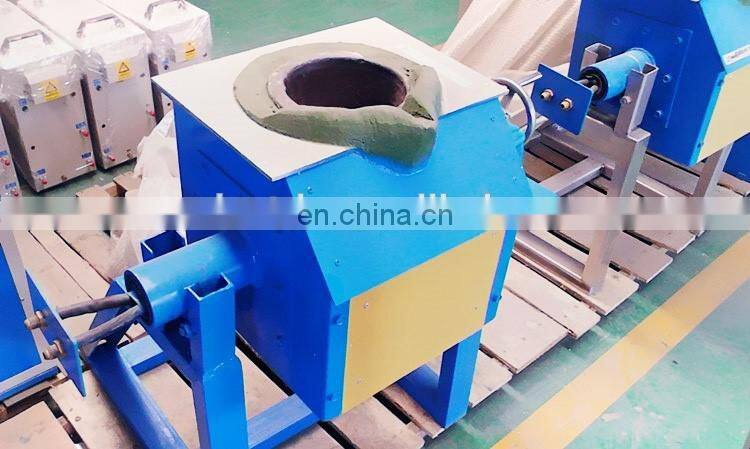

2.1 Manual tilting method

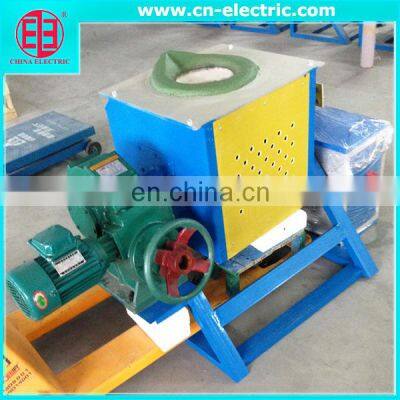

2.2 Mechanical tilting method

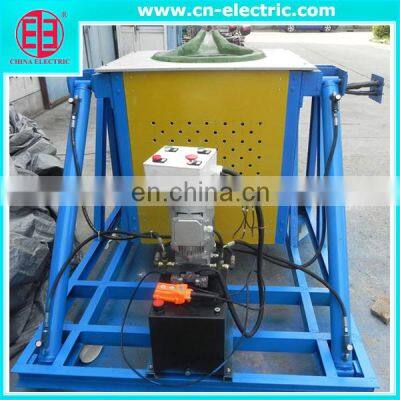

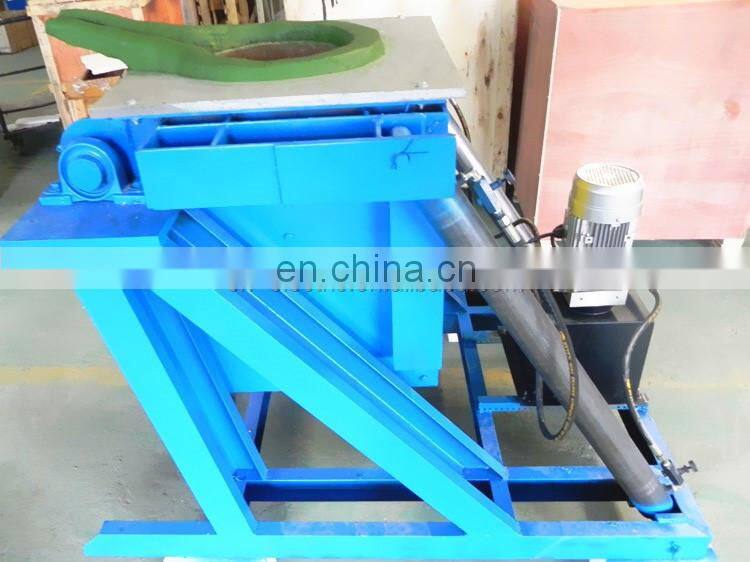

2.3 Hydraulic tilting method

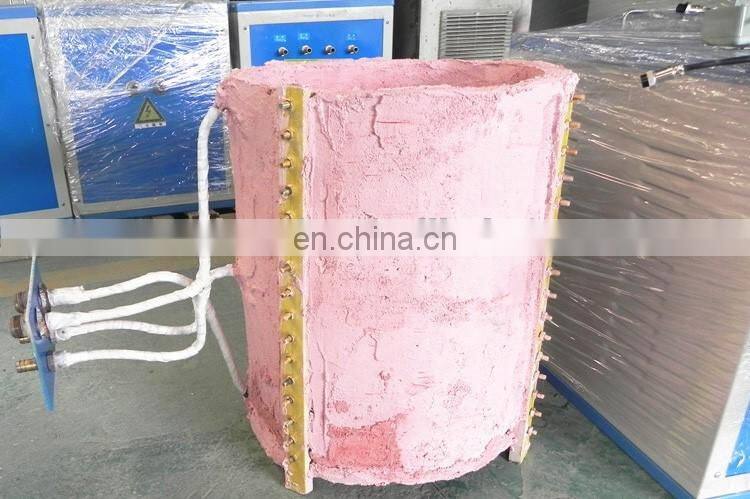

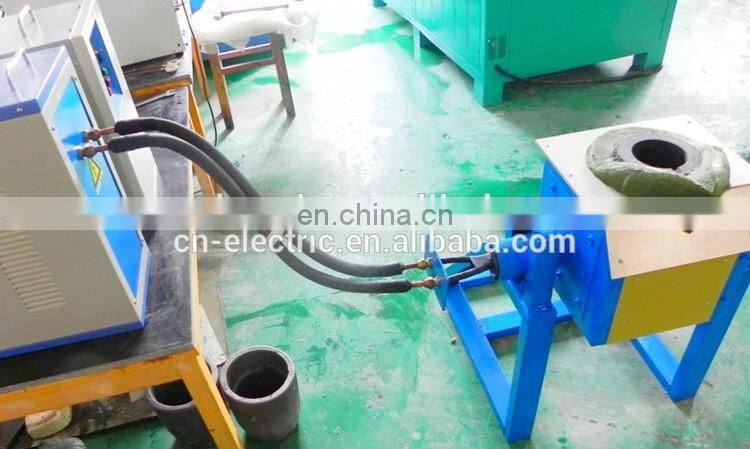

3. Inductor

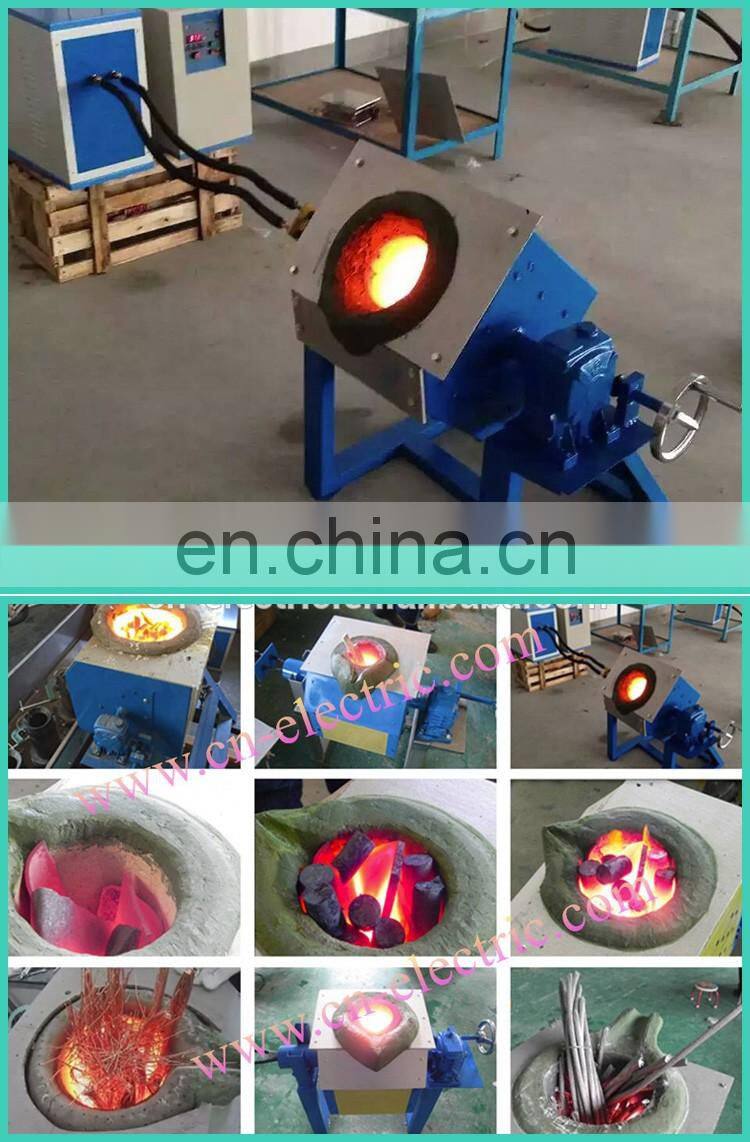

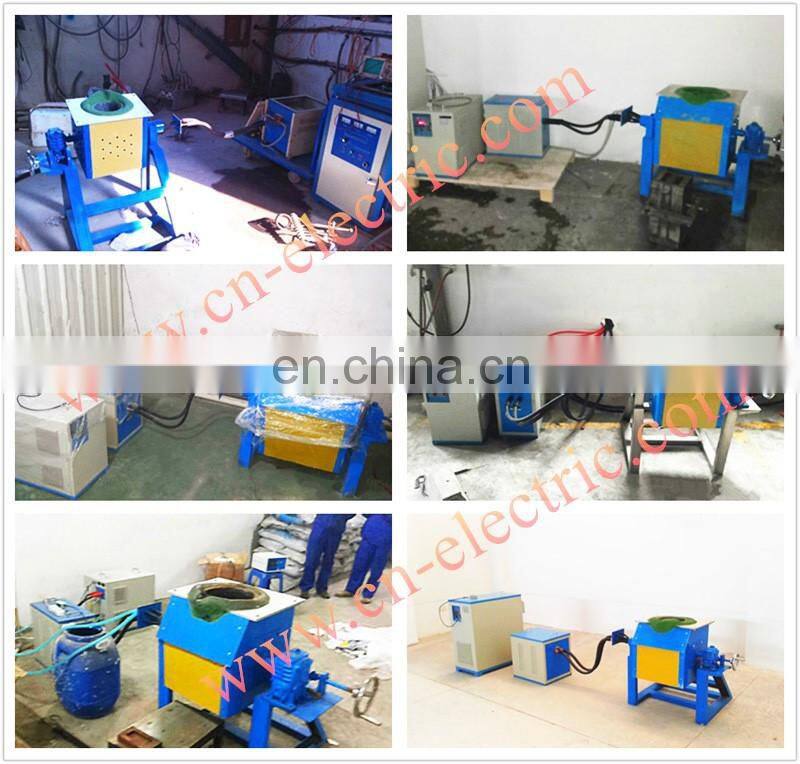

4. Pictures feedback from customers.

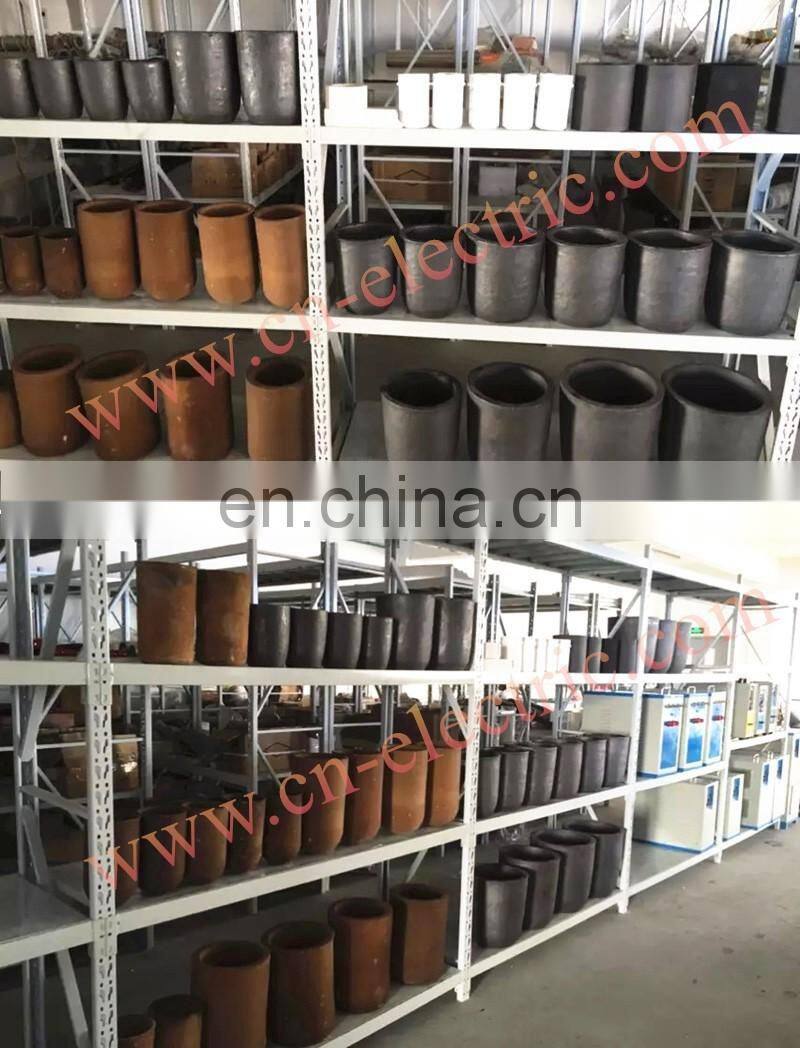

5. Crucibles
6. Testing before shipment

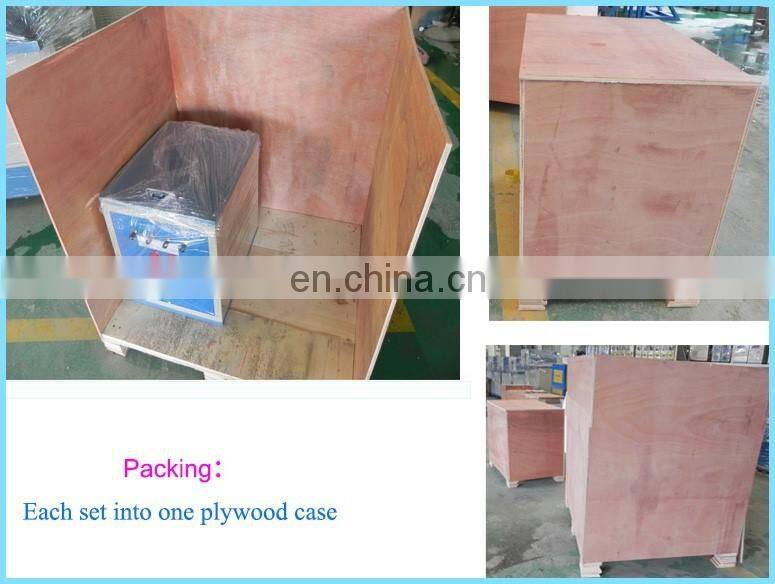

Packaging & Shipping
- Any of your inquiry will be responsed within 12 hours.
- We provide english operation manuals.
- Our factory always welcome your visit.
- Quality assurance: 12 months except crucible and other consumables .
We devote to good performance, strong packing, mature service to satisfy our clients.
