50HZ or 60HZ Small furnace Copper Smelter for melting steel
Table 1 Quick details
Input power |
15-160kw |
Output current |
3-22 A |
Input power supply |
Three phase, 380(V)±20%, 50/60HZ |
Oscillation frequency |
1KHZ-20KHZ or customized |
Power supply |
IGBT |
Working time |
24 hours non-stop |
Input Frequency |
50/60HZ |
Melting material |
Steel, Aluminum, Copper, Gold, Iron, etc. |
Model of |
Smelting steel& stainless steel |
Smelting copper, gold, silver |
Smelting aluminum |
IGBT-15 |
|
10KG |
3KG |
IGBT-25 |
5KG |
20KG |
6KG |
IGBT-35 |
10KG |
30KG |
10KG |
IGBT-45 |
18KG |
50KG |
20KG |
IGBT-70 |
25KG |
100KG |
30KG |
IGBT-110 |
50KG |
150KG |
50KG |
IGBT-160 |
100KG |
250KG |
100KG |

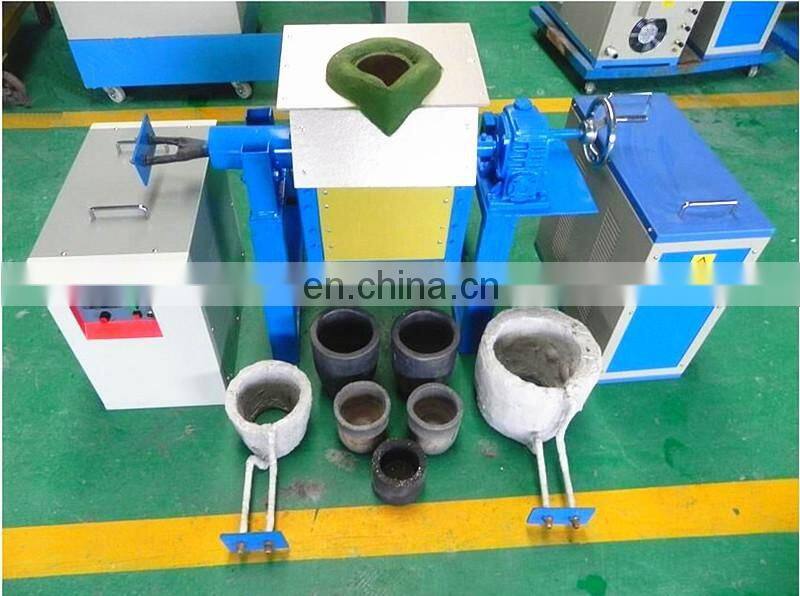

1. 1 KHz ~ 20 KHz IGBT medium frequency induction power supply cabinet --1PC
2.Compensation capacitor cabinet --------------------------------------------------- 2PC

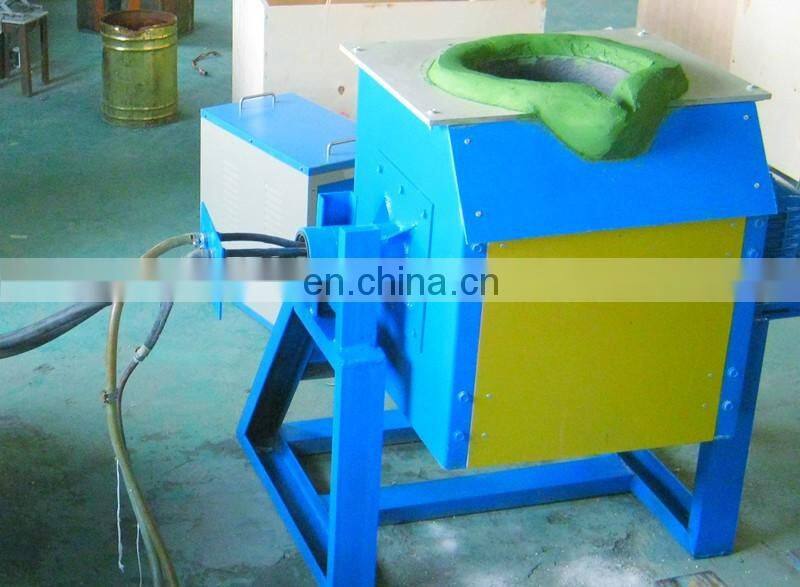

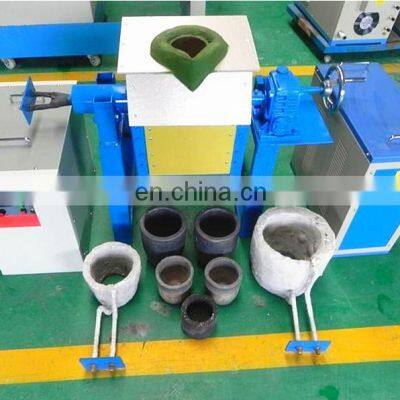

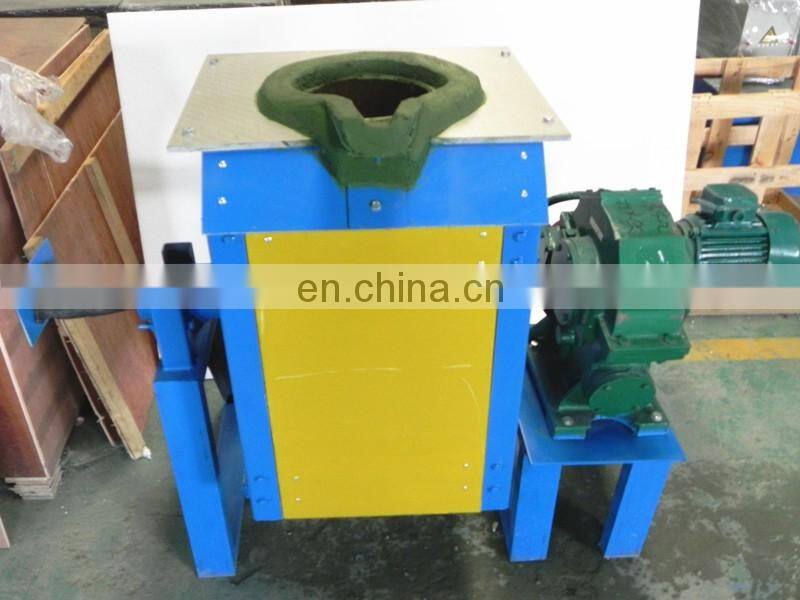

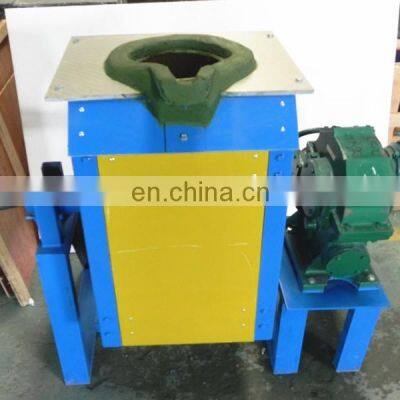

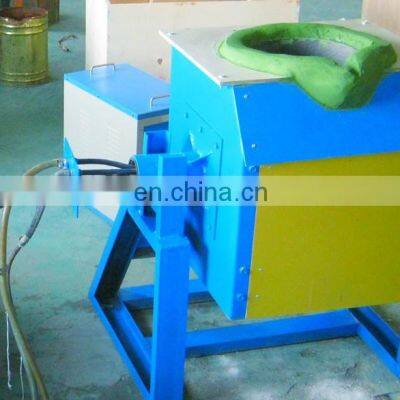

3. 1 kg to 250 kg capacity induction melting furnace body with crucible ------1PC
4. Water cooled cables (connect furnace body with capacitor cabinet) ------ 2PCS
5. Copper cables (connect capacitor cabinet with power supply cabinet) --- 2PCS
6. Signal wire ---------------------------------------------------------------------------- 1PC
7. Foot switch --------------------------------------------------------------------------- 1PC

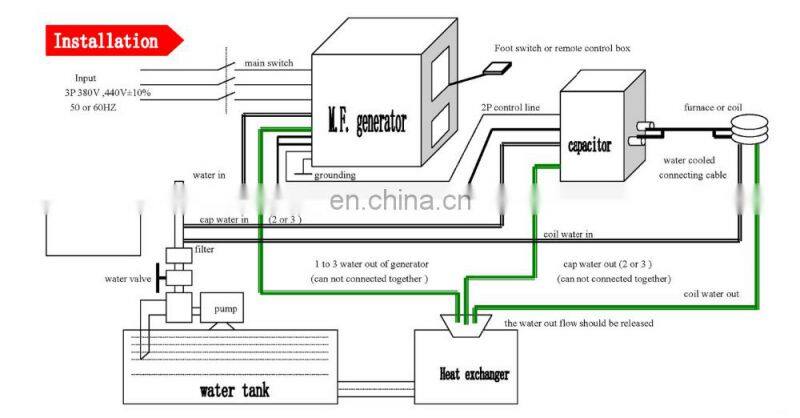

Installation
CompoComponent introduction
1. IGBT Power supply1KHZ-20KZ vibration parallel structure

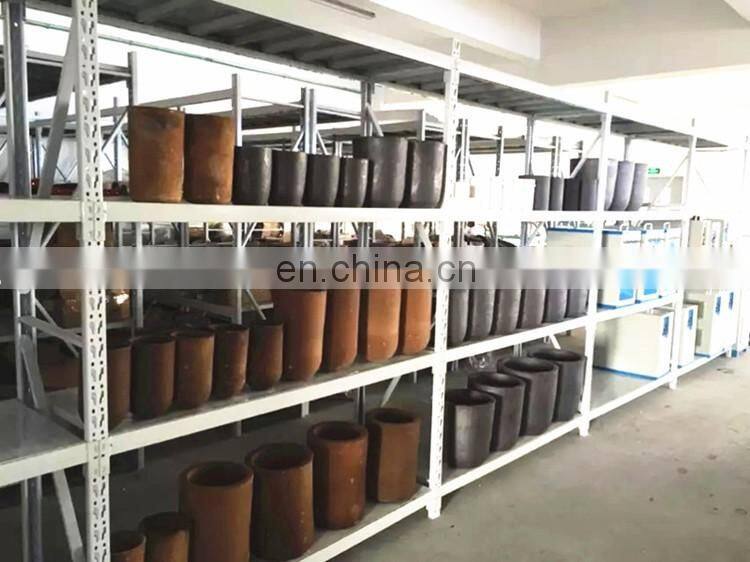

2. Crucible—Graphite, Corundum, Magnesia Crucible

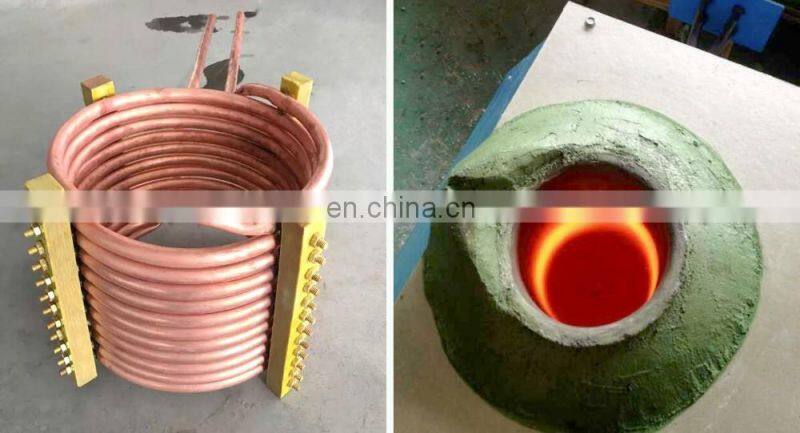

3. Induction coil— 100% copper coil
24 hours online for replying your questions&inquiries at the first time
- Professional suggestions for the furnace solution before orfer
- Keep clients updated in the process of production
Shanghai Fortune Electric Co., LTD is engaged to the development, production and sales of medium frequency furnace. It is now featured IGBT series, which are mainly used in metal heating,
forging,melting and welding of the machinery manufacturing,machining and auto industry.
Main componets are all made up of transistor manifold from well-knownmanufacturers and German
original high-power-speed switching tube IGBT. Fortune electric products are sold nationwide with competitive price and reliable quality. It is our philosophy that to creat value with our service.
We have got ISO9001:2008 certificate, CCC certificate. Besides, we also have got CE certificate,
UL certificate as well as SONCAP certificate for our main products.
We have always been committed to technological innovation for various requirements of our customers. As we integrate the technology, manufacturing, sales and service, we will offer professional traning before sales, and after-sales services. It is our wish that is to provide the most effective and in-time services so
that we will offer more values to our customers.

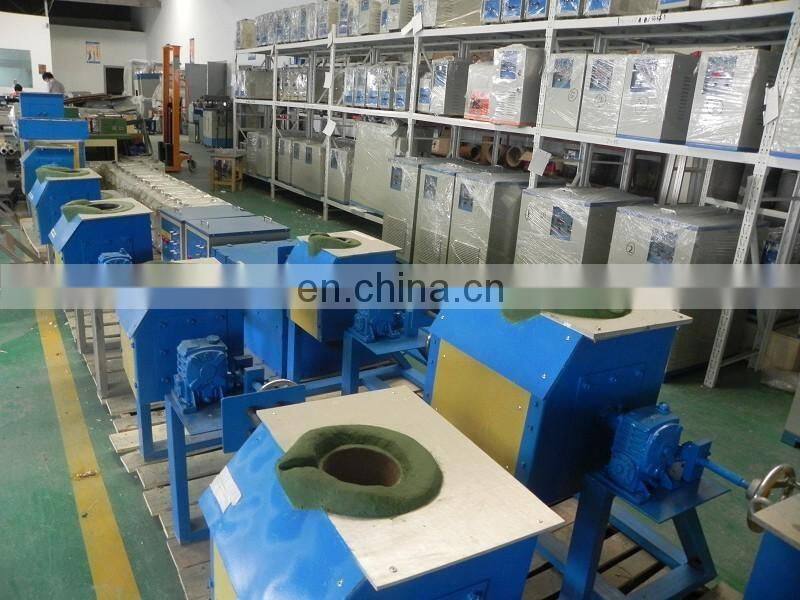

Warehouse
