Help CenterCapacity 10 Ton Stainless Steel Melting Furnace
Related Products
Capacity 25 ton Steel Melting Furnace
- Application

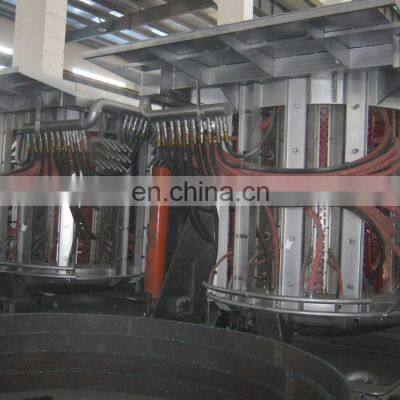

- Structure Features
1. Solid steel structure and durable;
2. Good magnetic isolation, safe and reliable;
3. Solid frequency conversion power supply, easy operation; Adjustable power rate, easy operation and maintenance;
4. Easy to start up with load or free of load.
- Model explanation: GWG-10-6000/0.5J
GWG--------Steel Shell Medium Frequency Coreless stainless Steel Melting Furnace
-10-----------Rated Capacity 10 Ton (10000 kg)
-6000-------Rated Power 6000 Kw
/0.5----------500 Hz (0.5 KHz)
-J------------Hydraulic tilting
- Main Data Sheet for capacity 10 ton stainless steel melting furnace
Name |
Unit |
Parameter |
Remark |
|||
Furnace body: | ||||||
Model |
|
GWG-10-6000/0.5J |
or GW-10-6000/0.5J |
|||
Rated capacity |
t |
10 |
|
|||
Max load capacity |
t |
13 |
Molten steel output |
|||
Quantity of furnace body |
unit |
2 |
One use one standby for lining-making |
|||
Two furnace body alternative change type |
|
manually |
change water cooling cable screw connection to capacitor bank |
|||
Tilting type |
|
hydraulic tilt |
|
|||
Furnace body frame/shell type |
|
steel shell |
magnetic yoke |
|||
Phase |
Φ |
single |
|
|||
Working frequency |
Hz |
500 |
Center frequency |
|||
Voltage of inductor |
VAC |
3200~3400 |
Double voltage |
|||
Melting rate/speed |
Iron @ 1480 oC |
T/Hr |
10 |
hot lining, continuous, steel earning rate≥98% |
||
Steel @ 1650 oC |
T/Hr |
8 |
||||
Tap to tap time |
Iron @ 1480 oC |
Mins |
60~75 |
|||
Steel @ 1650 oC |
Mins |
75~90 |
||||
Power consumption |
Iron @ 1480 oC |
kw.h/t |
550 |
|||
Steel @ 1650 oC |
kw.h/t |
600 |
||||
Inner diameter of inductor/coil |
mm |
Φ1350 |
|
|||
Height of inductor/coil |
mm |
2000 |
|
|||
Rated temperature |
Iron |
oC |
1480 |
|
||
steel |
oC |
1650 |
|
|||
Lining leakage alarm system |
|
included |
|
|||
Furnace over (lid) |
|
excluded |
|
|||
Cooling medium |
|
water |
|
|||
Cooling water circle type |
|
closed |
closed type if using closed cooling tower, Or as buyer’s request |
|||
Power supply cabinet: | ||||||
Model |
|
KGPS-6000-0.5S |
|
|||
Type |
|
KGPS |
Thyristor type |
|||
Rated power |
kw |
6000 |
6MW |
|||
Incoming voltage of MF power supply |
VAC |
1000 |
|
|||
Power Frequency |
Hz |
50 |
|
|||
Incoming current |
A |
3400 |
|
|||
DC Voltage |
VDC |
1250 |
|
|||
Rectification mode |
|
12 pulse |
|
|||
Power factor |
cosθ |
≥0.95 |
|
|||
Starting rate |
% |
100 |
|
|||
Cooling medium |
|
water |
|
|||
Cooling water circle type |
|
closed |
or open type as buyer’s request |
|||
Capacitor bank type |
|
Open frame |
not in closed cabinet |
|||
Material of cooling system water pipes |
|
stainless steel |
|
|||
Ambient Temperature |
oC |
-15~+40 |
|
|||
Altitude above see level (max) |
meters |
1000 |
Need special design if >1000m |
|||
Water cooling system: | ||||||
Cooling water for furnace body |
Pressure of incoming water |
Mpa |
0.25~0.3 |
|
||
Temperature of incoming water |
oC |
5~35 |
|
|||
Temperature of outlet water |
oC |
≤55 |
|
|||
Flow rate |
t/h |
160 |
a furnace body |
|||
Water temperature rise |
oC |
10 |
|
|||
Cooling water for power supply |
Pressure of incoming water |
Mpa |
0.1~0.2 |
|
||
Temperature of incoming water |
oC |
5~35 |
|
|||
Temperature of outlet water |
oC |
≤55 |
|
|||
Flow rate |
t/h |
90 |
|
|||
Water temperature rise |
oC |
10 |
|
|||
Rectification transformer: | ||||||
Rectification transformer |
Capacity |
KVA |
7000 |
1pc |
||
Model |
|
ZSSP-7000/20 -1.0 |
|
|||
Frequency |
Hz |
50 |
|
|||
Primary Voltage |
KV |
20 or else |
Provide by buyer |
|||
Input connection |
|
Δ |
delta |
|||
Secondary Voltage |
V |
1000 |
|
|||
Connection |
|
Epitaxial triangular phase-shifting±7.5º D (+7.5º)dyn D (-7.5º)dyn |
|
|||
Impedance voltage |
|
8~9% |
|
|||
Phase |
|
Three-phase input, six-phase output |
|
|||
Voltage adjust mode |
|
No excitation voltage adjust |
|
|||
Cooling method |
|
Force-oil and water cooling |
|
|||
Cooling medium |
|
25# transformer oil |
|
|||
HV Winding Material |
|
copper |
|
|||
LV Winding Material |
|
copper |
|
|||
Oil level gauge type |
|
Sight class type |
|
|||
Protection rating |
|
hermetically sealed |
|
|||
Using condition |
|
outdoor |
|
|||
|
INPUT BUSHINGS/ OUTPUT BUSHINGS |
|
included |
|
|||
