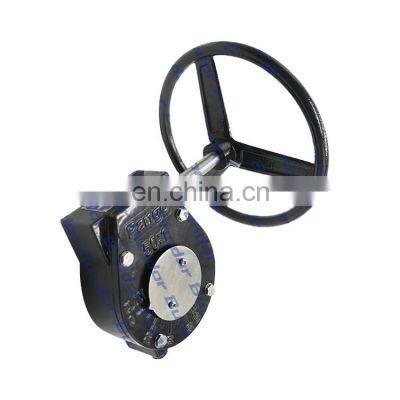

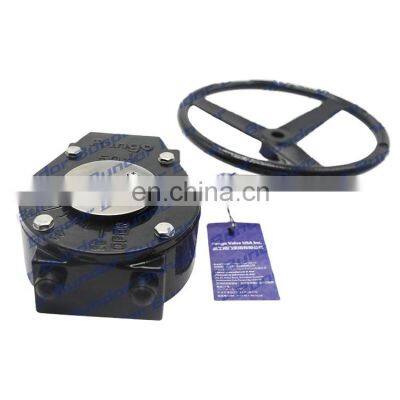

Help CenterBundor IP65 Waterproof Transmission Ratio 50:1 Manual Valve Worm Gear Box
Related Products
-
Bundor HT200 Waterproof 50:1 Worm Gear Box for Valves With HandwheelNegotiableMOQ: 1 -
Bundor HT200 Cast Iron Gearbox for Valves With HandwheelNegotiableMOQ: 1
-
Bundor QT450 Cast Iron Gearbox for Valves With HandwheelNegotiableMOQ: 1
-
Bundor 1/2 Inch Brass PN16 DN15-25 Two Way Automatic Flow Control Ball Valves FCU Motorized Controller ValveNegotiableMOQ: 1
-
Bundor Brass PN16 AC24 AC110 AC220V 50/60Hz DN25 FCU Motorized Valve With Actuator For Air ConditionerNegotiableMOQ: 1
Product advantages:
1. The protection grade of worm gear box reaches IP65.
2. Worm gear box regularly do dust and anti-spray type test, to ensure that the product protection performance is reliable.
3.Lithium base grease, water and oil resistant, not easy to aging, long life (high temperature 150 degrees, low temperature -20 degrees), worm gearbox warranty for 5 years.
4. The worm adopts 45 steel quenched and tempered treatment, with good comprehensive mechanical properties and long service life.
5, The range of worm gear regulation is large, most of the products on the market is + 5 degrees, as the worm head is + 10 degrees.
| Name | Body | Turbine | Lid | Worm | Worm shaft | Handwheel |
| Material | HT200 | QT450 | QT450 | 45 | 45 | DI |
| Ratio | Size | Flange | (24:1) | (30:1) | (50:1) | ||||
| DN | NPS | L1 | 149 | L1 | 206 | L1 | 217 | ||
| 24:1 | 50 | 2" | F05 | ||||||
| 65 | 2 1/2" | L2 | 146 | L2 | 210 | L2 | 215 | ||
| 80 | 3" | ||||||||
| 100 | 4" | F07 | L3 | 105 | L3 | 153 | L3 | 156 | |
| 125 | 5" | ||||||||
| 150 | 6" | L4 | 70 | L4 | 90 | L4 | 92 | ||
| 30:1 | 200 | 8" | F010 | ||||||
| 250 | 10" | L5 | 35 | L5 | 41 | L5 | 49 | ||
| 50:1 | 300 | 12 | |||||||
| 350 | 14 | ΦD | 150 | ΦD | 200 | ΦD | 250 | ||
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
