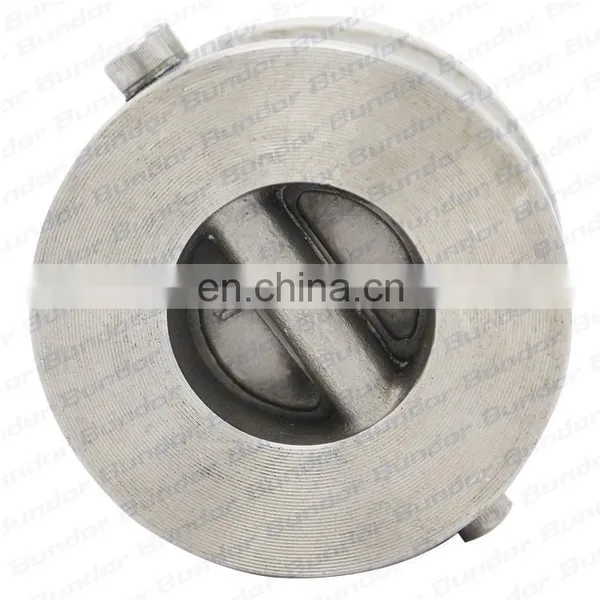

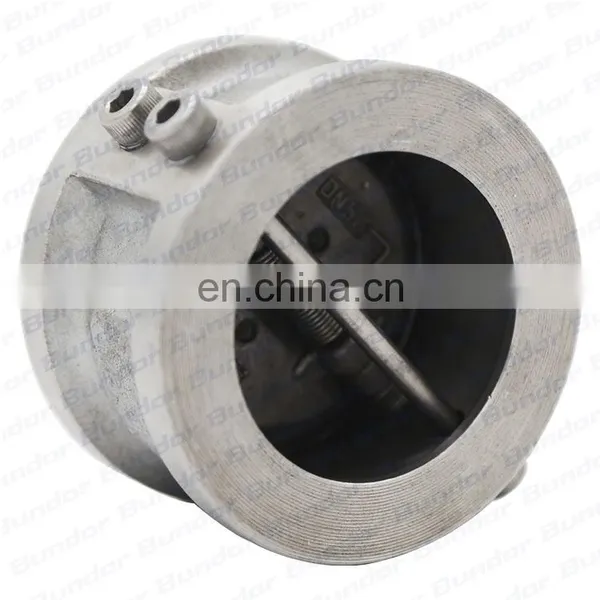

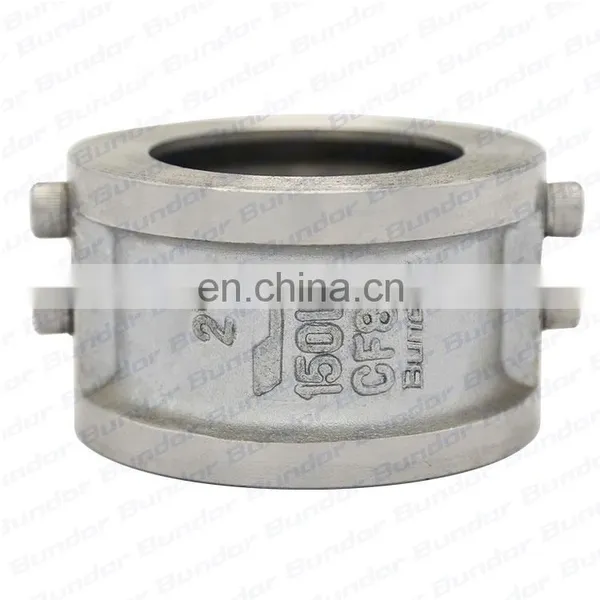

Help CenterBundor Class150 2" Stainless Steel Dual Plate Wafer Check Valve Price List
Related Products
-
Bundor 150LB Stainless Steel Wafer Type Anix Nonreturn Valve dn 75 Check ValveNegotiableMOQ: 1 -
Bundor DN50-300 PN16 Vertical Check Valve CF8 Disc 2inch-12inch Wafer Type Flap Check Valve Non Return ValveNegotiableMOQ: 1
-
Bundor DN50-250 PN16 Vertical Check Valve CF8 Disc 2inch-12inch Wafer Non Return ValveNegotiableMOQ: 1
-
Bundor Non Return Valve Sizes for Air Size 150nb ss Non Return Valve for Water Oil GasNegotiableMOQ: 1
-
Bundor Rubber Dual Plate Check Valve 8 Inch Directional ValveNegotiableMOQ: 1
FEATURES
Stainless steel Dual plate check valve test:
1.Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
2.Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
3.Special Test: On request, any other test can be carried out according to special instruction by client.
| Name | Body | Seat | Disc | Stem |
| Material | 304 | EPDM | 304 | 304 |

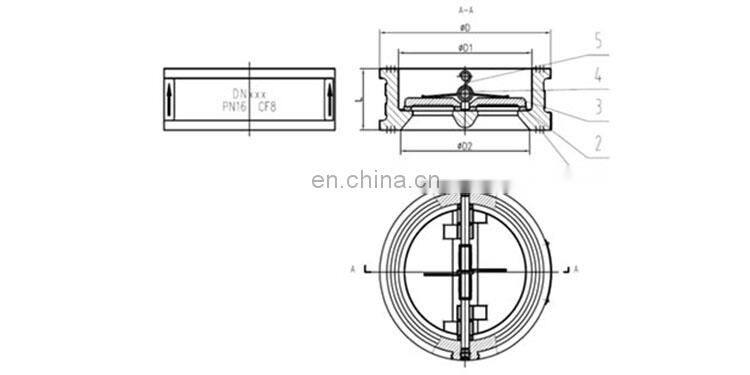

| Size | A | B | H | |
| 50 | 102 | 65 | 45 | |
| 65 | 120 | 80 | 48 | |
| 80 | 133 | 94 | 65 | |
| 100 | 157 | 117 | 66 | |
| 125 | 188 | 145 | 73 | |
| 150 | 215 | 170 | 80 | |
| 200 | 273 | 224 | 90 | |
| 250 | 330 | 265 | 115 | |
| 300 | 375 | 310 | 116 | |
| 350 | 435 | 360 | 130 | |
| 400 | 450 | 410 | 140 | |
