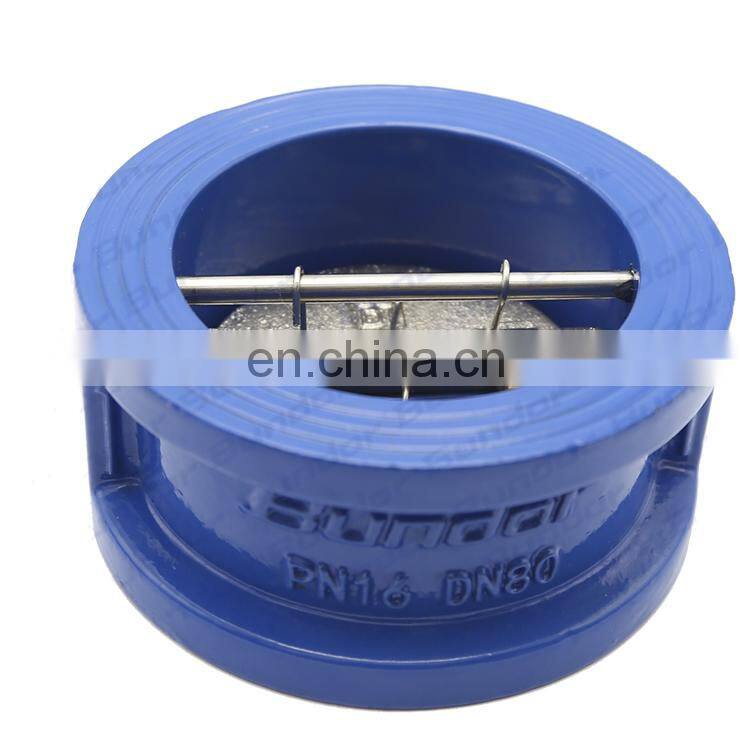

Help CenterBundor Rubber Dual Plate Check Valve 8 Inch Directional Valve
Related Products
-
Bundor PN16 Dual Plate DN40-600 Cast Iron Spring Loaded Wafer Check ValveNegotiableMOQ: 1 -
Bundor 2" Stainless Steel Dual Plate Swing Check Valve PN64 Checkvalve SupplierNegotiableMOQ: 1
-
Bundor Ductile Iron Flanged Swing Check Valve Supplier Metal Check ValveNegotiableMOQ: 1
-
Bundor 150LB Stainless Steel Wafer Type Check Valve DN40-600 Wafer Type Flap Non Return ValveNegotiableMOQ: 1
-
Bundor DN50 Stainless Steel Dual Plate Wafer Check Valve Class150 PriceNegotiableMOQ: 1
Product Advantages :
1. Double-plate and efficient operation of the valve seat design, light weight.
2.The clip sealing surface, the use of small size and light weight design, can install different standard flanges
3.The seal uses different elastomers mixed lining or alloy to meet different application needs.
4.Open and close the valve plate, the average distribution of the load on each valve plate, so that the valve
plate can quickly react.
5. Each product of Bundor has its own QR code mark from the part to the finished product, and its unique ID ID number. The production process can be automatically checked through the qr code, so that the product can be traced.
6. The products under the brand of Bundor are insured by the Pacific insurance company with the quality of 10 million, and the warranty lasts for 2 years. If the product is damaged within two years, the company shall compensate for the loss unconditionally due to the quality problem of the product itself.

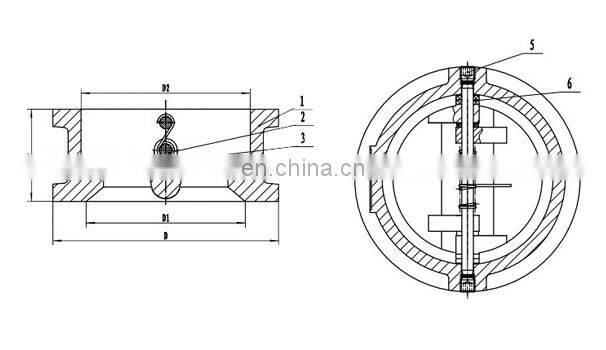

| Name | 1-Body | 2-Stem | 3-Spring | 4-Disc | 6-Ring |
| Material | DI | 304 | SS304 | DI | NBR |
| DN | NPS | L±1.5 | D | D1 | D2 |
| 50 | 2'' | 43 | 101 | 58 | 65 |
| 65 | 2 1/2'' | 46 | 118 | 75 | 80 |
| 80 | 3'' | 64 | 132 | 85 | 94 |
| 100 | 4'' | 64 | 157 | 105 | 117 |
| 125 | 5'' | 70 | 186 | 125 | 145 |
| 150 | 6'' | 76 | 213 | 165 | 170 |
| 200 | 8'' | 89 | 272 | 215 | 224 |
| 250 | 10'' | 114 | 328 | 260 | 265 |
| 300 | 12'' | 114 | 378 | 300 | 310 |
Bundor International
Packaging & Shipping
Our Services
FAQ
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 24 years experience in valve research and production .
