Product advantages:
1.Stainless steel parts
The inner parts are made of stainless steel to ensure the purity of the medium.
2.Long service life
It overcomes the defect that the traditional valve is easy to rust and corrode, and extends the service life.
3.Reliable, hygienic and anti-corrosion
The inner and outer surface of valve body, cover, battening and connecting plate is sprayed with epoxy resin.
4.Good performance
The valve stem material is stainless steel, the valve stem thread is rolled, the performance is excellent.
5.Simple and compact structure
It is characterized by simple and compact structure, reasonable design, reliable sealing, lightweight material and flexible operation.
6.Easy to install and disassemble
Small volume, smooth passage, small flow resistance, light weight, easy to install, easy to disassemble

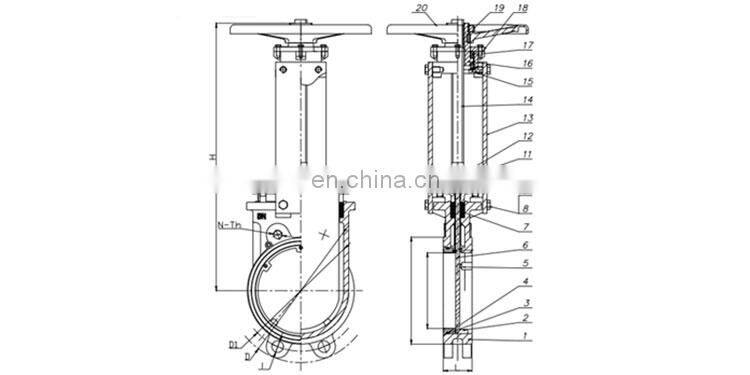

| Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | |
| Material | WCB | 2Cr13 | 304 | 2Cr13 | |
| DN(mm) | L | D0 | H1 | ||
| 50 | 48 | 180 | 295 | ||
| 65 | 48 | 200 | 315 | ||
| 80 | 51 | 220 | 360 | ||
| 100 | 51 | 240 | 400 | ||
| 125 | 57 | 260 | 450 | ||
| 150 | 57 | 280 | 510 | ||
| 200 | 70 | 300 | 585 | ||
| 250 | 70 | 340 | 695 | ||
| 300 | 76 | 380 | 795 | ||
| 350 | 76 | 400 | 950 | ||
| 400 | 89 | 450 | 1000 | ||
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receiving the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
