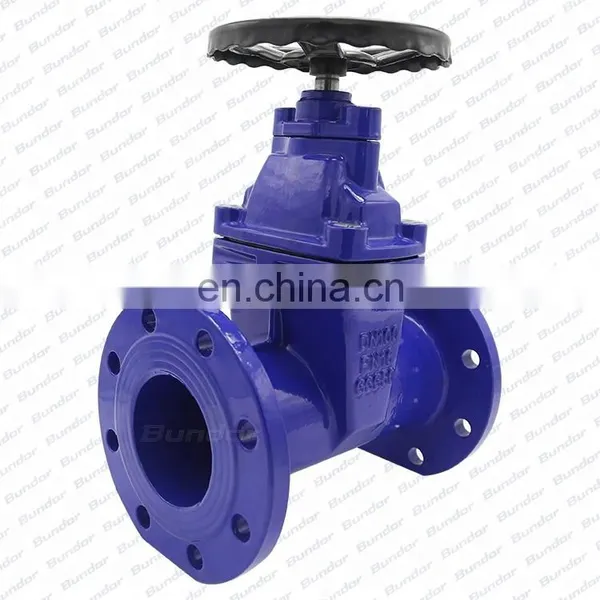

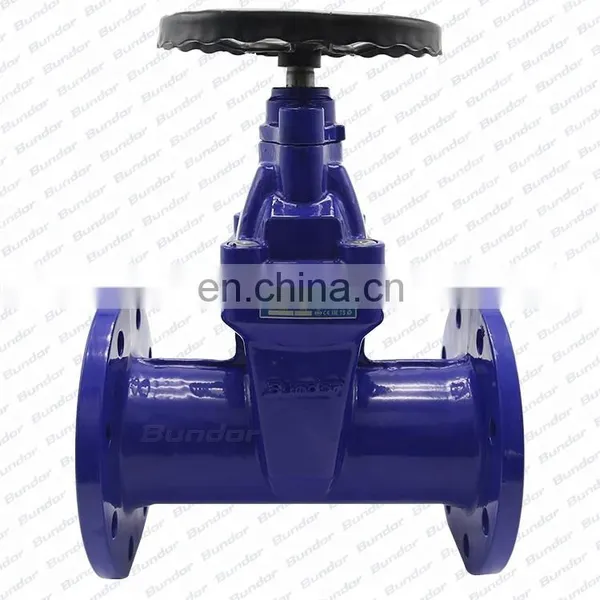

Bundor DN50-1200 GGG50 Resilient Seat 12 inch Sluice 200mm Gate Valve Price Dierct Buried Gate Valve

Name: Bundor DN50-1200 GGG50 Resilient Seat 12 inch Sluice 200mm Gate Valve Price Dierct Buried Gate Valve
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

DIN 3352 F5 Resilient Seated Flanged Gate Valves

Features

1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.

2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system.

3.The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient;

4.3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water

5.The stem use brass, operate easily,prevent block

6.Every link, from workblank to the finished product packaging will be inspected strickly.

7.Bundor product quality is covered by China Pacific Insurance with two million dollors. Bundor Valve, Two Years Warranty, Pay Two Back If One Bad. Any quality problems of the product itself, we will pay without conditions.

Name	1-Body	2-Seat	3-Wedge	4-Stem
Material	DI	EPDM	DI+EPDM	2Cr13
Nominal Size	Inch	Face to Face Length F5	PN16
DN	NPS	L	ΦA	ΦB	ΦC
50	2''	250	165	125	102
65	2 1/2''	270	185	145	122
80	3''	280	200	160	138
100	4''	300	220	180	158
125	5''	325	250	210	188
150	6''	350	285	240	212
200	8''	400	340	295	268
250	10''	450	405	355	320
300	12''	500	460	410	378
350	14''	550	520	470	438
400	16''	600	580	525	490
450	18''	650	640	585	550
500	20''	700	715	650	610
600	24''	800	840	770	725
700	28''	900	910	840	795
800	32''	1000	1025	950	900
900	36''	1100	1125	1050	1000
1000	40''	1200	1255	1170	1115
1200	48''	1400	1485	1390	1330
