Product Description

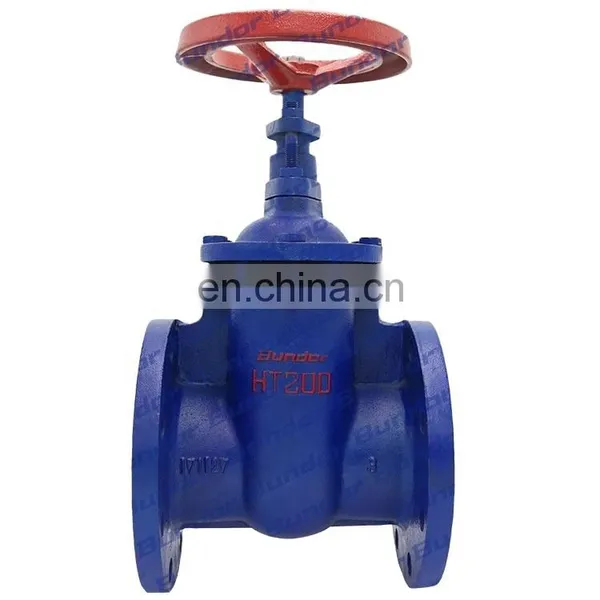

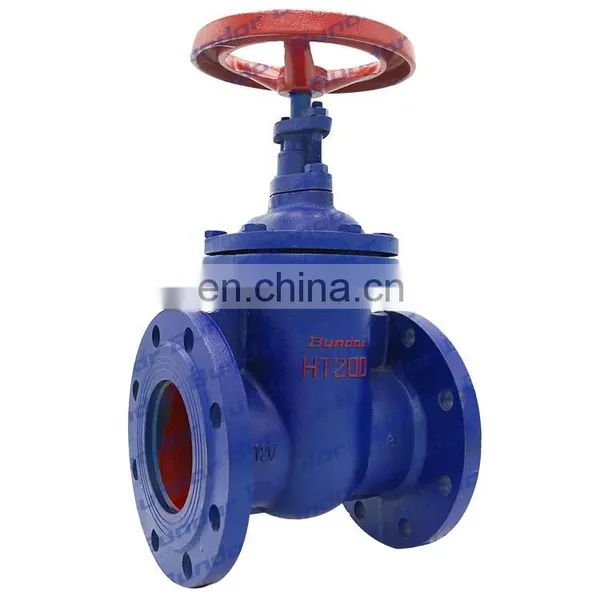

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Features:

1.Cast iron  body adopts HT200, executes GB/T12229-2005 tensile strength 180~210Mpa.

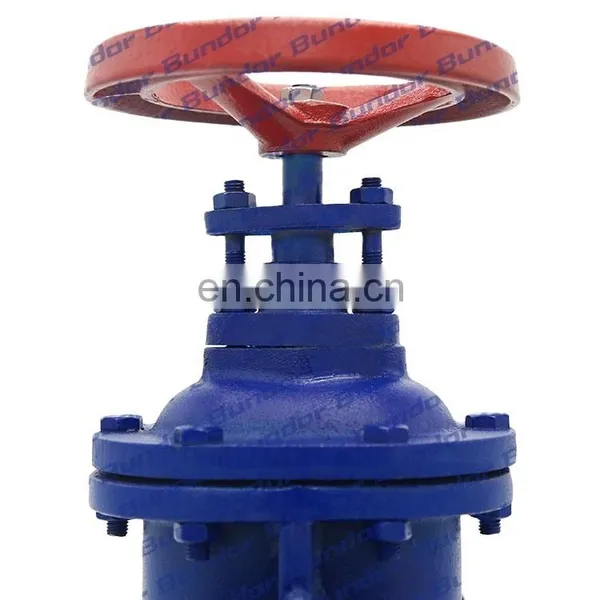

2.Bonnet material adopts HT200,same as body material, its wall thickness in accordance with the requirements of GB, EN standards, in accordance with the requirements of API standards, with a sealed seat;  if the bonnet was stainless steel material, the upper seal seat wil be one  an indivisible whole.
3.The design of T stem processing with spherical head , make contact with the gate size is more reliable; according to the API standard, its surface roughness grinding must reach Ra0.8 μm,  to reduce the operating friction resistance and to prevent leakage of filler.
4.Stem nut according to API standard material A493-D2, QT450-10, if stainless steel, its material is bronze.
5.The standard for body ,bonnet and bolts shall be full tooth bolts, in accordance with the specifications of API, and shall be fitted with heavy nuts, whose bolts / nuts shall be manufactured in strict accordance with the specifications of ASME, B1.1, ASME, B18.2.2.

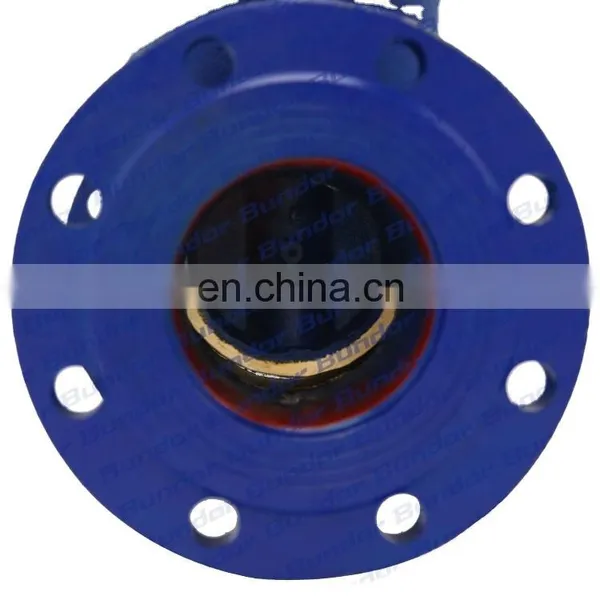

6.The valve seat is made of QT450 material, and the aluminum bronze and the wedge face have different hardness. Stainless steel valve seat as a whole, and can be welded with special carbide according to requirements.

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Name 1-Body 2-Seat 3-Disc 4-Stem 5-Hand wheel
Material HT200 Brass HT200 Q235 HT200
DN L D D1 b H D0 kg
50 178 165 125 20 290 160 9.8
65 190 185 145 20 315 160 12.5
80 203 200 160 22 362 200 16.5
100 229 220 180 24 397 200 20.5
125 254 250 210 26 447 240 33.2
150 267 285 240 26 500 240 40.5
200 292 340 295 26/30 597 320 72
250 330 395/405 350/355 28/32 735 320 98.5
300 356 445/460 400/410 28/32 840 400 140

View related products

Company Information

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

View product categories

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Visit our homepage

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

View product categories

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Get the best quotation

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

About us

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Packaging & Shipping

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Our Services

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valveBundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Join us and become our agent

Bundor 10k gate valve HT200 4" metal seal flanged ends PN16 flanged end cast iron stem industry gate valve

Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.


Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.


Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.


Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.


Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.


Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
