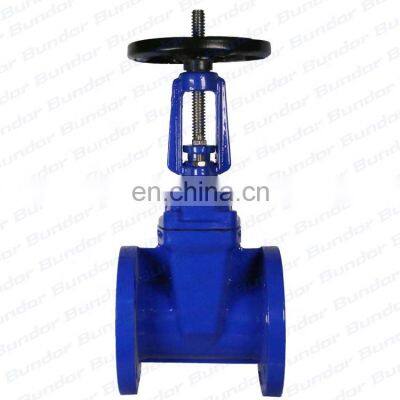

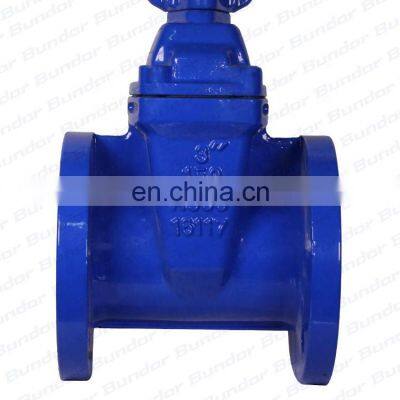

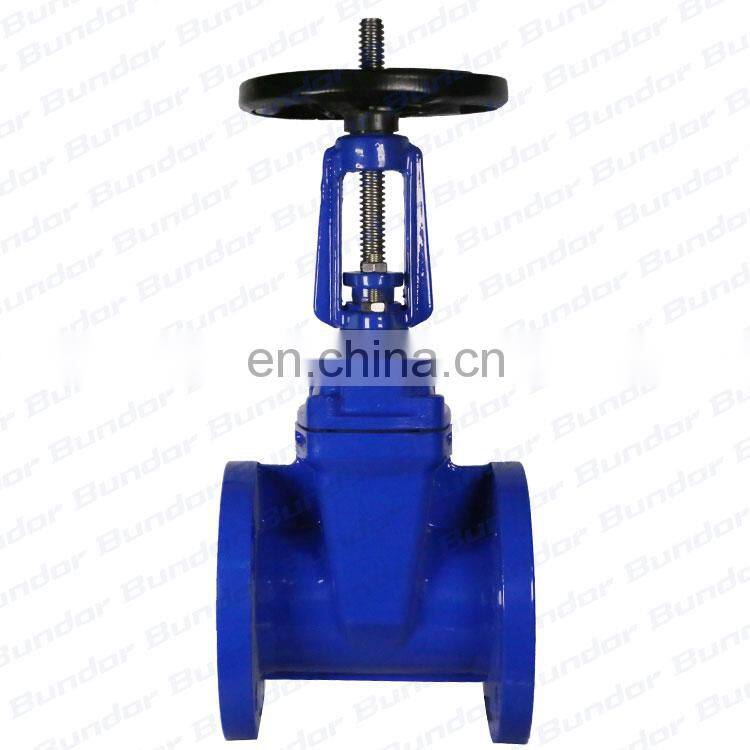

Help CenterBundor 2-24 Inch Manual Operated Rising Stem Gate Valve Direct Buried Gate Valve
Related Products
-
Bundor DIN Flange 5 Inch Ductile Iron Flange Gate Valve With PricesNegotiableMOQ: 1 -
Bundor F5 Flange Sluice Gate Valve DN50-DN600 PN16 Double Bonnet 4 Inch Water Gate ValveNegotiableMOQ: 1
-
Bundor 4" WCB Price Class 150 Flanged Rising Stem Gate Valve With PricesNegotiableMOQ: 1
-
Bundor 8 Inch CF8 Manual Operated Rising Stem SS Stainless Steel 316 Flange Gate ValveNegotiableMOQ: 1
-
Bundor DIN F4 4 Inch Gate Valve Manufacture Supplier With Prices Brass Sluice ValveNegotiableMOQ: 1
Product Advantages
1.Bundor company specialized intentions since 1994, has a professional production, sales, research, after-sales team, is your strong backing of sales and use.
2.The valve body is made of precision casting. The precise geometry makes the north of the valve body not need any finishing, so as to ensure the tightness of the valve.
3.The valve body adopts streamlined design, so that the medium moves straight in the valve cavity, the flow resistance is smaller and the flow area is larger.
4.The bottom of the valve body adopts no groove design, and does not cause accumulation of impurities or dirt, thereby effectively avoiding the leakage caused by impurities scratching of the valve seat.
5.Bundor brand products are underwritten by Pacific Insurance Company with 10 million quality. Two years warranty, pay two back if one bad . The quality of the product is unconditional.

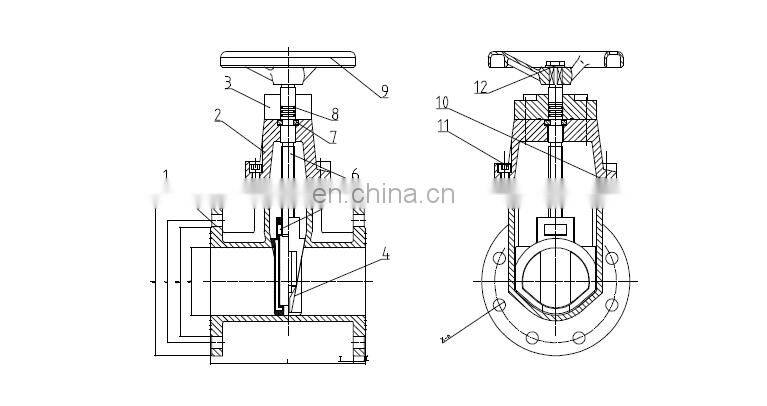

| Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Actuator |
| Material | DI | EPDM | DI | 2Cr13 | Hand Wheel |
| DN | NPS | L | ΦA | ΦB | ΦC |
| 50 | 2'' | 178 | 150 | 120.7 | 92.1 |
| 65 | 2 1/2'' | 190 | 180 | 139.7 | 104.8 |
| 80 | 3'' | 203 | 190 | 152.4 | 127 |
| 100 | 4'' | 229 | 230 | 190.5 | 157.2 |
| 125 | 5'' | 254 | 255 | 215.9 | 185.7 |
| 150 | 6'' | 267 | 280 | 241.3 | 215.9 |
| 200 | 8'' | 292 | 345 | 298.5 | 269.9 |
| 250 | 10'' | 330 | 405 | 362 | 323.8 |
| 300 | 12'' | 356 | 485 | 431.8 | 381 |
| 350 | 14'' | 381 | 535 | 476.3 | 412.8 |
| 400 | 16'' | 406 | 595 | 539.8 | 469.9 |
| 450 | 18'' | 432 | 635 | 577.9 | 533.4 |
| 500 | 20'' | 457 | 700 | 635 | 584.2 |
| 600 | 24'' | 508 | 815 | 749.3 | 692.2 |
View product categories
Visit our homepage
View product categories
Get the best quotation
About us
Join us and become our agent
Q:When the products will be shipped ?
A:Within 7-15 days after receing the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
