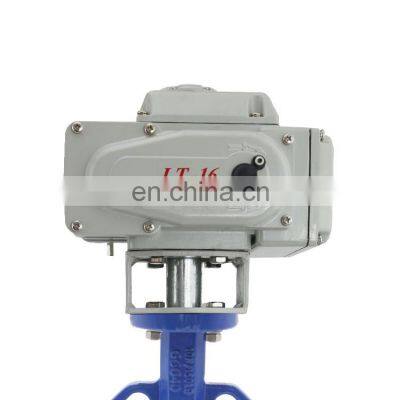

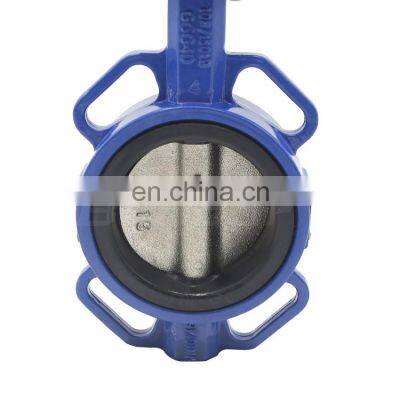

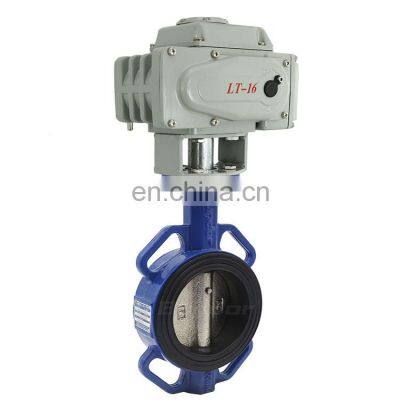

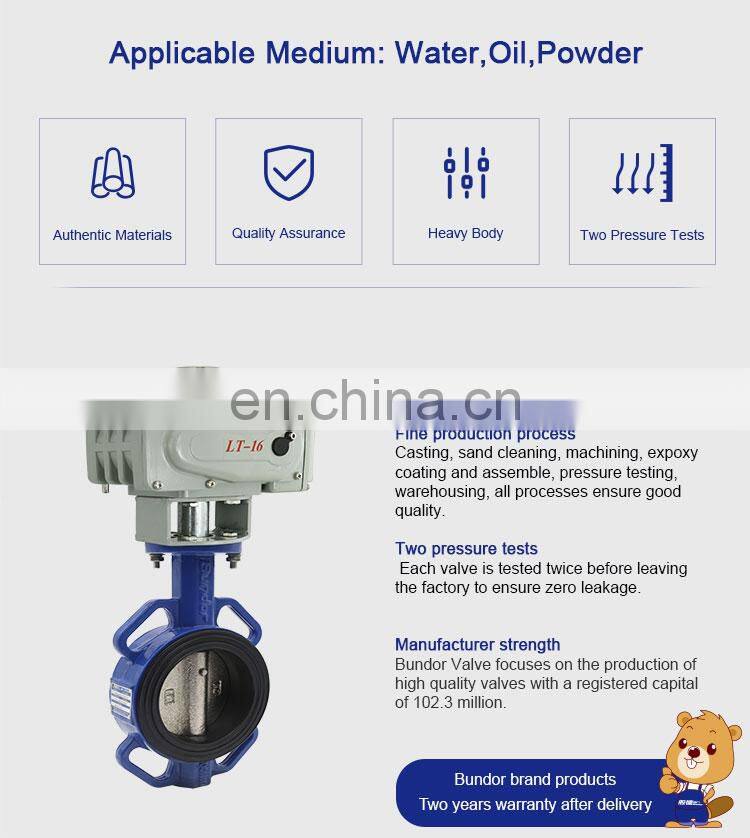

Help CenterWater Stainless Steel Manual 3 Inch Electric Wafer Butterfly Valve
Related Products
-
Bundor Dn600 Large Diameter Aeration Butterfly Valve for GasNegotiableMOQ: 1 -
Bundor PN16 WCB Double Eccentric Butterfly Valve for WaterNegotiableMOQ: 1
-
Bundor Aluminium Handle Bare Shaft Lug Butterfly Valve With Tapper PinNegotiableMOQ: 1
-
Bundor ANSI PN10 Cast Iron Worm Gear Concentric Wafer Butterfly Valve for Sea WaterNegotiableMOQ: 1
-
Bundor ASME PN25 DN50 EPDM Seat Lever Wafer Butterfly Valve for Cooling Water ManufacturerNegotiableMOQ: 1
Product Advantage:
1.The valve body uses an electrostatic powder thermal spraying process with a spray thickness of 250μm. The valve body is heated at 200°C for 3 hours, and the powder is cured at 180°C for 2 hours. After natural cooling, the surface adhesion is increased by 2 times than that of the ordinary powder, making it more environmentally friendly and weatherproof. Higher, to ensure that the valve body is not discolored for 36 months.
2.Introducing the PE heat-shrinking plastic packaging technology of electronic products. Each of the products of Bundor is individually wrapped with a heat-shrinkable film and has a built-in desiccant. The air dust is isolated to facilitate storage and avoid corrosion caused by moisture.
3.Every Bundor product has its own two-dimensional code identification from the accessories to the finished product, the unique ID number, to ensure that the product can be traced.
4.The Gende intelligent detection equipment integrates standard data measurement and pressure detection. Each inspection report is automatically generated. Each data and report is saved for 5 years, ensuring that the factory qualification rate reaches 100%.
5.Bundor brand products are underwritten by Pacific Insurance Company with 10 million quality. The warranty is 2 years. Pay two back if one bad within two years. The quality of the product is unconditional.

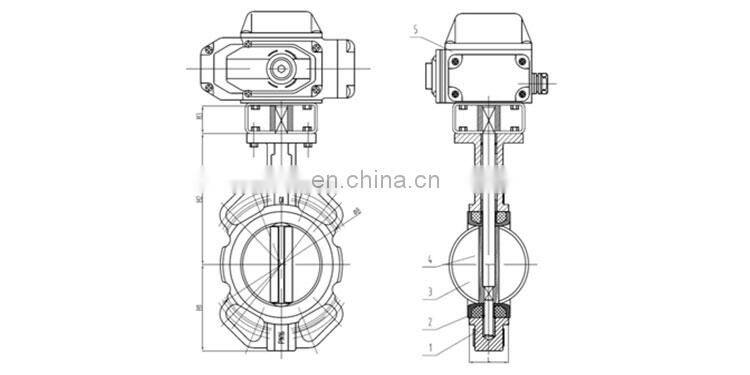

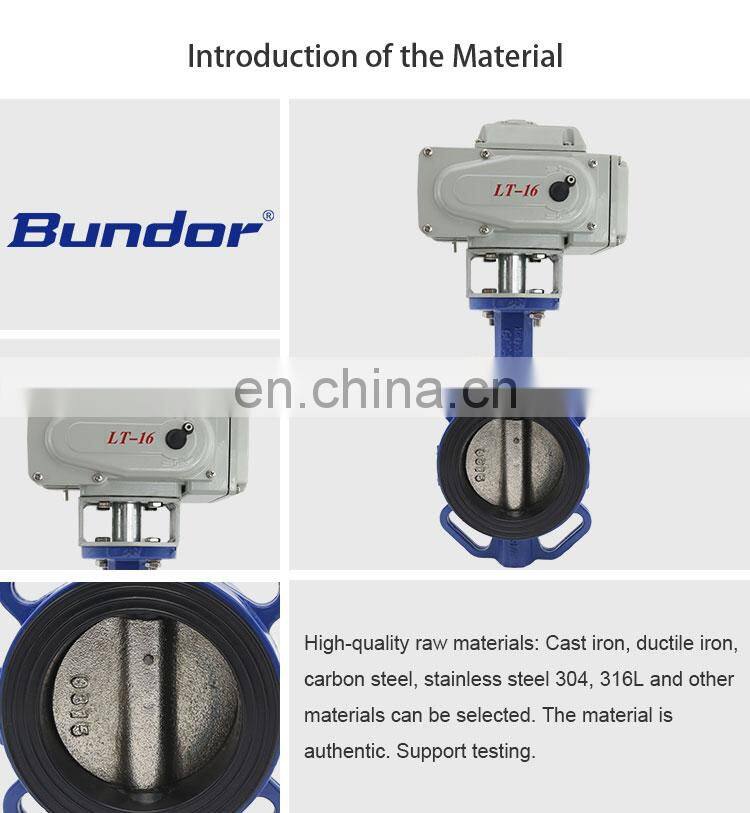

| Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Actuator | ||
| Material | DI | EPDM | DI | 410 | Electric | ||
| DN | NPS | H1 | H2 | H3 | ∅A | ∅B | L |
| DN50 | 2" | 75 | 129 | 32 | 125 | 105 | 43 |
| DN65 | 2.5" | 82 | 136 | 32 | 145 | 127 | 46 |
| DN80 | 3" | 99 | 153 | 32 | 160 | 145 | 46 |
| DN100 | 4" | 110 | 167 | 32 | 190.5 | 165 | 52 |
| DN125 | 5" | 125 | 193 | 32 | 216 | 200 | 56 |
| DN150 | 6" | 145 | 209 | 32 | 241.3 | 225 | 56 |
| DN200 | 8" | 170 | 251 | 40 | 298.4 | 280 | 60 |
| DN250 | 10" | 210 | 280 | 45 | 361.9 | 350 | 68 |
| DN300 | 12" | 240 | 315 | 45 | 431.8 | 400 | 78 |
| DN350 | 14" | 260 | 348 | 45 | 476.2 | 445 | 78 |
| DN400 | 16" | 295.5 | 392.5 | 52 | 540 | 510 | 102 |
| DN450 | 18" | 401.5 | 322.5 | 52 | 585 | 565 | 114 |
| DN500 | 20" | 451.5 | 362.5 | 64 | 650 | 620 | 127 |
| DN600 | 24" | 541.5 | 428.5 | 70 | 770 | 725 |
154 |
