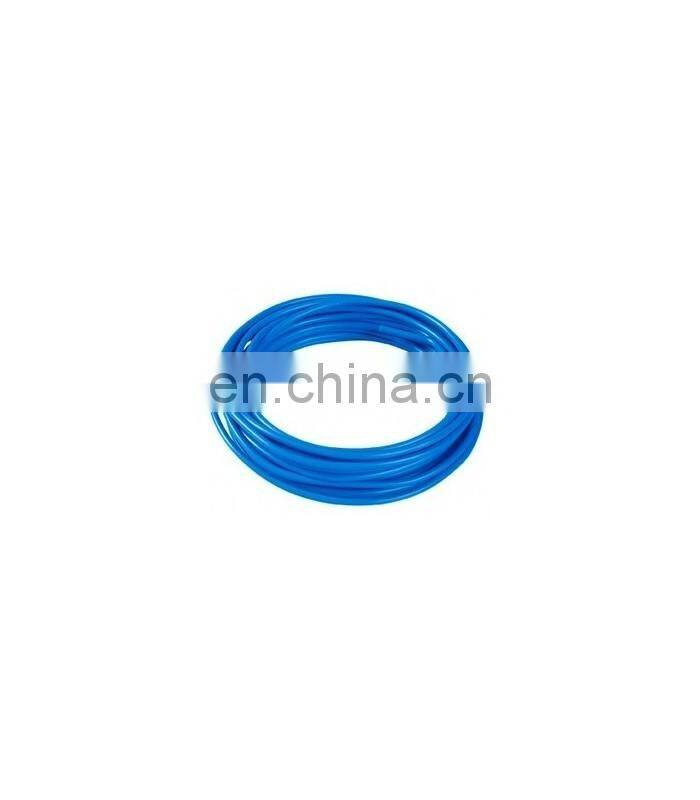

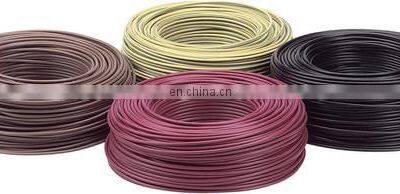

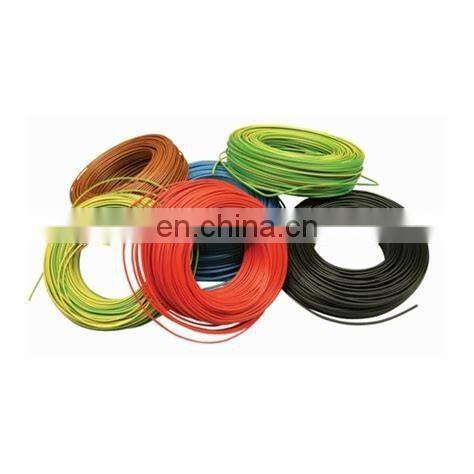

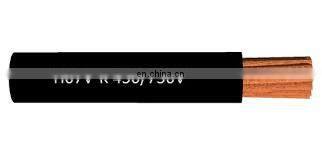

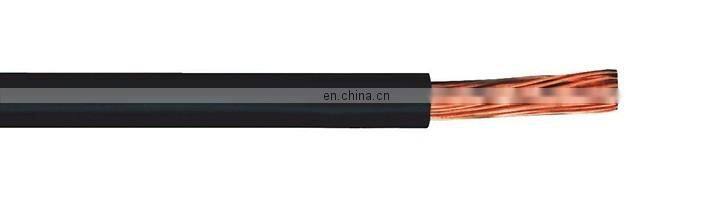

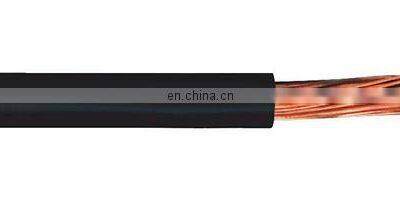

h07v k 1.5mm 2.5mm 4mm 6mm 10mm flexible cable
Application
The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less
Structure

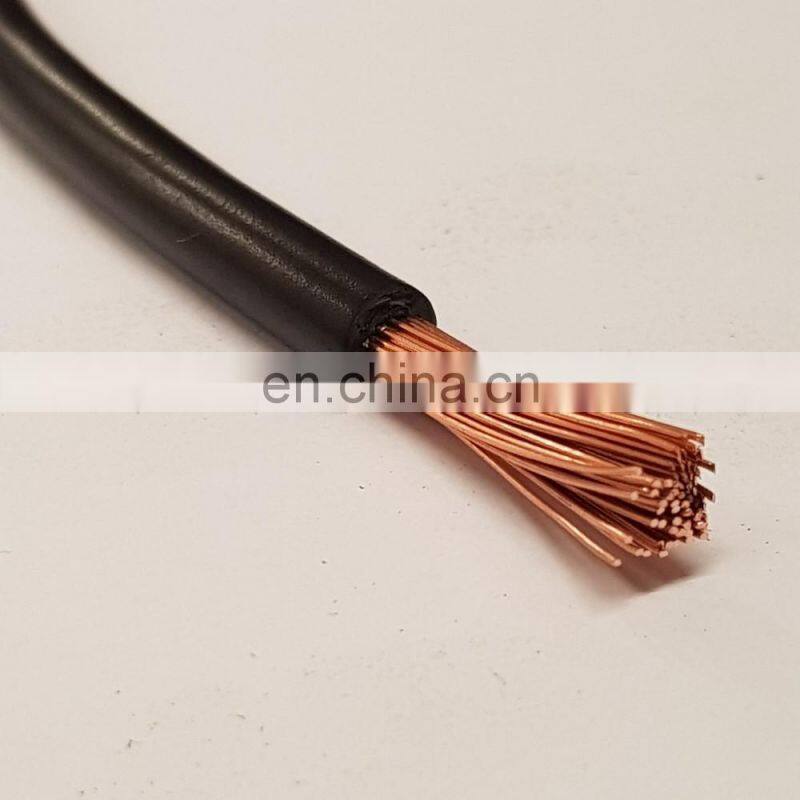

Conductor: Stranded bare copper or tinned copper in accordance with IEC 60228, VDE 0295 5 standard
Insulation: PVC/TI1 in accordance with DIN VDE 0281,Part 1. HD21.1
Color ID: in accordance with HD 402 Standard
Application Standard: HD 21.3 S3, VDE-0281 Part-3, CE Low Voltage Diretive, 73/23/EEC and 93/68/EEC
Technical Information
Rated Voltage: 450/750V
Test Voltage: 2500V in accordance with DIN VDE 0281 Part 2 HD21.2
Min. bending Radius:
-Fixed Installation: 4×D Cable OD
-Movable Installation: 8×D Cable OD
Temperature Range:
-Fixed Installation: -30 To +80℃
-Movable Installation: -5 To +70℃
*Any inquiries will be replied within 24 hours.
*OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
*High quality, reasonable and competitive price, fast lead time.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
*Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
*Strong technical support (technical data, drawing, etc.)
*Free sample is available with economic express fee.
*Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation
We provide the resonable price at high quality, if more info, please email me,
email:sales009(at)
skype:aobestcable
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires. We are a manufacturer producing wire and cables in China. Quality goes first, we pay highly attention to it. For every step we have the strict quality control and inspection. Every month we have 30containers exported and have the long term and stable customers.
Q: Could you offer the Type Test Report?
A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
Q:Have you ever supplied the cables to our country?
A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
Q: According to which standards can you produce cables?
A: -GB/T, IEC, EN.
Q: What is your MOQ?
A: -The MOQ is different, as the different cable type.
Q: Do you have ready cables?
A: -Some normal cables have the inventory, most cables are produced according to your requirements.
Q: What's the tolerance of delivery length for each coil?
A: -±0.005m.
Q: What are your main products?
A: -Our main products are the PVC insulated cable, power cable, and electric wire.
