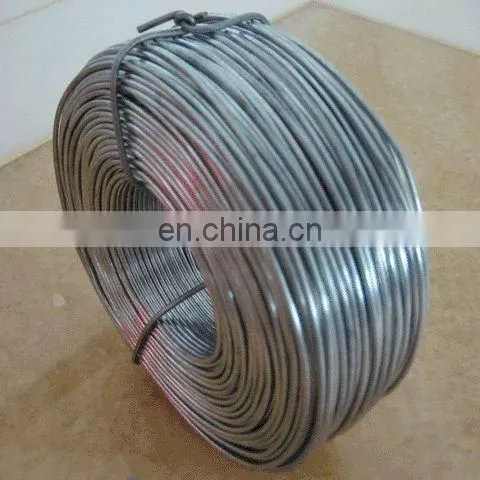

6mm Messenger Wire

6mm Messenger Wire thumbnail-1
6mm Messenger Wire photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Zhengzhou Aobest Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Specifications for Messenger Wire

galvanized steel guy wire
Excellent flexibility and softness
widely used
zinc coating 100g/m2, 200g/m2 and 300g/m2



Guy wire/stay wire/galvanized steel wire rope galvanized steel wire strand



Galvanized Steel Stay Wire
Guy and Messanger strands
Galvanized Steel Strands

Galvanized Stay Wire strands is used for transmission line poles, ACSR core,messanger, guy wire, telegraph & telephone poles,etc
Construction: 1x7 / 1x19 / 1x37
ASTM A475 / ASTM B498 / BS 183

Application: For ground / earth wire and bare conductor core ACSR, guy wire and messanger.

No. of Wires: 7

Diameter: 3/16; 7/32; 1/4; 9/32; 5/16; 3/8; 7/16; 1/2; 9/16; 5/8 Inches;





Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×7 1.60 4.8 14.07 16.53 17.87 19.28 20.68 22.09 11.17
1.80 5.4 17.81 20.93 22.62 24.40 26.18 27.96 14.14
2.00 6.0 21.99 25.84 27.93 30.13 32.32 34.52 17.46
2.20 6.6 26.60 31.26 33.78 36.44 39.10 41.76 22.77
2.30 6.9 29.08 34.17 36.93 39.84 42.75 45.66 23.09
2.60 7.8 37.17 43.60 47.20 50.92 54.63 58.30 29.51
2.90 8.7 46.24 54.33 58.72 63.36 67.97 72.60 36.71
3.00 9.0 49.48 58.14 62.84 67.79 72.74 77.68 42.38
3.20 9.6 56.30 66.15 71.50 77.13 82.76 88.39 44.70
3.50 10.5 67.35 79.14 85.85 92.27 99.00 105.74 53.48
3.80 11.4 79.39 93.28 100.82 108.76 116.70 124.64 63.04



Number
of
wires
in
strand		 Stee
wire
diameter
mm		 Norminal
diameter
of the
strand
mm		 The cross
section
area of
strand
mm 2		 Nominal tensile streng of Gal.steel wire Mpa Approximate
Weight
of stand
per
Kg/100M
1175 1270 1370 1470 1570
Breaking strength of strand KN≥
1×19 1.60 8.0 38.2 44.88 48.51 52.38 56.15 59.97 30.40
1.80 9.0 48.35 56.81 61.40 66.24 71.07 75.91 38.49
2.00 10.0 59.69 70.14 75.81 81.77 87.74 93.71 47.51
2.20 11.6 72.22 84.86 91.71 98.94 106.16 113.39 56.69
2.30 11.5 78.94 92.75 100.25 108.15 116.04 123.94 62.84
2.60 13.0 100.88 118.53 125.12 138.20 148.29 158.38 80.30
2.90 14.5 125.50 147.46 159.38 171.93 184.48 197.03 99.90
3.00 15.0 134.30 157.80 170.56 183.99 197.42 210.85 105.43
3.20 16.0 152.81 179.55 194.06 209.35 224.63 239.91 121.64
