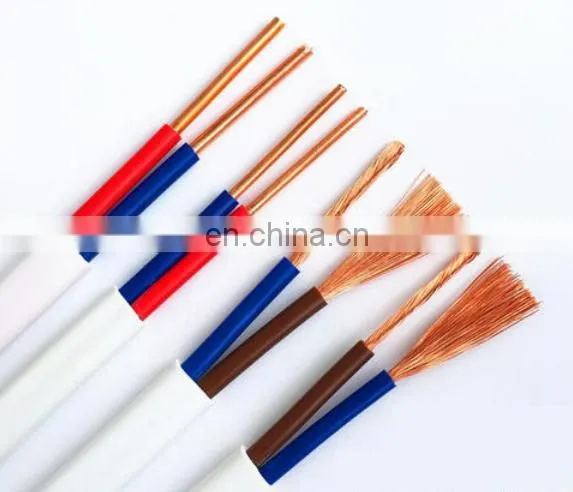

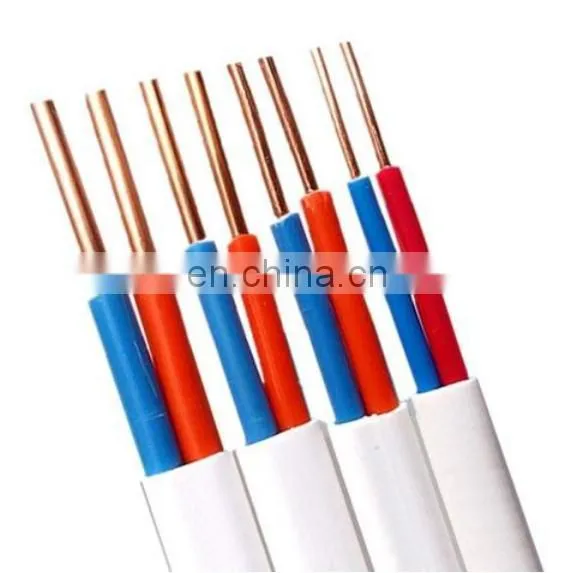

Help CenterSuccessful Sale Pvc Coated Double Core Electric Wire Under IEC
Related Products
-
Top Quality 16 mm Ground Cable With 6 mm Crimp Ring TerminalNegotiableMOQ: 1 -
UV Resistant Type RRU Shield 300V for Outdoor UV Resistant Power CableNegotiableMOQ: 1
-
Hot Selling Solar Photovoltaic Cable 6mm2NegotiableMOQ: 1
-
Buy Now Pay Later UL1015/AWM 1015 Hook up Wire 16awg PVC Insulated Electric WireNegotiableMOQ: 1
-
Buy Now Pay Later Size 1015/AWM 1015 Hook up Wire Stranded 12awg PVC Insulated Electric WireNegotiableMOQ: 1
1. Number of cores: One, two, three, four, five.
|
Type |
Name |
Usage |
|
VV |
PVC insulated PVC sheathed power cable |
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force |
|
VLV |
||
|
VY |
PVC insulated and PE sheathed power cable |
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
|
VLY |
||
|
|
PVC insulated steel belt armored and PVC sheathed power cable |
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
|
VLV22 |
||
|
VV23 |
PVC insulated steel belt armored and PE sheathed power cable |
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
|
VLV23 |
||
|
VV32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force |
|
VLV32 |
||
|
VV33 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground .Cable can under take mechanism outside force |
|
VLV33 |
||
|
VV42 |
PVC insulated thick steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground,mining well. Cable can under take mechanism outside force |
|
VLV42 |
||
|
VV43 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground,mining well and the places of be terrible polluted. Cable can under take mechanism outside force |
|
VLV43 |
The product is produced against IEC60502 and IEC60331, . And the product can be produced against the standard of BS, DIN, and the standard required by the clients.
1. The long-term permissible operation temperature of the conductor shall not be higher than 70.
2. The max temperature of the conductor of cable should less then 160 when short circuit. (less then 5 second).
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
6. Rated voltage: 0.6/1kV, 3.6/6kV.
