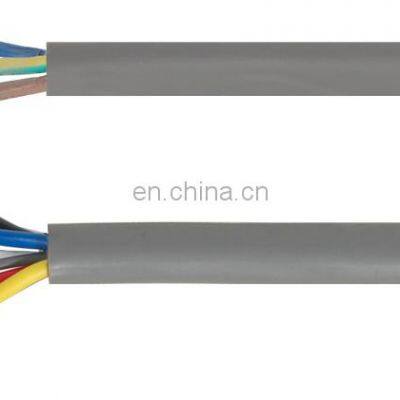

Pay Later IEC 60245 57 (YZW) 3x4mm 300/500V Rubber Insulation Flexible Cable photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Zhengzhou Aobest Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

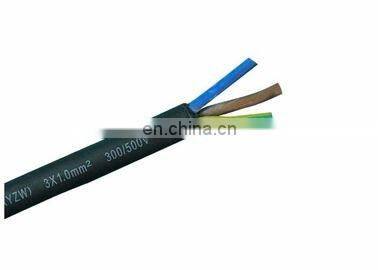

 IEC 60245 57 (YZW) 3x4mm 300/500V

Rubber Insulation flexible cable


Application
This product is suitable for rated ac voltage 450/750v or below domestic appliaces,power-operated tools and various portable electric equipments. It is also suitable for weather and oil resistance purposes.

Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.

Standrad
CE, RoHS, CCC, and more others at request.
Detailed Images


Model name and usage

Model No.
Product Name
Applications
YQ,YQW
Light model rubber sheath flexible cable
Used for light portable electric equipment and tools
YZ, YZW
Middle model rubber sheath flexible cable
Used for various portable electric equipment and tools
YC. YCW
Heavy model rubber sheath flexible cable
Used for various portable electric equipment which can bear large mechanical force effect


300/300V YQ/YQW light model

Cross-Sectional

Area mm2
Number diameter of core
Overall Diameter
Max.D.C resistance

of at 20℃

MΩ/km
Approx Weight

(kg/km)
min
max
2x0.3
16/0.15
4.3
5.8
69.2
71.2
30
31.5
2x0.5
28/0.15
4.8
6.4
39
40.1
43
45.5
3x0.3
16/0.15
4.6
6.1
69.2
71.2
36
38.5
3x0.5
28/0.15
5.1
6.7
39
40.1
74
77


300/500V YZ/YZW medium model

Cross-Sectional

Area mm2
Number diameter of core
Overall Diameter
Max.D.C resistance

of at 20℃

MΩ/km
Approx Weight

(kg/km)
min
max
Copper
Tinned-Copper
YZ
YZW
3x0.75
24/0.2
6.2
8.1
26
26.7
97.4
105
3x1
32/0.2
6.5
8.5
19.7
20
112
126
3x1.5
16/0.25
8
10.4
13.3
13.7
156
174
3x2.5
28/0.25
9.6
12.4
7.98
8.21
204
2019
3x4
56/0.3
11.3
14.5
4.95
5.09
285
302
3x6
84/0.3
12.6
16.1
3.3
3.39
398
423

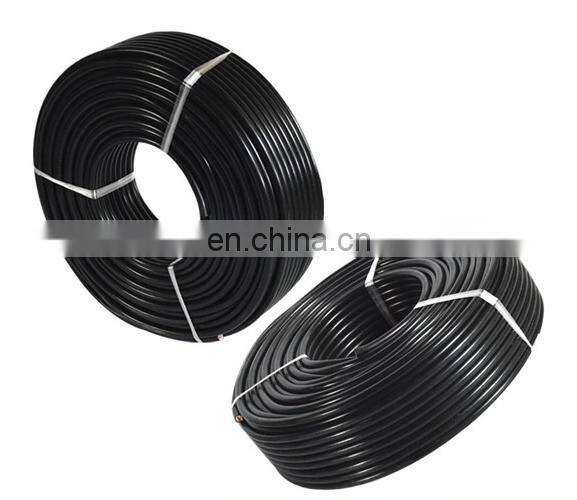

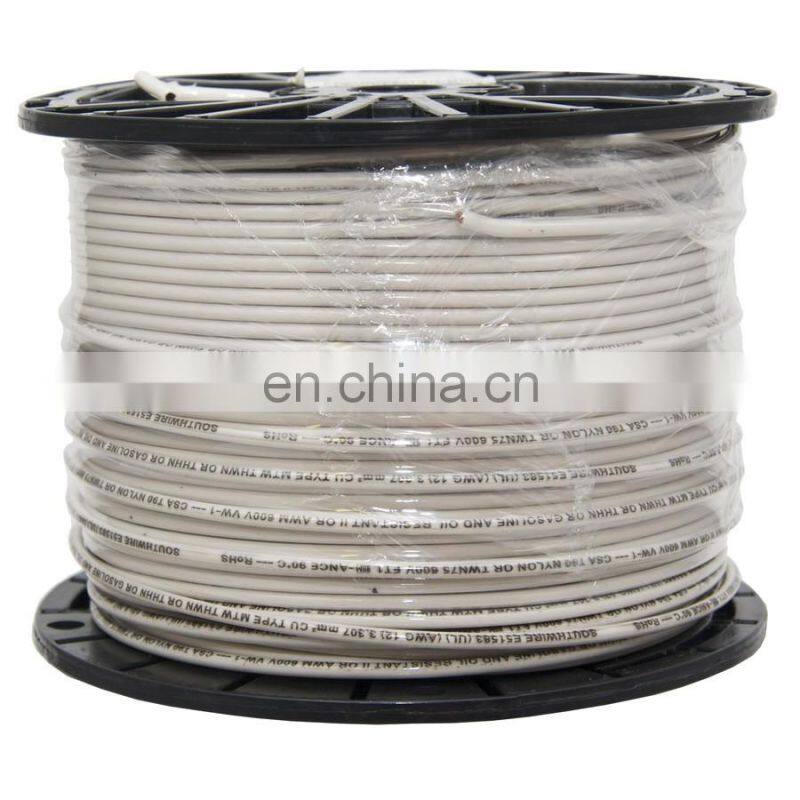

Packing & Delivery
