Power cable armored PVC insulated cable and wire
- 1000 per Month
- T/T Credit Card
- China Leading Manufacturer PVC Cable 1.5mm2 electric wire
- CHINA 0.6/1.0kv PVC insulated NYY-O cable for Poland
- Hot Sale PVC Insulated Cable 120mm2 for Tanzania
- 0.6/1kV XLPE Insulated PVC Sheathed YJV YJLV Power Cable
- copper wire aluminum wire electrical wire manufacturing plant
- Copper wire aluminum wire electrical wire roll length
Product Description
About Company:
Zhengzhou Aobest Electronic Technology Co., Ltd is a top manufacturer for Power cables and Electric wires for more than 20 years in China.
Our main products include as belows:
1: AAC, ACSR, AAAC, guy wire
2: PVC insulated power cables.
3: XLPE insulated power cables
4: Armored power cables
5: Overhead insulated cables
6: Electric wires
7: Control cables and other instrument cables

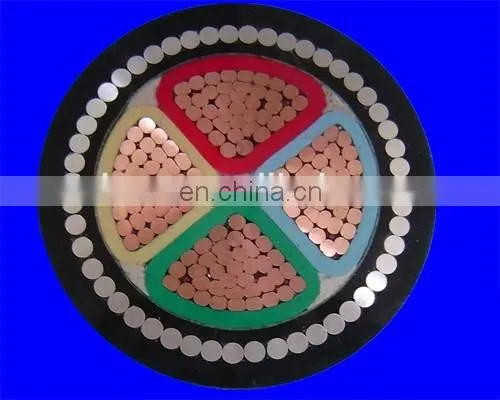

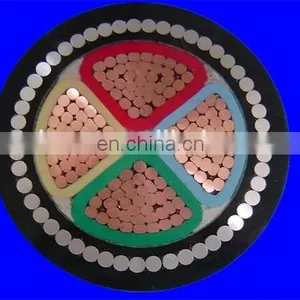

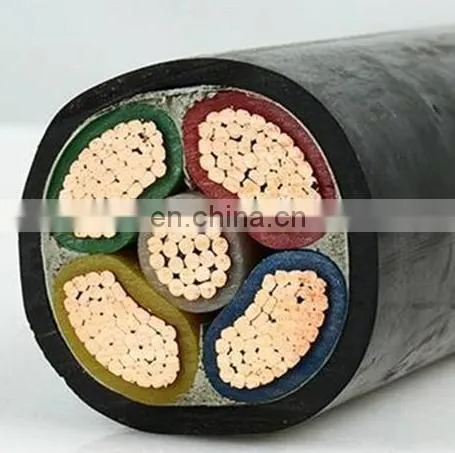

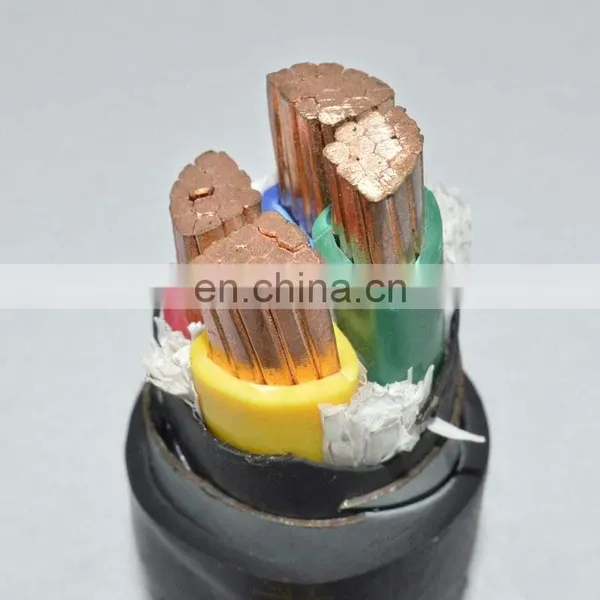

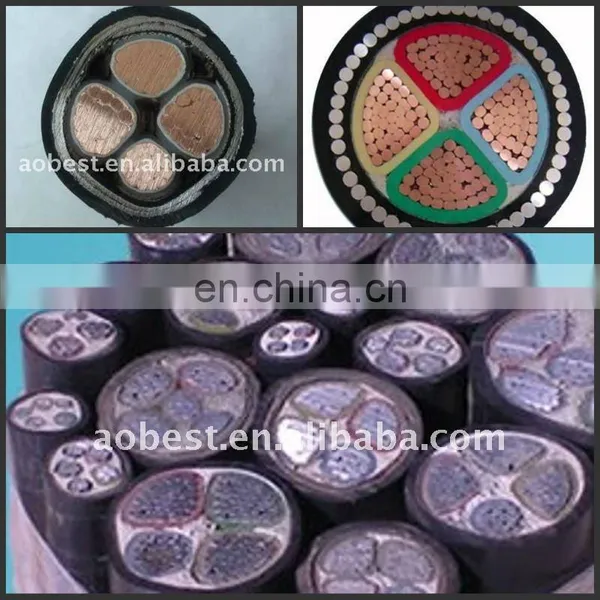

VV22 VV32 armored PVC insulated cable and wire 0.6/1KV
1.Using Feature:
(1.) The long-time working temperature of cable should not be highter than 70 °c
(2.) When core is in short-circuit(max 5s) the temperature should not exceed 160 °c.
(3) While installation the ambient temperature should not be lower than 0 °c, bending radius of the cable;
For single no-armored cable, it is not less than 20 times of outer diameter
For single-core armored cable, it is not less than 15 times of outer diameter
For multi-core no-armored cable, it is not less than 15 times of outer diameter
For multi-core armored cable, it is not less than 12 times of outer diameter.
3. Specification Size and Technical Data:
Core number |
Nominal Section(mm²) |
D.C.Resistance in 20 °c(Ω/km) |
O.D.(mm) |
Reference Weight(Kg/km) |
||
CU |
AL |
Cu |
Al |
|||
3 core |
1.5 |
17 |
— |
10.7 |
141 |
— |
2.5 |
23 |
17 |
11.5 |
180 |
134 |
|
4 |
30 |
23 |
13.6 |
255 |
183 |
|
6 |
39 |
30 |
14.9 |
341 |
228 |
|
10 |
54 |
41 |
16.3 |
470 |
285 |
|
16 |
71 |
55 |
19.6 |
697 |
363 |
|
25 |
99 |
76 |
23.4 |
1049 |
568 |
|
35 |
120 |
92 |
25.8 |
1370 |
702 |
|
70 |
186 |
143 |
28.7 |
2350 |
1031 |
|
95 |
227 |
175 |
32.8 |
3144 |
1355 |
|
120 |
262 |
203 |
34.9 |
3882 |
1624 |
|
185 |
352 |
272 |
43.9 |
5945 |
2464 |
|
240 |
420 |
324 |
49.2 |
7647 |
3132 |
|
3+1 core |
3×4+1×2.5 |
31 |
23 |
14.2 |
289 |
202 |
3×6+1×4 |
40 |
31 |
15.8 |
386 |
262 |
|
3×10+1×6 |
54 |
42 |
17.3 |
548 |
329 |
|
3×16+1×10 |
72 |
56 |
20.5 |
793 |
408 |
|
3×25+1×16 |
98 |
75 |
24.6 |
1196 |
608 |
|
3×35+1×16 |
122 |
94 |
26.9 |
1518 |
744 |
|
3×50+1×25 |
153 |
118 |
27.9 |
2032 |
931 |
|
3×95+1×50 |
231 |
178 |
35.1 |
3683 |
1583 |
|
3×120+1×70 |
267 |
207 |
37.9 |
4617 |
1924 |
|
3×150+1×70 |
315 |
242 |
41.7 |
5563 |
2306 |
|
3×185+1×95 |
362 |
279 |
46.4 |
6929 |
2854 |
If you need , contact us ,sales009(at), we will offer you a competitive price with good quality cable and wire!
1:standard export wooden drum/steel wooden drum
2: upon your request
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
- Q: Could you offer the Type Test Report?
- A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
- Q:Have you ever supplied the cables to our country?
- A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
- Q: According to which standards can you produce cables?
- A: -GB/T, IEC, EN.
- Q: What is your MOQ?
- A: -The MOQ is different, as the different cable type.
- Q: Do you have ready cables?
- A: -Some normal cables have the inventory, most cables are produced according to your requirements.
- Q: What's the tolerance of delivery length for each coil?
- A: -±0.005m.
- Q: What are your main products?
- A: -Our main products are the PVC insulated cable, power cable, and electric wire.
