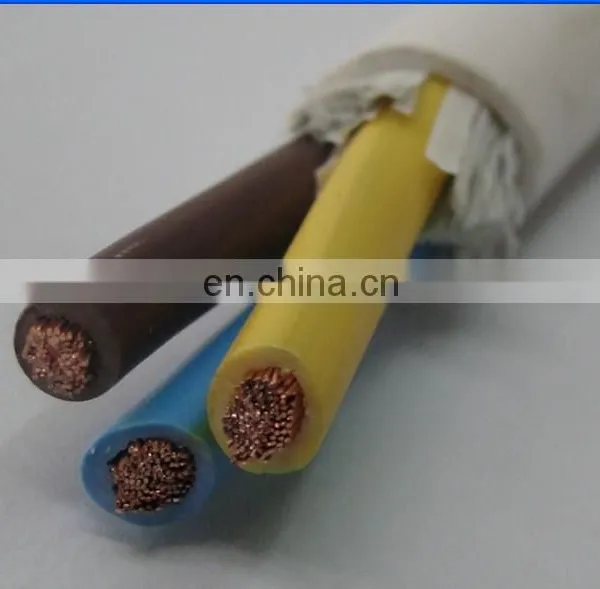

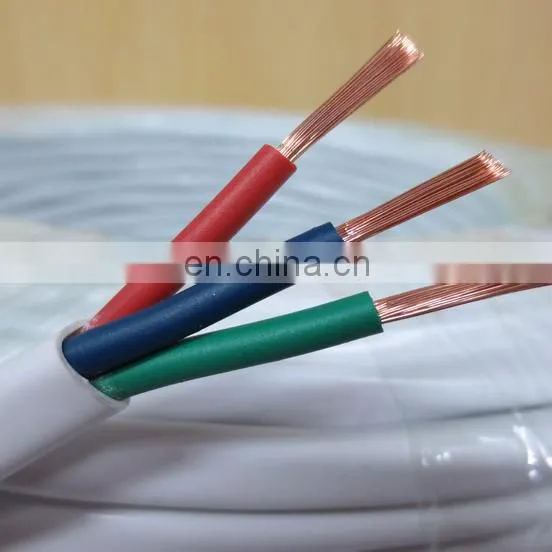

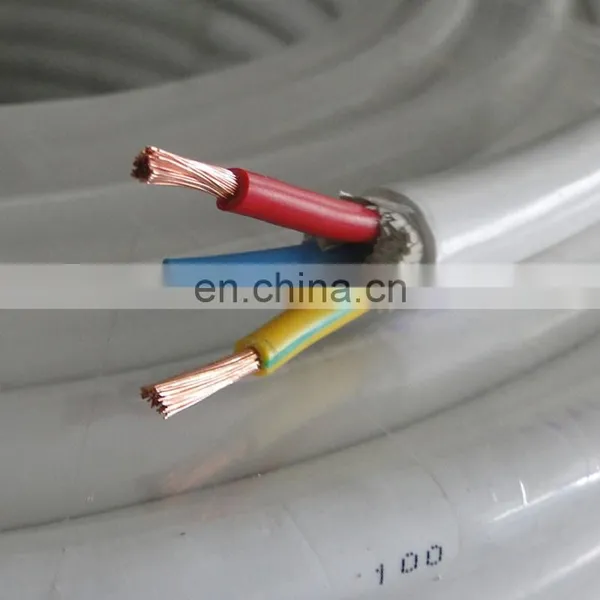

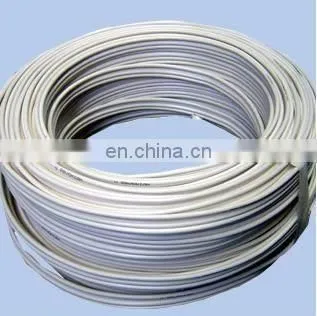

H05VV-F Flexible PVC Insulated 3x6mm2 Power Cable
Applicatiopn
The multiconductor Topflex H05VV-F cable has been specially designed for connecting small home appliances such as vacuum cleaners, washing machines, refrigerators, etc. It is recommended for household installations and can also be used for light mobile services.
Characteristics
1.Excellent Flexibility. The use of flexible copper conductors and the construction of the insulation and the outer sheath assure a high flexibility.
2.Fire Proof Properties. Its no flame propagation qualities ensure the overall safety of the installation.
Installation conditions
Nominal current capacities.
Table shows the current-carrying capacities, in permanent service, in A, in different installation conditions. The values shown are based on HD 516.
Open air installation: an ambient temperature of 30℃ is supposed and an installation which allows effective air renewal.
Voltage drop is the maximum that may occur. It is calculated to the maximum service temperature and for cosΦ=1.A single-phase circuit is supposed for two and three core cables. Three-phase circuit is supposed for four and five core cables.
-Conductor: Flexible electrolytic annealed flexible copper conductor, class 5 in accordance with IEC 60228.
-Insulation: PVC insulation type TI2, according to HD 21. The standard identification as per HD 308 is by colours.
-Outer sheath: High flexible PVC outer sheath type TM2, according to HD 21. Standard colours are grey, white and black (other colours available upon request).

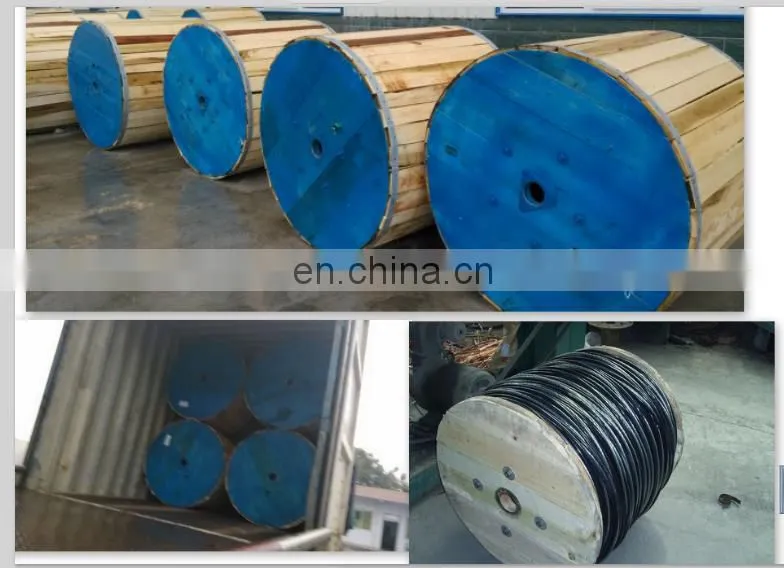

-Packaging: Available in sealed coils (50m and 100m length) and drums.
*Any inquiries will be replied within 24 hours.
*OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
*High quality, reasonable and competitive price, fast lead time.
1) All products will have been strictly Quality Checked in house before packing.

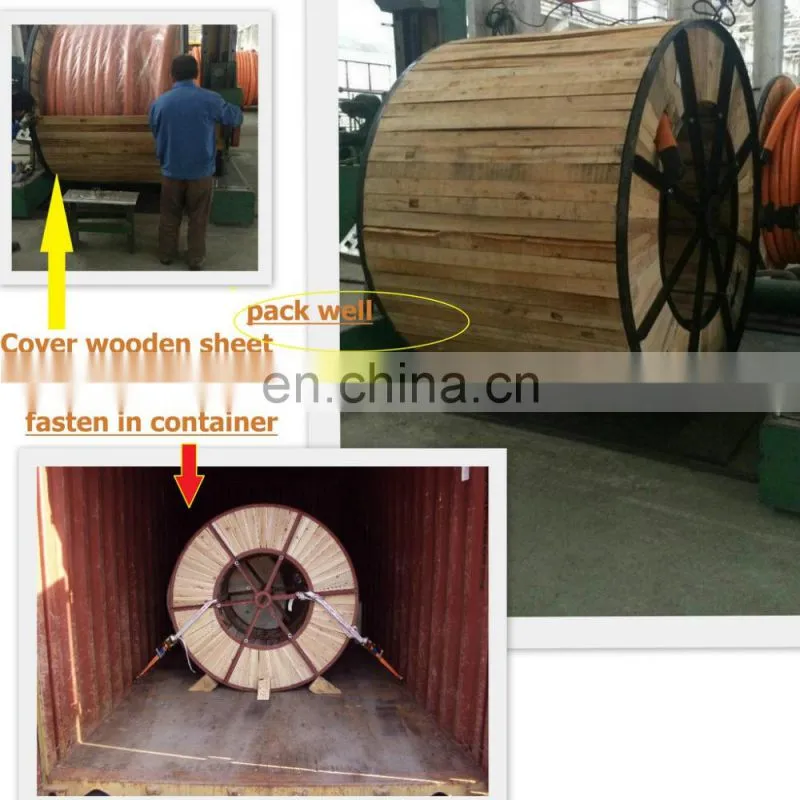

2) All products will be well packed before shipping.
*Faster delivery.:Sample order in stock, and 3-7 days for bulk production.
*Strong technical support (technical data, drawing, etc.)
*Free sample is available with economic express fee.
*Payment:We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation
We provide the resonable price at high quality, if more info, please email me,
email:sales009(at)
whatsapp:+8615717092976
wechat:15717092976
Zhengzhou Aobest Electronic Technology Co., Ltd. is a professional company, located in Zhengzhou, China. We provide power cables and wires. We are a manufacturer producing wire and cables in China. Quality goes first, we pay highly attention to it. For every step we have the strict quality control and inspection. Every month we have 30containers exported and have the long term and stable customers.
Q: Could you offer the Type Test Report?
A -Yes, we could offer the Type Test Report issued by Chinese laboratories.
Q:Have you ever supplied the cables to our country?
A: -Our cables have been supplied to many countries and regions, such as, Singapore, Taiwan, Hong Kong, Kenya, Congo, France, Cyprus, Honduras, etc.
Q: According to which standards can you produce cables?
A: -GB/T, IEC, EN.
Q: What is your MOQ?
A: -The MOQ is different, as the different cable type.
Q: Do you have ready cables?
A: -Some normal cables have the inventory, most cables are produced according to your requirements.
Q: What's the tolerance of delivery length for each coil?
A: -±0.005m.
Q: What are your main products?
A: -Our main products are the PVC insulated cable, power cable, and electric wire.
